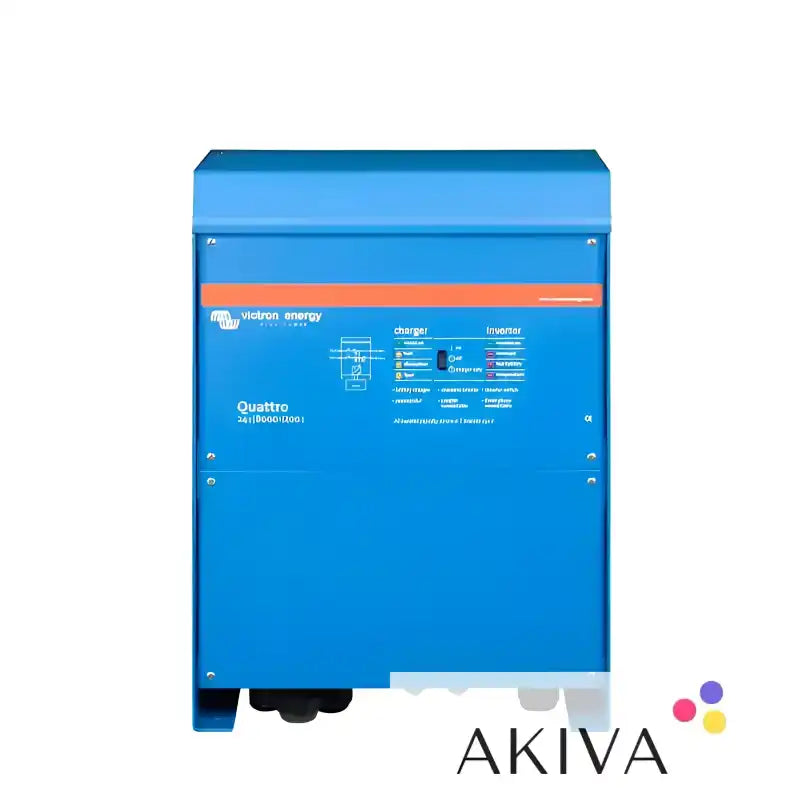

Victron Energy Quattro 24/8000/200-100/100 230V Inverter Charger – QUA248020010

Product Description

The Victron Energy Quattro 24/8000/200-100/100 VE.Bus Inverter Charger (QUA248020010) is a high-capacity inverter and battery charger designed for demanding off-grid solar systems, marine electrical installations, commercial battery storage and backup power applications.

Combining a pure sine wave inverter, an integrated 200A battery charger and an automatic transfer switch, the Quattro provides an integrated solution for managing 24V battery power and multiple AC sources. Its two independent AC inputs allow connection to supplies such as shore power and a generator, automatically selecting the available source according to the configured system settings.

With an 8,000VA inverter rating and up to 6,400W of continuous output at 25°C, this Victron Energy Quattro is designed for installations requiring substantial AC power, high-current battery charging and intelligent power management.

Key Features and Benefits

• 8,000VA inverter capacity: Provides pure sine wave 230V AC power for compatible appliances and electrical equipment.

• 200A battery charger: Delivers high-current charging for compatible 24V battery banks.

• Dual AC inputs: Automatically selects between two independent AC power sources.

• 100A AC input capacity: Each AC input supports up to its rated current, subject to installation and operating conditions.

• PowerControl: Helps prevent overloading a limited AC supply by managing battery charging demand.

• PowerAssist: Supplements a limited generator or shore power supply with battery power when additional output is required.

• Automatic transfer switching: Transfers connected loads to inverter power when the active AC supply fails.

• Two AC outputs: The main output supports continuity of supply, while the auxiliary output can be configured for loads that should operate only when an AC source is available.

• VE.Bus communications: Enables system configuration, remote monitoring and integration with compatible Victron equipment.

• Parallel and three-phase operation: Supports suitably configured multi-unit installations.

• System integration: Can be combined with compatible battery monitoring, solar charging and GX control equipment.

Technical Specifications

• Brand: Victron Energy

• Product range: Quattro

• Model: Quattro 24/8000/200-100/100

• Manufacturer part number: QUA248020010

• Product type: Inverter charger with integrated transfer switch

• Nominal battery voltage: 24V DC

• DC input voltage range: 19–33V DC

• Continuous inverter rating: 8,000VA

• Continuous output at 25°C: 6,400W

• Continuous output at 40°C: 5,500W

• Continuous output at 65°C: 3,600W

• Peak power: 16,000W

• AC output voltage: 230V AC ±2%

• Output frequency: 50Hz ±0.1%

• Output waveform: Pure sine wave

• Maximum inverter efficiency: Up to 96%

• Battery charging current: 200A

• Number of AC inputs: 2

• Maximum AC input pass-through current: 2 × 100A

• Number of AC outputs: 2

• PowerControl: Yes

• PowerAssist: Yes

• Communications interface: VE.Bus

• Remote on/off: Yes

• Programmable relay: Yes

• Protection rating: IP21

• Cooling: Fan-assisted

• Battery connections: M8 bolts

• AC connections: Bolt terminals

• Enclosure material: Aluminium

• Enclosure colour: Blue

Physical Specifications

• Dimensions (H × W × D): 470 × 350 × 280mm

• Weight: Approximately 45kg

Dimensions and weight should be confirmed against the current manufacturer's documentation for the exact supplied version.

Applications and Intended Use

Off-Grid Solar and Battery Systems

Converts energy stored in a compatible 24V battery bank into 230V AC electricity for suitable household appliances, electrical equipment and other loads. It can be integrated into a professionally designed off-grid system with compatible solar charge controllers and battery storage.

Marine and Boat Electrical Systems

Suitable for larger onboard electrical systems requiring substantial inverter capacity, high-current battery charging and automatic switching between shore power and generator supplies.

Commercial and Industrial Backup Power

Provides inverter-based AC power and battery charging for appropriately designed backup installations, workshops and remote facilities requiring substantial electrical capacity.

Remote Properties and Off-Grid Buildings

Supports battery-powered electrical systems where mains electricity is unavailable or unreliable, particularly where higher AC loads and generator integration are required.

Hybrid Energy Storage Systems

Can form part of a configured energy system incorporating battery storage, solar generation, generators and compatible Victron monitoring and control equipment.

Large Mobile and Specialist Installations

May be suitable for specialist vehicle or mobile power systems where a 24V battery architecture and the physical size, weight and power requirements of the unit are appropriate.

Installation and Compatibility

The Victron Quattro 24/8000 is designed for integration into a correctly engineered 24V DC electrical system. Its high inverter capacity and 200A charging current require careful selection of battery capacity, DC cabling, protective devices, AC distribution and ventilation.

The two AC inputs can be configured for independent supplies, such as a generator and shore power. The unit automatically selects an available source according to its configuration.

VE.Bus communications support integration with compatible Victron products and appropriately configured parallel or three-phase systems. A compatible GX device can provide additional monitoring and remote access through the Victron Remote Management (VRM) platform.

Battery chemistry and charging parameters must be configured to the battery manufacturer's requirements. Installation and commissioning should be carried out by a suitably qualified professional in accordance with the manufacturer's instructions and applicable electrical regulations.

Product Identification

• Manufacturer: Victron Energy

• Product family: Quattro

• Part number: QUA248020010

• Full model designation: Quattro 24/8000/200-100/100 230V VE.Bus

• System voltage: 24V DC

• AC output: 230V AC

• Category: Victron Energy Inverter Chargers

The Victron Energy Quattro 24/8000/200-100/100 is a high-capacity inverter charger for demanding 24V power systems, combining pure sine wave AC conversion, 200A battery charging and automatic management of two AC power sources.
