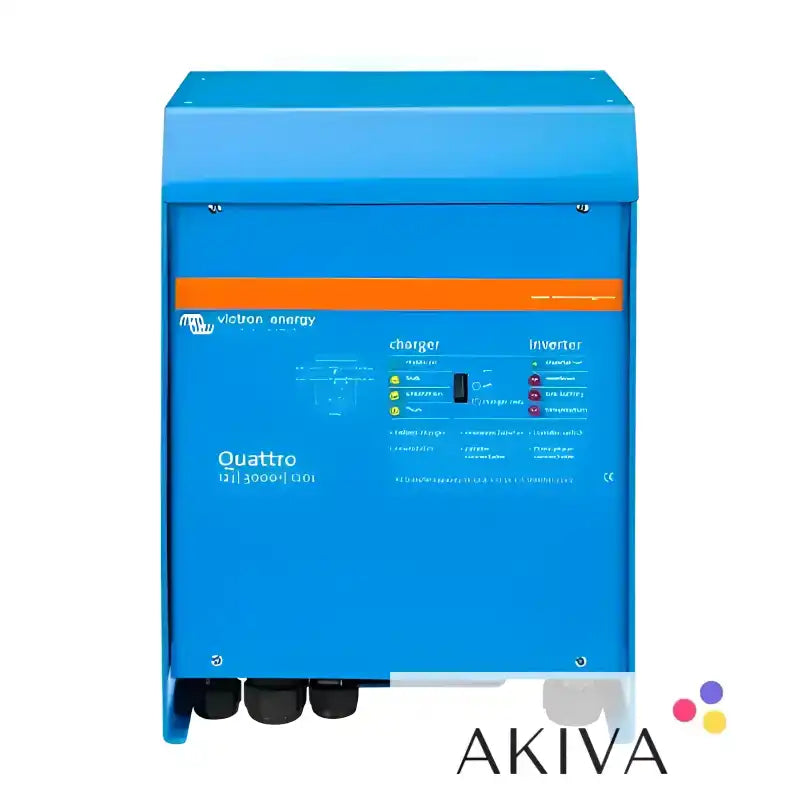

Victron Energy Quattro 12/3000/120-50/50 230V VE.Bus Inverter Charger – QUA123020010

Product Description

The Victron Energy Quattro 12/3000/120-50/50 230V VE.Bus is a high-performance inverter and battery charger designed for marine, mobile, off-grid and backup power installations. Combining a pure sine wave inverter, a powerful 120A battery charger and an integrated 50A transfer switch, it provides reliable AC power and intelligent energy management in a single unit.

Operating from a nominal 12V battery bank, the Quattro delivers 3,000VA of inverter capacity and up to 2,400W continuous active power at 25°C under specified conditions. Its advanced power management features help balance available AC input power, battery charging and connected electrical loads.

Dual AC Inputs for Flexible Power Management

One of the Quattro's defining features is its ability to accept two independent AC power sources. These could be shore power and a generator, two generators, or other suitable AC sources. The unit automatically selects the active input according to its configuration and operating conditions.

This makes the Quattro particularly useful for installations where dependable power is needed from more than one source.

Intelligent PowerControl and PowerAssist

PowerControl allows the maximum AC input current to be configured to match the available supply. The Quattro can reduce its battery charging demand to help prevent overloading a limited mains or generator connection.

PowerAssist supplements a restricted AC supply with power from the battery and inverter when connected loads temporarily require more energy than the external source can provide.

Automatic Transfer and Two AC Outputs

The integrated transfer switch automatically changes between the selected external AC source and inverter operation when required. The main AC output provides rapid changeover to help maintain power to suitable connected equipment.

A second AC output is intended for loads that should only operate when external AC power is available. This can be useful for equipment such as water heaters or air conditioning, helping prevent non-essential loads from discharging the battery when the system is running from the inverter.

Key Features and Benefits

• 3,000VA pure sine wave inverter: Supplies 230V AC power for compatible electrical equipment.

• 120A integrated battery charger: Provides high-capacity charging for suitable 12V battery systems.

• Dual AC inputs: Connect two independent AC sources, such as shore power and a generator.

• Automatic source selection: Switches to the active AC source according to system configuration.

• 50A transfer switch: Integrated AC changeover functionality for supported installations.

• PowerControl: Helps manage limited AC input capacity.

• PowerAssist: Supplements external AC power using battery energy during periods of high demand.

• Two AC outputs: Supports separation of essential loads from loads that should only run when external AC is available.

• UPS functionality: Rapid changeover helps maintain supply to compatible equipment during AC interruptions.

• VE.Bus communications: Supports configuration, monitoring and integration with compatible Victron equipment.

• Parallel operation: Multiple compatible units can be configured to increase available power.

• Three-phase system capability: Supports suitable multi-unit system configurations.

• Adaptive charging: Configurable multi-stage battery charging.

• Integrated protection: Protection features include overload, short circuit, abnormal battery voltage and excessive temperature protection.

Technical Specifications

Product identification

• Brand: Victron Energy

• Product range: Quattro

• Model: Quattro 12/3000/120-50/50 230V VE.Bus

• Manufacturer part number: QUA123020010

• Product type: Inverter, battery charger and automatic transfer switch

Inverter specifications

• Nominal battery voltage: 12V DC

• DC input voltage range: 9.5–17V DC

• Continuous apparent power at 25°C: 3,000VA

• Continuous active power at 25°C: 2,400W

• Continuous active power at 40°C: 2,200W

• Continuous active power at 65°C: 1,700W

• Peak power: 6,000W

• AC output voltage: 230V AC ±2%

• Output frequency: 50Hz ±0.1%

• Output waveform: Pure sine wave

• Maximum inverter efficiency: Approximately 93%

• Zero-load power consumption: Approximately 20W

Battery charger specifications

• Maximum battery charge current: 120A

• Nominal battery system: 12V

• Typical absorption voltage: 14.4V DC

• Typical float voltage: 13.8V DC

• Typical storage voltage: 13.2V DC

• Starter battery charging output: 4A

• Charging method: Adaptive multi-stage charging

• Battery temperature sensing: Supported, with compatible sensor

Charging voltages are typical values and may be configurable. Battery charging settings must match the battery manufacturer's recommendations and the selected battery chemistry.

AC input and transfer specifications

• AC inputs: 2 independent inputs

• AC input voltage range: 187–265V AC

• AC input frequency range: 45–65Hz

• Maximum feed-through current: 2 × 50A, subject to system configuration and installation requirements

• Integrated transfer switch rating: 50A

• AC outputs: 2

• PowerControl: Yes

• PowerAssist: Yes

• Automatic AC source selection: Yes

General specifications

• Communication interface: VE.Bus

• Cooling: Fan-assisted

• Protection rating: IP21

• Operating temperature range: -40°C to +65°C, subject to power derating

• Dimensions (H × W × D): Approximately 362 × 258 × 218mm

• Weight: Approximately 19kg

Typical Applications

The Victron Energy Quattro 12/3000/120-50/50 is designed for installations that require reliable AC power and flexible source management, including:

• Boats and marine electrical systems

• Motorhomes and specialist vehicles

• Off-grid properties and remote buildings

• Backup power and battery inverter systems

• Installations using both shore power and a generator

• Renewable energy systems with battery storage

• Mobile workshops and commercial equipment

• Systems requiring automatic switching between two AC supplies

Installation and Compatibility

The Quattro is designed for integration into a suitably engineered 12V battery-based electrical system. It can be used with compatible battery banks, shore power, generators and other Victron Energy equipment.

Correct system design is essential because the inverter can draw very high current from the 12V battery bank at substantial AC loads. Battery capacity, battery discharge limits, DC cable sizing, fusing, AC protection, earthing and ventilation must all be appropriate for the installation.

The dual AC inputs must be connected and configured correctly for the intended power sources. The second AC output should be used according to its operating characteristics and the requirements of the connected loads.

VE.Bus communications support configuration and integration with compatible Victron monitoring and control equipment. Parallel or three-phase installations require compatible equipment and the correct system configuration.

Installation and commissioning should be performed by a suitably qualified professional in accordance with Victron Energy's instructions and applicable electrical regulations.

Important product identification: QUA123020010 is the 12V, 3,000VA Quattro with a 120A battery charger, two 50A AC inputs and a 230V AC output. It is not the 24V Quattro model or a MultiPlus inverter/charger.
