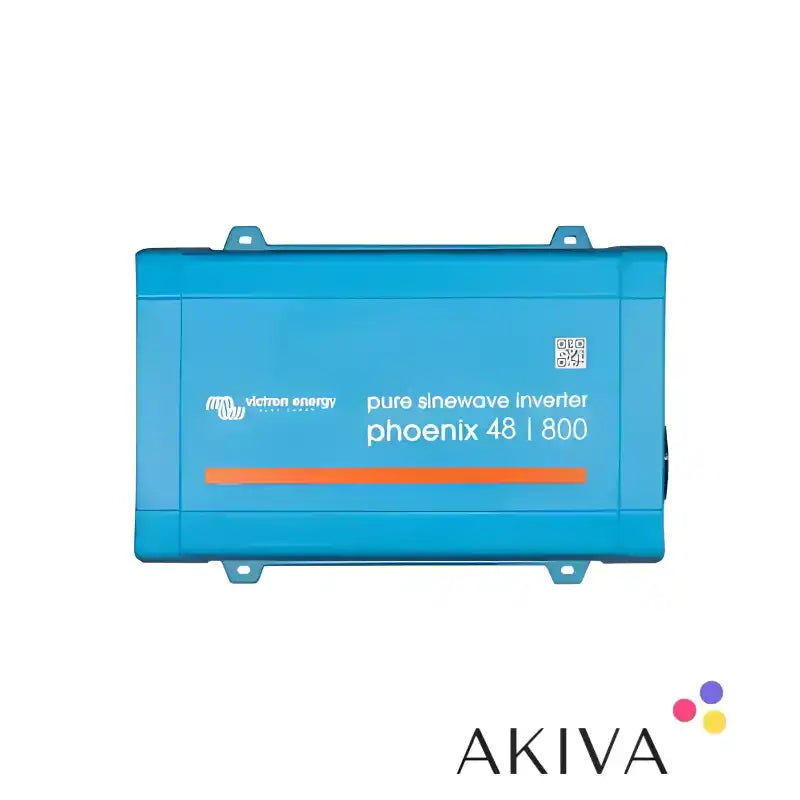

Victron Energy Phoenix Inverter 48/800 120V VE.Direct NEMA 5-15R – PIN481800500
Victron Energy Phoenix Inverter 48/800 120V VE.Direct NEMA 5-15R – PIN481800500
Couldn't load pickup availability
Product Overview
The Victron Energy Phoenix Inverter 48/800 VE.Direct (PIN481800500) is a high-quality pure sine wave inverter designed to convert 48V DC battery power into 120V AC electricity. With an 800VA continuous apparent power rating, a continuous active power output of 700W at 25°C and a peak power capability of 1500W, this inverter provides a dependable solution for powering compatible electrical equipment in off-grid, marine, mobile and standalone battery-powered installations.
Part of the trusted Victron Energy Phoenix Inverter range, the 48/800 combines efficient power conversion with configurable operating settings, electronic protection and ECO mode to help reduce standby consumption. Its integrated VE.Direct communication interface enables connection to compatible monitoring and configuration accessories, making it a versatile option for professionally designed battery systems.
Featuring a NEMA 5-15R AC output socket, this model is designed for compatible 120V electrical equipment. Its compact construction makes it suitable for installations where dependable inverter performance, efficient operation and convenient monitoring are important.
Key Features and Specifications
The Victron Energy Phoenix Inverter 48/800 VE.Direct has the manufacturer part number PIN481800500 and operates from a nominal 48V DC battery supply, with an input voltage range of 36.8–62.0V DC. It delivers 800VA continuous apparent power and 700W continuous active power at 25°C, reducing to approximately 650W at 40°C. Its peak power rating is 1500W.
The inverter produces a pure sine wave AC output designed for compatible 120V electrical equipment. Supported output settings include configurable voltage and frequency options, depending on the model's specifications. Maximum efficiency is approximately 91%, while typical no-load power consumption is around 9.5W and ECO mode consumption is approximately 3W.
Additional features include a VE.Direct communication interface, ECO mode, remote on/off capability and electronic protection against specified overload, short-circuit and overheating conditions. The unit has an IP21 ingress protection rating and an operating temperature range of approximately -40°C to +65°C, with output derating at higher temperatures.
Its approximate dimensions are 105 × 216 × 305 mm (H × W × D), and it weighs approximately 5.5 kg. The inverter is designed for standalone battery-powered installations.
Specifications can vary by product revision. Confirm the manufacturer's current datasheet when exact installation dimensions or electrical limits are critical.
Important voltage information: This is a 120V AC inverter intended for compatible North American electrical systems. It is not the standard 230V UK domestic output version. Check your equipment's voltage, frequency, plug type and power requirements before ordering.
Usage and Applications
The Victron Phoenix Inverter 48/800 converts energy stored in a 48V battery bank into 120V AC electricity for compatible appliances and electrical equipment. Its 800VA rating makes it suitable for a range of small to medium electrical loads, provided their running and startup power requirements remain within the inverter's capabilities.
In off-grid solar power systems, it converts stored battery energy into AC electricity for compatible appliances and equipment. For marine and boating installations, it can power suitable 120V electrical equipment from a 48V onboard battery system. It is also suitable for compatible mobile and specialist vehicle installations requiring auxiliary AC power from an appropriately designed 48V supply.
The inverter can be incorporated into remote power systems where conventional mains electricity is unavailable, as well as battery energy storage installations requiring DC-to-AC conversion. It may also supply compatible computers, communications equipment, electronic devices and suitable workshop tools within its rated power limits.
The inverter's 1500W peak power capability can accommodate certain short-duration startup demands. However, motors, compressors, pumps and power tools may draw considerably more current when starting than during normal operation. Always check appliance requirements before selecting an inverter.
Technical Information
Pure Sine Wave Output
The Phoenix Inverter 48/800 generates a pure sine wave AC output designed to provide clean, stable electricity for compatible electrical equipment. This makes it suitable for many electronic devices and appliances that require a high-quality AC supply.
The output voltage and frequency must match the requirements of the connected equipment to ensure safe and reliable operation.
48V DC Battery Input
Designed for nominal 48V battery systems, the inverter accepts an input voltage between 36.8V and 62.0V DC. It can be incorporated into a standalone energy installation using compatible batteries, solar charge controllers and suitable battery charging equipment.
Correct DC cable sizing, appropriate overcurrent protection and secure electrical connections are essential for safe operation. Battery capacity, inverter efficiency and the power consumption of connected appliances will influence how long the system can run.
VE.Direct Monitoring and Configuration
The integrated VE.Direct communication port enables connection to compatible Victron monitoring and configuration accessories.
Depending on the accessory and supported functions, users can access operating information and configure parameters such as low-battery alarm thresholds, shutdown and restart levels, output frequency and ECO mode settings. Compatible interfaces may be required for connection to a computer or mobile device.
ECO Mode and Energy Efficiency
ECO mode helps reduce energy consumption when the connected load is low. The inverter can enter a low-power standby state and periodically check whether the load requires power again, subject to its configured settings.
This feature is particularly useful in off-grid, marine and mobile systems where conserving battery capacity is important, especially when the inverter remains connected for extended periods.
Electronic Protection
The Victron Phoenix Inverter incorporates protection features designed to help safeguard the equipment against specified operating faults, including overload, short circuit and overheating. Configurable low-battery shutdown and restart settings help manage inverter operation according to the requirements of the battery system.
Correct installation, adequate ventilation and operation within the manufacturer's specified limits remain essential for safe and dependable performance.
Remote On/Off Control
The inverter supports remote on/off control through a compatible connection. This allows the unit to be operated using a suitable external switching arrangement, which is useful when the inverter is installed away from the main control area.
Installation Considerations
Install the inverter in a dry, adequately ventilated location in accordance with the manufacturer's instructions. Use appropriately sized battery cables, suitable DC fusing close to the battery supply and secure electrical connections.
Ensure the AC wiring, earthing arrangements and electrical protection are suitable for the installation and comply with applicable requirements.
The NEMA 5-15R output is designed for compatible 120V equipment. Do not connect 230V UK appliances directly to this inverter. This is a standalone inverter and must not be assumed to support parallel operation with additional units. Consult the manufacturer's documentation for permitted system configurations.
Why Choose Victron Energy?
Victron Energy is a recognised manufacturer of professional power conversion, battery charging and energy management equipment. Its Phoenix Inverter range is widely used in marine, mobile and off-grid installations where dependable DC-to-AC power conversion is required.
The PIN481800500 combines pure sine wave output, VE.Direct connectivity, configurable operating parameters and ECO mode in a compact unit. It is a practical choice for users seeking a Victron Energy 48V inverter for compatible 120V AC applications where reliable performance and efficient battery use are important.
Product Summary
The Victron Energy Phoenix Inverter 48/800 120V VE.Direct NEMA 5-15R (PIN481800500) is an 800VA pure sine wave inverter that converts 48V DC battery power into 120V AC electricity. With a 700W continuous output at 25°C, 1500W peak power, VE.Direct communication, ECO mode and electronic protection, it offers a versatile solution for compatible off-grid, marine and mobile power systems.
Before ordering, confirm that the 48V DC input, 120V AC output, NEMA socket and power rating are suitable for your intended application.
