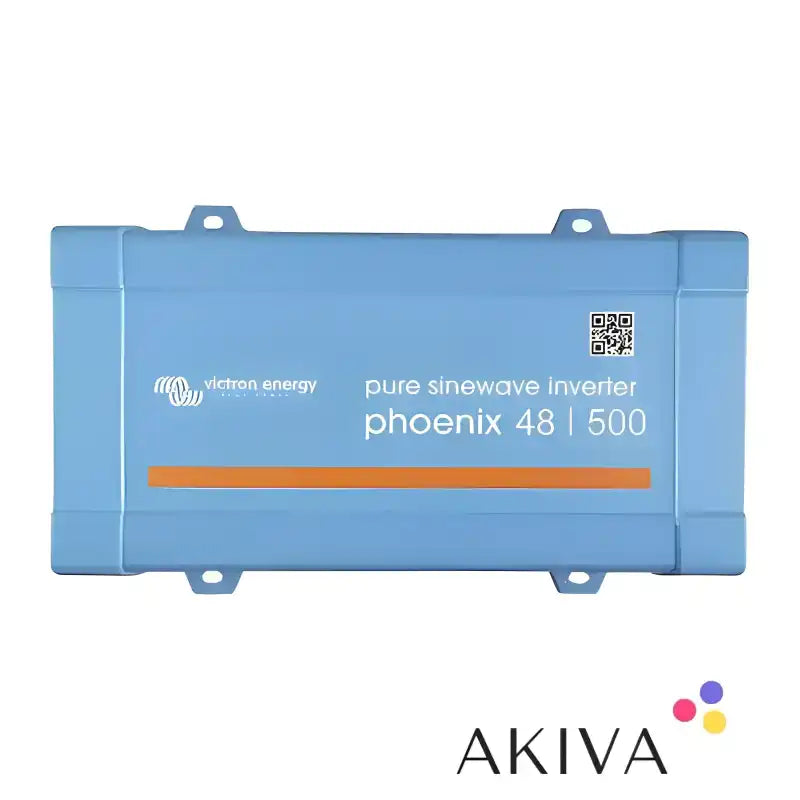

Victron Energy Phoenix Inverter 48/500 120V VE.Direct NEMA 5-15R – PIN485010500
Victron Energy Phoenix Inverter 48/500 120V VE.Direct NEMA 5-15R – PIN485010500
Couldn't load pickup availability
Product Overview
The Victron Energy Phoenix Inverter 48/500 VE.Direct (PIN485010500) is a high-quality pure sine wave inverter designed to convert 48V DC battery power into 120V AC electricity. With a continuous apparent power rating of 500VA, a continuous active power output of 400W at 25°C and a peak power capability of 900W, this compact inverter provides a dependable solution for powering compatible electrical equipment in off-grid, marine and mobile installations.
Part of the renowned Victron Energy Phoenix Inverter range, this model combines efficient power conversion, electronic protection and flexible configuration options. Its integrated VE.Direct communication port allows connection to compatible monitoring and configuration accessories, while ECO mode helps reduce energy consumption when connected loads are low.
Featuring a NEMA 5-15R AC output socket, the inverter is designed for compatible 120V electrical equipment. Its compact construction makes it a practical choice for installations where reliable inverter performance and efficient use of battery power are important.
Key Features and Specifications
The Victron Energy Phoenix Inverter 48/500 VE.Direct has the manufacturer part number PIN485010500 and operates from a nominal 48V DC battery supply, with an input voltage range of 36.8–62.0V DC. It delivers 500VA continuous apparent power and 400W continuous active power at 25°C, reducing to approximately 350W at 40°C. Its peak power rating is 900W.
The inverter produces a pure sine wave AC output at 120V, with an approximate voltage accuracy of ±3%. The specified output frequency is 60Hz ±0.1%, with adjustment available where supported. Maximum efficiency is approximately 91%, while typical no-load power consumption is around 9.5W and ECO mode consumption is approximately 3W.
Additional features include a VE.Direct communication interface, ECO mode, remote on/off capability and electronic protection against specified overload, short-circuit and overheating conditions. The unit has an IP21 ingress protection rating and an operating temperature range of approximately -40°C to +65°C, with output derating at higher temperatures.
Its approximate dimensions are 86 × 172 × 275 mm (H × W × D), and it weighs approximately 3.9 kg. The inverter is designed for standalone battery-powered installations.
Important voltage information: This is a 120V AC model intended for compatible North American electrical systems. It is not the standard 230V UK domestic output version. Check the required voltage, frequency, plug type and power rating of your equipment before ordering.
Usage and Applications
The Victron Phoenix Inverter 48/500 converts energy stored in a 48V battery bank into 120V AC electricity. It is designed for applications where a reliable supply of AC power is required without direct access to a conventional mains supply.
In off-grid solar power systems, the inverter converts stored battery energy into AC electricity for compatible appliances and equipment. For marine and boating installations, it can supply suitable 120V electrical equipment from a 48V onboard battery system. It is also suitable for compatible mobile and specialist vehicle installations requiring auxiliary AC power from an appropriately designed 48V supply.
The inverter can be incorporated into battery energy storage systems to provide AC power for compatible loads. It may also be used in remote power installations where conventional mains electricity is unavailable, or to supply suitable computers, communications equipment and other electronic devices requiring pure sine wave power.
With 400W of continuous active power at 25°C, this model can support a range of smaller electrical loads. Its 900W peak power rating provides additional short-duration capacity for certain startup demands, although the duration and suitability of surge loads depend on the connected equipment and operating conditions.
Always check the continuous running consumption and starting requirements of connected appliances. Motors, pumps, compressors and other inductive loads can require substantially more power during startup than during normal operation.
Technical Information
Pure Sine Wave Output
The Phoenix Inverter 48/500 produces a pure sine wave AC output designed to supply clean, stable electricity to compatible electrical equipment. This technology is suitable for a wide range of electronic devices and appliances when their voltage, frequency and power requirements match the inverter's output.
48V DC Battery Compatibility
This inverter is designed for nominal 48V DC battery systems, with an input voltage range of 36.8–62.0V DC. It can form part of an off-grid or standalone power system using compatible batteries and suitable charging equipment, including appropriately configured solar charge controllers.
Correct DC cable sizing, secure electrical connections and suitable overcurrent protection are essential. Battery capacity, inverter efficiency and the power demands of connected appliances will influence how long the system can operate.
VE.Direct Monitoring and Configuration
The integrated VE.Direct communication port allows the inverter to connect to compatible Victron monitoring and configuration accessories. Depending on the interface and supported functions, users can access operating information, alarms and configurable parameters.
Available settings may include low-battery alarm thresholds, shutdown and restart levels, dynamic low-voltage cut-off and ECO mode operation, subject to the product's supported functions. Compatible accessories may be required to connect the inverter to a computer or mobile device.
ECO Mode and Energy Saving
ECO mode helps reduce battery consumption when the connected load is low. When the load falls below the configured threshold, the inverter can enter a low-power standby state and periodically check whether the load requires power.
This feature is particularly useful in off-grid and mobile installations where conserving stored battery energy is important, especially when the inverter remains connected for extended periods.
Battery Protection and Electronic Safety
The Victron Phoenix Inverter incorporates electronic protection against specified operating faults, including overload, short circuit and overheating. Configurable low-battery shutdown and restart settings help users manage inverter operation according to the requirements of the battery system.
Correct installation and operation within the manufacturer's specified limits remain essential for safe and dependable performance.
Remote On/Off Control
The inverter supports remote on/off control through a compatible connection. This allows it to be switched using an appropriate external control arrangement, which can be useful when the inverter is installed in a compartment or equipment area away from the main control panel.
Installation Requirements
Install the inverter in a dry, suitably ventilated location and follow the manufacturer's installation instructions. Use appropriately sized battery cables, suitable fusing close to the battery supply and secure DC connections.
Ensure that the AC wiring, earthing arrangements and electrical protection are appropriate for the installation and comply with applicable requirements.
The NEMA 5-15R output is designed for compatible 120V equipment. Do not connect 230V UK appliances directly to this inverter. This model is a standalone inverter and should not be assumed to support parallel operation with additional inverters. Check the manufacturer's documentation for permitted system configurations.
Why Choose Victron Energy?
Victron Energy is a recognised manufacturer of professional power conversion, battery charging and energy management equipment. Its Phoenix Inverter range is widely used in marine, mobile and off-grid applications where reliable DC-to-AC power conversion is required.
The PIN485010500 combines pure sine wave output, VE.Direct connectivity, configurable battery protection and ECO mode in a compact inverter designed for compatible 48V battery systems. It is a practical choice for users who require dependable 120V AC power in a standalone installation, with monitoring and energy-saving features to support efficient system operation.
Product Summary
The Victron Energy Phoenix Inverter 48/500 120V VE.Direct NEMA 5-15R (PIN485010500) is a 500VA pure sine wave inverter that converts 48V DC battery power into 120V AC electricity. With 400W continuous active power at 25°C, 900W peak power, ECO mode, VE.Direct communication and configurable battery protection, it provides a dependable solution for compatible off-grid, marine and mobile power applications.
Choose this model when you need a compact Victron Energy 48V inverter for a 120V electrical system and have confirmed that its power rating, output voltage and electrical specifications meet your requirements.
