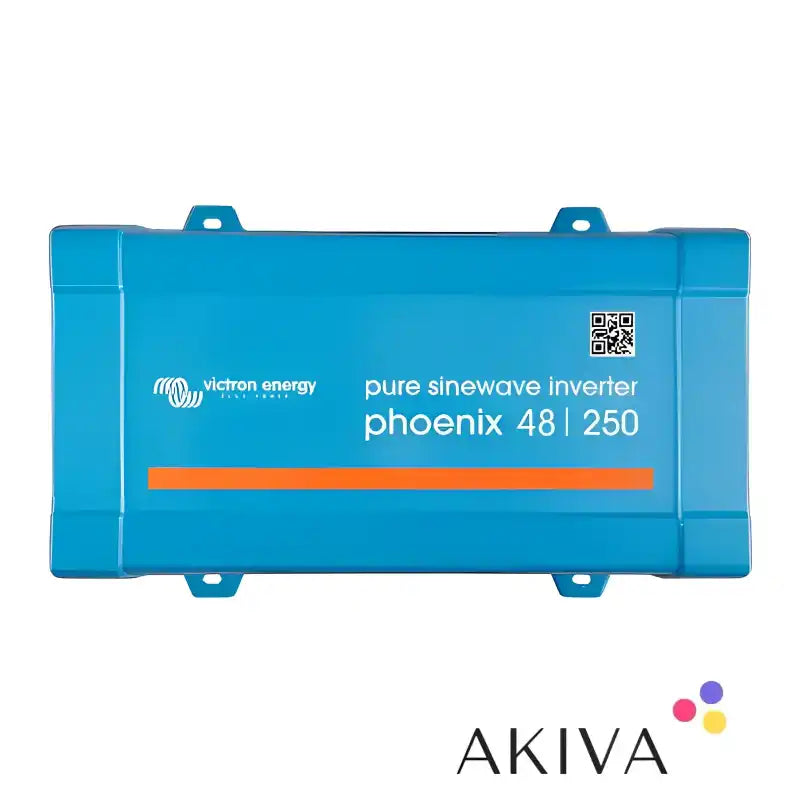

Victron Energy Phoenix Inverter 48/250 120V VE.Direct NEMA 5-15R – PIN482510500
Victron Energy Phoenix Inverter 48/250 120V VE.Direct NEMA 5-15R – PIN482510500
Couldn't load pickup availability
Product Overview
The Victron Energy Phoenix Inverter 48/250 VE.Direct (PIN482510500) is a compact, high-quality pure sine wave inverter designed to convert 48V DC battery power into 120V AC electricity. With a 250VA power rating, it is ideal for smaller electrical loads in compatible off-grid, marine, mobile and battery-powered installations.
Featuring a North American NEMA 5-15R AC output socket, the Victron Phoenix 48/250 provides a practical solution for powering compatible 120V electrical equipment from a 48V battery bank. Its pure sine wave output delivers clean, stable AC power for suitable electronic devices and small appliances.
The integrated VE.Direct communication port enables connection to compatible monitoring and configuration accessories, providing access to supported operating information and adjustable settings. With ECO mode, remote on/off capability and electronic protection features, this Victron Energy inverter is designed for dependable performance in compact power systems.
Key Features and Specifications
Manufactured by Victron Energy, the Phoenix Inverter 48/250 VE.Direct has the product code PIN482510500 and is designed for DC-to-AC power conversion. It operates from a nominal 48V DC battery supply, with an input voltage range of 36.8–62.0V DC, and provides a 120V AC output through a NEMA 5-15R socket.
The inverter delivers 250VA of continuous apparent power and 200W of continuous active power at 25°C, with a peak power rating of 400W. Its pure sine wave output is designed for compatible electrical equipment, while selectable 50Hz or 60Hz output frequency supports different electrical requirements.
Additional features include a VE.Direct communication interface, ECO mode with automatic load sensing, remote on/off capability and electronic protection against specified overload, short-circuit and overheating conditions. The inverter has a maximum efficiency of approximately 88%, an IP21 protection rating and a compact design suitable for installations where space is limited.
Its approximate dimensions are 86 × 165 × 260 mm (H × W × D), and it weighs approximately 2.4 kg.
Voltage compatibility: This is a 120V AC inverter designed for compatible North American electrical equipment. It is not the standard 230V UK domestic output model. Confirm the voltage, frequency and plug requirements of your appliances before purchasing.
Technical Specifications
The Victron Energy PIN482510500 is a pure sine wave DC-to-AC inverter with a nominal battery voltage of 48V DC and an operating input range of 36.8–62.0V DC. It provides 250VA continuous apparent power and 200W continuous active power at 25°C, reducing to approximately 175W at 40°C. Its peak power rating is 400W.
The AC output voltage is 120V, with an approximate output voltage accuracy of ±3% and a selectable output frequency of 50Hz or 60Hz. Maximum conversion efficiency is approximately 88%. Typical idle consumption is approximately 7.9W, while ECO mode can reduce consumption to around 2.5W, depending on operating conditions.
The inverter features a NEMA 5-15R AC output socket, a VE.Direct communication port and an IP21 protection rating. Its approximate dimensions are 86 × 165 × 260 mm, and its weight is approximately 2.4 kg.
Specifications should be verified against the applicable manufacturer datasheet and product revision before installation.
Usage and Applications
The Victron Phoenix Inverter 48/250 converts electricity stored in a 48V battery bank into 120V AC power for compatible equipment. It is particularly suitable for installations requiring a compact inverter to supply smaller electrical loads without the need for a larger, higher-capacity unit.
In off-grid power systems, it can provide AC electricity from a 48V battery bank in standalone energy installations. For marine and boating applications, it can power compatible small electrical devices aboard vessels equipped with a suitable 48V battery system. It is also suitable for specialist vehicles and mobile installations requiring auxiliary AC power from a compatible battery supply.
The inverter can be incorporated into battery energy storage systems to convert stored DC energy into AC electricity for suitable loads. It may also be used in remote installations where conventional mains electricity is unavailable, or to power compatible electronic equipment requiring a suitable pure sine wave supply.
Always check the continuous power requirements of connected equipment. Appliances containing motors, compressors or other components with high starting currents may exceed the inverter's available output, even when their normal running consumption appears low.
Technical Information
Pure Sine Wave Technology
The Phoenix 48/250 produces a pure sine wave AC output designed to provide clean power for compatible electronic equipment and electrical appliances. This waveform is suitable for many types of sensitive electronics when the voltage, frequency and power requirements are correctly matched.
48V Battery Input
This model is designed for 48V nominal battery systems, with an operating input voltage range of 36.8–62.0V DC. It can form part of a suitably designed battery installation supplied by compatible charging equipment, including appropriate solar charging systems.
Correct DC cable sizing, suitable overcurrent protection, secure electrical connections and appropriate battery management are essential for safe and reliable operation.
VE.Direct Communication Interface
The integrated VE.Direct port provides a communication connection for compatible Victron monitoring and configuration accessories. With the appropriate interface, supported settings and operating information can be accessed using compatible devices and software.
Depending on the product's supported functions, available configuration options may include low-battery alarm and shutdown thresholds, restart levels, ECO mode settings and output frequency.
ECO Mode for Reduced Standby Consumption
ECO mode helps reduce energy consumption when the connected load is low. The inverter can enter a standby state and periodically check whether the load requires power again. This feature is particularly useful in battery-powered systems where conserving stored energy is important.
Electronic Protection and Reliability
The Phoenix Inverter range incorporates protection against specified overload, short-circuit and overheating conditions. These features help protect the inverter during certain abnormal operating conditions, although correct installation and operation within the manufacturer's limits remain essential.
Adequate ventilation, correctly sized cables and appropriate electrical protection are important for dependable performance.
Remote On/Off Control
The inverter supports a remote on/off connection, allowing compatible external switching arrangements to control its operation. This can be useful in installations where the inverter is mounted away from the main control panel or where centralised system control is required.
Installation Considerations
Install the inverter in a suitable, dry and ventilated location in accordance with the manufacturer's instructions. Ensure that the battery system, DC wiring, fusing, AC connections and earthing arrangements are appropriate for the application.
The NEMA 5-15R socket is intended for compatible 120V equipment. Do not connect 230V UK appliances unless a properly engineered system provides the required voltage and appropriate electrical protection.
Why Choose Victron Energy?
Victron Energy is an established manufacturer of professional power electronics and energy management equipment for marine, mobile and off-grid applications. Its Phoenix Inverter range combines pure sine wave technology with practical monitoring, configuration and protection features.
The PIN482510500 is a practical choice for users seeking a compact 48V to 120V pure sine wave inverter with a 250VA rating and VE.Direct connectivity. Its ECO mode and remote on/off capability make it suitable for compatible smaller-load applications where efficient battery use and convenient system control are important.
Product Summary
The Victron Energy Phoenix Inverter 48/250 120V VE.Direct NEMA 5-15R (PIN482510500) is a compact inverter designed to convert 48V DC battery power into 120V AC electricity. Offering 250VA apparent power, 200W continuous active power at 25°C, a 400W peak rating, ECO mode and VE.Direct communication, it is designed for compatible battery-powered, marine, mobile and off-grid installations.
With its compact construction, integrated electronic protection and energy-saving features, this Victron Energy inverter provides a practical solution for smaller power systems requiring reliable AC conversion. Choose this model when its voltage, output capacity and electrical specifications meet the requirements of your installation.
