Victron

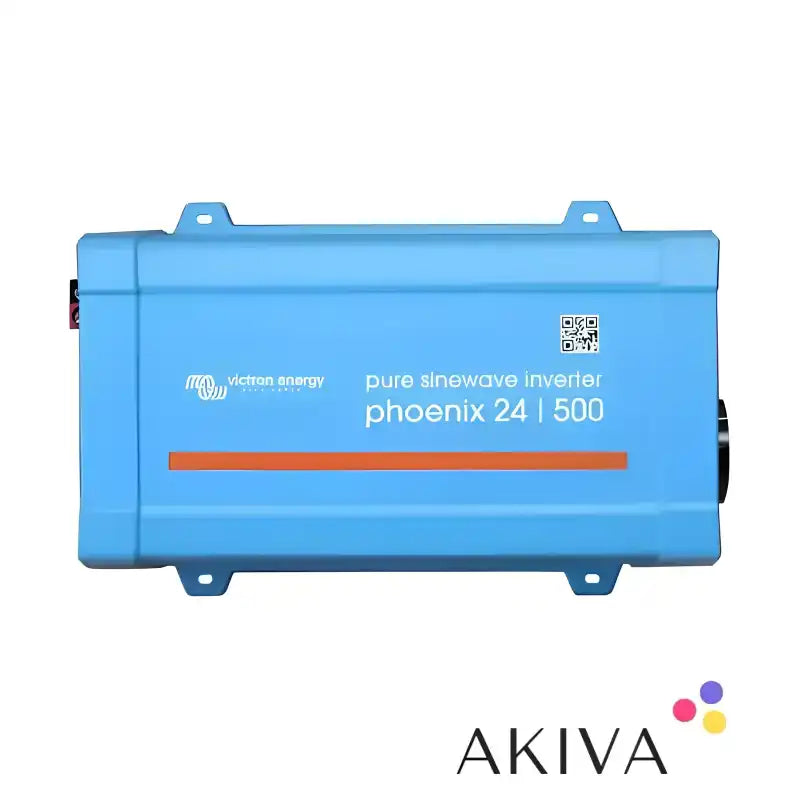

Victron Energy Phoenix Inverter 24/500 120V VE.Direct – PIN245010510

Victron Energy Phoenix Inverter 24/500 120V VE.Direct – PIN245010510

Regular price £104.33 GBP
Regular price £165.60 GBP Sale price £104.33 GBP
Sale Sold out
Taxes included. Shipping calculated at checkout.

Product Overview

The Victron Energy Phoenix Inverter 24/500 VE.Direct (PIN245010510) is a compact, high-quality pure sine wave inverter designed to convert 24V DC battery power into 120V AC electricity. With a 500VA power rating, it provides a reliable solution for powering compatible electrical equipment from a battery-based power system.

Designed for North American electrical applications, this model features a 120V AC output with a GFCI-protected NEMA socket configuration. Its compact design makes it suitable for installations where space is limited, including marine applications, specialist vehicles and off-grid power systems using a 24V battery supply.

Victron Energy is renowned for its dependable power electronics, and the Phoenix Inverter range is designed to deliver efficient operation, intelligent battery protection and flexible system integration.

Key Features and Specifications

Manufactured by Victron Energy, the Phoenix Inverter 24/500 VE.Direct has the product code PIN245010510 and is designed for DC-to-AC power conversion. It operates from a nominal 24V DC battery supply and provides a 120V AC output with a continuous apparent power rating of 500VA. Its pure sine wave technology delivers a smooth AC waveform, while the VE.Direct communication interface supports integration with compatible monitoring and configuration equipment.

The inverter features a GFCI-protected NEMA AC output and a compact, lightweight construction. Its approximate dimensions are 85 × 182 × 274 mm (H × W × D), and it weighs approximately 3.9 kg. It is intended for compatible 24V battery-powered electrical systems, including suitable off-grid and mobile installations.

Important: This is a 120V AC model intended for compatible electrical systems. It is not the standard 230V UK domestic output version. Always check the required voltage, frequency and appliance compatibility before purchasing.

Usage and Applications

The Victron Phoenix Inverter 24/500 is designed for applications where 24V battery power needs to be converted into usable AC electricity. It can form part of a standalone power system supplied by batteries, with charging provided by a suitable mains battery charger, generator or solar charging system.

In marine and boating applications, the inverter can supply compatible 120V AC equipment from a 24V onboard battery bank. For off-grid installations, it can provide AC power for smaller electrical loads where conventional mains electricity is unavailable. It is also suitable for compatible specialist vehicles and mobile power systems requiring auxiliary AC electricity.

In battery-based energy storage systems, the inverter converts stored DC energy into AC power for suitable appliances and equipment. It can also be used in remote installations where a dependable battery-powered electricity supply is required.

When selecting an inverter, consider both the continuous power consumption and the startup requirements of the connected equipment. Motors, pumps and other inductive loads may require considerably more power during startup than during normal operation.

Technical Information

Pure Sine Wave Output

Pure sine wave technology produces a smooth AC waveform designed to provide power for a wide range of compatible electrical equipment. Matching the inverter's output voltage and frequency to the requirements of the connected appliances is essential for safe and reliable operation.

24V DC Battery Input

This inverter is designed to operate from a nominal 24V battery system. Correct battery cabling, suitable overcurrent protection and secure electrical connections are essential because inverter input currents can be substantial, even when supplying relatively modest AC loads.

VE.Direct Communication Interface

The VE.Direct interface allows compatible monitoring and configuration equipment to communicate with the inverter. Depending on the connected accessories and supported functions, this interface can help users access operating information and adjust available settings.

Electronic Protection

Victron Phoenix inverters incorporate protection features designed to help safeguard the inverter and connected system against specified electrical operating faults. Correct installation, adequate ventilation, appropriate cable sizing and suitable battery protection remain essential for dependable operation.

Installation Considerations

Install the inverter in a dry, adequately ventilated location in accordance with the manufacturer's installation requirements. Use correctly sized DC cables and appropriate fusing close to the battery supply. Ensure that the AC installation, earthing arrangements and GFCI protection comply with the requirements applicable to the system and installation location.

Why Choose Victron Energy?

Victron Energy is a recognised manufacturer of professional power conversion and energy management equipment. Its Phoenix Inverter range is widely used in marine, mobile and standalone energy applications where dependable battery-to-AC power conversion is required.

The PIN245010510 provides a compact 24V inverter solution for users who need pure sine wave output in a compatible 120V electrical system. Its VE.Direct communication interface and GFCI-protected NEMA output make it a practical option for suitable applications where reliable power conversion and system integration are important.

Product Summary

The Victron Energy PIN245010510 Phoenix Inverter 24/500 VE.Direct is a 500VA pure sine wave inverter designed for 24V DC battery systems requiring 120V AC output. Combining compact construction, VE.Direct connectivity and a GFCI-protected NEMA output, it is suited to compatible marine, mobile and off-grid installations.

Choose this Victron Energy 24V inverter when you require a reliable power conversion solution for a 120V AC application and have confirmed that its power rating and electrical specifications meet your system requirements.

SKU:PIN245010510
