Ph. Inverter 24/5000 230V Smart

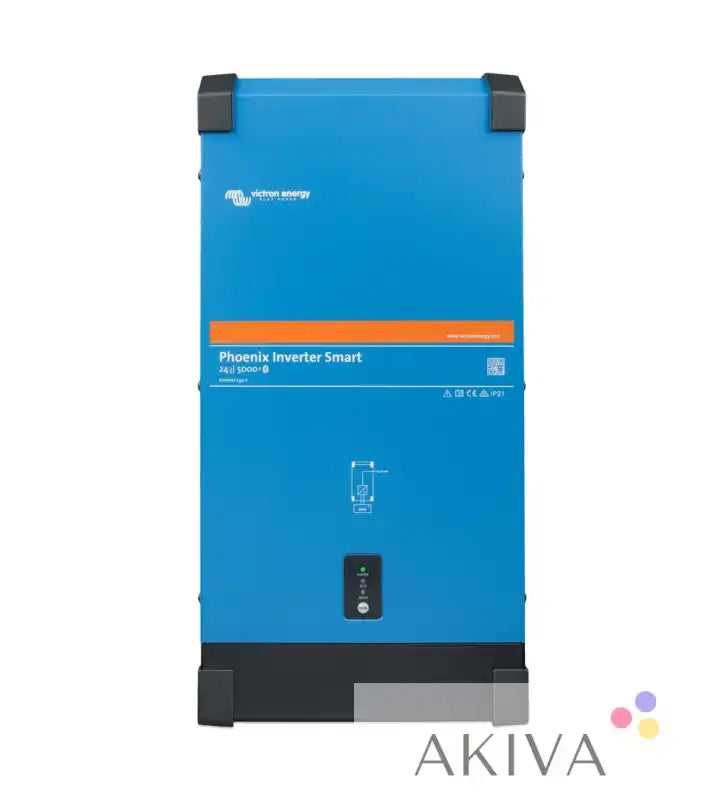

Victron Energy Phoenix Inverter 24/5000 230V Smart VE.Bus – PIN242500000

The Victron Energy Phoenix Inverter 24/5000 230V Smart VE.Bus PIN242500000 is a high-capacity pure sine wave inverter designed to convert 24V DC battery power into stable and reliable 230V AC electricity for demanding off-grid, marine, automotive, and industrial energy systems. Manufactured by Victron Energy, this premium inverter delivers powerful continuous output, exceptional surge capability, and advanced system integration features for professional-grade installations.

Built on Victron’s proven Phoenix Smart inverter platform, the 24/5000 model produces a clean pure sine wave output suitable for powering a wide range of heavy-duty and sensitive electrical equipment including refrigeration systems, air conditioning units, pumps, compressors, power tools, battery chargers, kitchen appliances, and full off-grid household loads. The high-quality waveform ensures stable operation while protecting connected devices from voltage fluctuations, interference, and compatibility issues commonly associated with modified sine wave inverters.

The PIN242500000 delivers 5000VA continuous output power (approximately 4000W depending on operating conditions), with extremely high peak surge capability up to 10,000W. This allows it to start demanding inductive loads such as large motors, compressors, and industrial equipment that require significantly higher startup power than their continuous running demand.

This inverter features integrated Smart functionality with Bluetooth connectivity, allowing users to configure and monitor the system directly through the VictronConnect app. Key settings such as ECO mode, alarm thresholds, output voltage, frequency, and shutdown parameters can be adjusted easily without additional hardware.

It also includes VE.Bus communication capability, enabling advanced integration into larger Victron energy systems. This allows multiple inverters to operate in parallel or in three-phase configurations, making it suitable for scalable installations where higher system capacity or redundancy is required.

Key Features

• Genuine Victron Energy pure sine wave inverter
• Part Number: PIN242500000
• Converts 24V DC battery power into 230V AC output
• 5000VA continuous power output
• Up to 10,000W peak surge capability
• Pure sine wave output for sensitive electronics
• Integrated Bluetooth Smart connectivity
• VE.Bus communication interface for system integration
• Parallel and three-phase operation capability
• ECO mode for reduced standby consumption
• Remote on/off connection capability
• Configurable alarms and system parameters
• High efficiency toroidal transformer design
• Advanced full-bridge inverter topology
• Overload, short-circuit, and over-temperature protection
• Designed for professional continuous-duty applications

The Phoenix Smart 24/5000 is engineered for maximum reliability under sustained heavy loads. Its robust design and high surge capacity make it suitable for running demanding inductive and resistive loads such as HVAC systems, industrial motors, refrigeration equipment, and large off-grid electrical systems.

The intelligent ECO mode reduces power consumption during low-load periods by automatically switching the inverter into standby and periodically checking for demand. This improves overall system efficiency and helps extend battery life in off-grid and mobile power installations.

Technical Highlights

• 24V DC input voltage
• 230V AC output voltage
• 5000VA continuous output rating
• Pure sine wave output waveform
• VE.Bus communication port
• Bluetooth Smart monitoring and control
• High efficiency power conversion
• Heavy-duty industrial enclosure
• Low standby power consumption
• Professional-grade electronic protection systems

Victron Energy products are trusted worldwide across marine, automotive, renewable energy, industrial, and backup power sectors due to their durability, engineering quality, and long operational lifespan. The Phoenix Smart inverter range is widely recognised for delivering scalable, high-performance AC power with advanced monitoring and system integration capabilities.

Ideal Applications

• Large off-grid solar power systems
• Marine and offshore electrical systems
• Industrial backup power installations
• Commercial mobile power systems
• Full campervan and motorhome electrical systems
• HVAC and refrigeration systems
• Workshop and construction equipment
• Telecommunications infrastructure
• Remote site power systems
• High-demand electrical appliances and motors

The Victron Energy Phoenix Inverter 24/5000 230V Smart VE.Bus PIN242500000 delivers exceptional power, scalability, and intelligent control for the most demanding 24V off-grid and industrial applications. Combining advanced system integration, strong surge capability, robust protection systems, and trusted Victron engineering, it is a premium solution for large-scale pure sine wave AC power generation.
