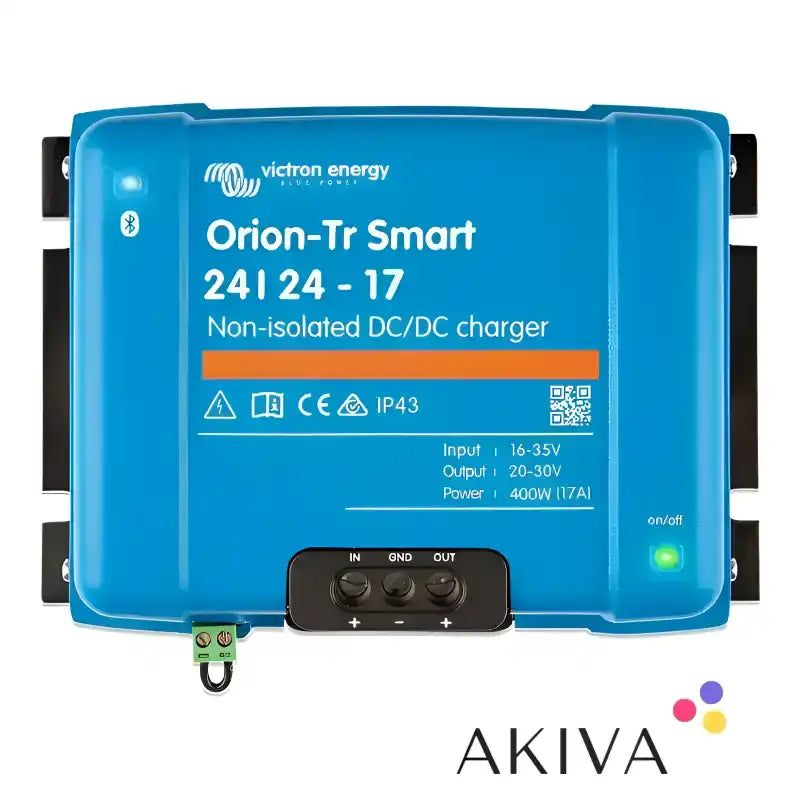

Victron Energy ORI242440140 – Orion-Tr Smart 24/24-17A Non-Isolated DC-DC Battery Charger
Victron Energy ORI242440140 – Orion-Tr Smart 24/24-17A Non-Isolated DC-DC Battery Charger
Couldn't load pickup availability
The Victron Energy ORI242440140 Orion-Tr Smart 24/24-17A Non-Isolated DC-DC Charger is an advanced battery-to-battery charging solution designed for 24V electrical systems. Delivering up to 17A of continuous charging current, this intelligent DC-DC charger provides efficient and controlled charging for auxiliary battery banks in commercial vehicles, motorhomes, marine installations, boats and off-grid power systems.
Featuring integrated Bluetooth connectivity, an adaptive three-stage charging algorithm and programmable charging settings, the Orion-Tr Smart offers precise control over the battery charging process. Its non-isolated design makes it particularly suitable for installations where a 24V starter battery or alternator system needs to charge a separate 24V auxiliary or service battery.
Product Overview and Usage
The Victron Energy Orion-Tr Smart 24/24-17A DC-DC Charger is designed to charge a 24V auxiliary battery from a 24V vehicle alternator or starter battery. Unlike conventional split-charge relays, which simply connect battery banks together, this intelligent charger actively regulates the charging voltage and current to provide a controlled and efficient charging process.
This is particularly useful in modern commercial vehicles and specialist installations where alternator voltage can fluctuate depending on operating conditions. The Orion-Tr Smart regulates the output to ensure the connected service battery receives the appropriate charging voltage.
The charger is suitable for a variety of battery technologies, including lithium, AGM, gel and conventional lead-acid batteries. Its adaptive three-stage charging algorithm automatically manages the bulk, absorption and float charging stages, helping maintain battery performance and extend battery service life.
Integrated Bluetooth connectivity allows users to monitor and configure the charger through the VictronConnect application on a compatible smartphone or tablet. Charging parameters can be adjusted to match the requirements of the connected battery, while firmware updates can also be performed through the application.
The unit incorporates programmable engine-running detection to help prevent unnecessary discharge of the starter battery when the vehicle engine is switched off. A remote on/off connection provides additional control over the charging process.
The Orion-Tr Smart can also be configured as a regulated DC power supply with a fixed output voltage, making it suitable for applications requiring a stable 24V electrical supply.
Technical Information and Features
The ORI242440140 is a non-isolated DC-DC charger with a nominal 24V input and 24V output configuration. The input voltage operating range is 20–35V DC, while the output voltage is adjustable between 20V and 30V DC.
The charger delivers a continuous output current of 17A at temperatures up to 40°C, providing up to 400W of continuous output power at 40°C and 480W at 25°C. Its maximum conversion efficiency is approximately 89%.
The adaptive three-stage charging system automatically adjusts charging behaviour according to battery requirements. For lead-acid batteries, absorption time is adjusted according to the depth of discharge, helping prevent unnecessary overcharging. Lithium battery charging parameters can also be configured to suit the battery manufacturer's recommendations.
Additional features include integrated Bluetooth Smart connectivity, programmable engine-running detection, remote on/off functionality, short-circuit protection and high-temperature protection. Multiple Orion-Tr Smart units can be connected in parallel to increase the available charging current and overall system capacity.
As a non-isolated converter, the input and output share a common negative connection. This should be considered when designing the electrical installation.
Product Specifications
The Victron Energy ORI242440140 has a nominal input voltage of 24V DC and a nominal output voltage of 24.2V DC. Its input voltage range is 20–35V, with an adjustable output voltage range of 20–30V and an output voltage tolerance of ±0.2V.
The continuous output current is 17A at temperatures up to 40°C, with a maximum output current of 25A for up to 10 seconds. Short-circuit output current is rated at 40A.
Maximum continuous output power is 480W at 25°C and 400W at 40°C. Maximum efficiency is approximately 89%. No-load input current is less than 80mA, while standby current is less than 1mA.
The operating temperature range is -20°C to +55°C, with output current derating at higher temperatures. The charger features screw-terminal electrical connections supporting cable sizes up to 16mm².
Its physical dimensions are approximately 130 x 186 x 80mm, and it weighs approximately 1.6kg. The protection rating is IP43 when installed with the screw terminals facing downwards, with IP22 protection for the connection area.
Ideal Applications
The Victron Energy Orion-Tr Smart 24/24-17A DC-DC Charger is suitable for commercial vehicles, trucks, buses, motorhomes, campervans, boats, marine electrical systems and off-grid battery installations.
It provides a dependable charging solution for 24V auxiliary battery banks, particularly where controlled battery charging is required from a vehicle alternator or another 24V DC power source.
It is also suitable for lithium battery installations where accurate charging voltage regulation and programmable charging parameters are important.
Why Choose Victron Energy?
Victron Energy is internationally recognised for manufacturing high-quality battery chargers, inverters, DC-DC converters and professional power management equipment. Its products are widely used in marine, automotive, commercial and renewable energy applications.
The ORI242440140 combines intelligent battery charging, integrated Bluetooth monitoring and efficient 24V-to-24V power conversion in a compact and versatile design. It is an excellent choice for installers and users looking for a reliable 17A DC-DC battery charger for professional and leisure electrical systems.
