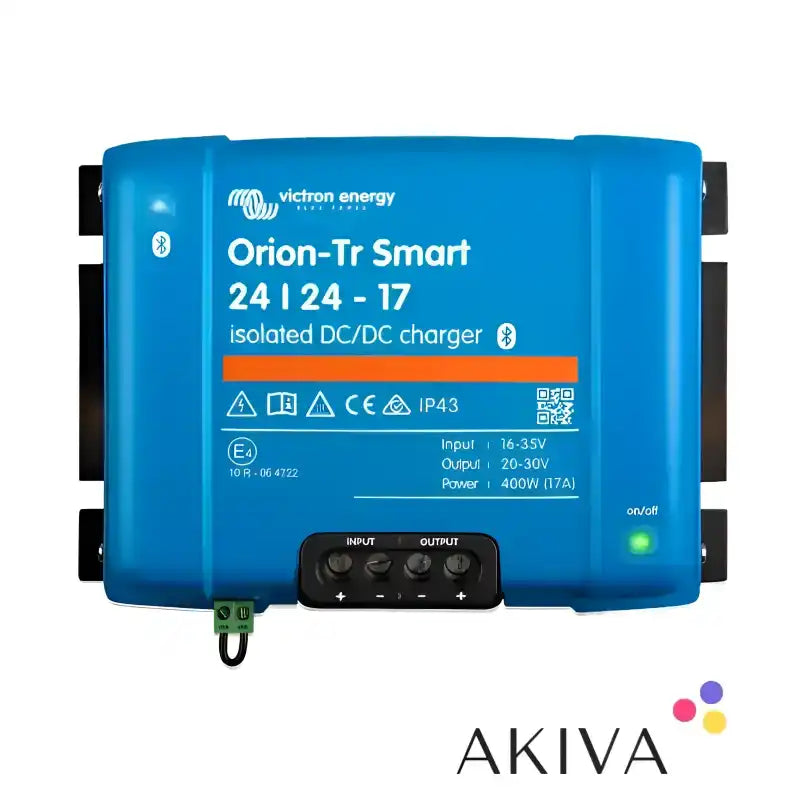

Victron Energy Orion-Tr Smart 24/24-17A (400W) Isolated DC-DC Charger – ORI242440120
Victron Energy Orion-Tr Smart 24/24-17A (400W) Isolated DC-DC Charger – ORI242440120
Couldn't load pickup availability
The Victron Energy Orion-Tr Smart 24/24-17A Isolated DC-DC Charger (ORI242440120) is a powerful, intelligent battery charging solution designed to provide efficient and controlled charging for 24V battery systems. Delivering up to 17A of continuous output current and 400W of power at 40°C, this advanced DC-DC charger is ideal for installations where a dedicated auxiliary or service battery needs to be charged from an existing 24V electrical supply.
Featuring integrated Bluetooth connectivity, galvanic isolation and an adaptive three-stage charging algorithm, the Orion-Tr Smart provides accurate battery management and excellent installation flexibility. It is suitable for a variety of battery technologies, including lithium, AGM, gel and conventional lead-acid batteries.
Usage and Applications
The Victron Orion-Tr Smart 24/24-17A is designed for dual-battery installations in vehicles, boats, motorhomes, campervans and commercial electrical systems. It allows a 24V auxiliary or leisure battery to be charged from a vehicle's 24V starter battery and alternator, providing a reliable and controlled charging supply.
The charger is particularly useful in installations where the starter battery and service battery need to operate independently. Its galvanically isolated design electrically separates the input and output circuits, helping prevent unwanted electrical currents and ground-loop problems. This is especially beneficial in marine installations and specialist vehicle conversions.
The integrated engine-running detection function makes the Orion-Tr Smart suitable for modern vehicles fitted with smart alternator technology, including Euro 5 and Euro 6 engines. It can recognise when the engine is running and help prevent unnecessary discharge of the starter battery when the vehicle is stationary.
The charger can also be configured to operate as a regulated DC-DC power supply with a fixed output voltage, rather than using its adaptive battery charging programme. This provides additional flexibility for specialist 24V electrical installations.
Technical Information and Specifications
The ORI242440120 operates with a nominal 24V DC input and provides a nominal output voltage of 24.2V. Its input voltage operating range is 20V to 35V, with an undervoltage shutdown setting of 14V and a restart voltage of 15V.
The adjustable output voltage range is 20V to 30V, allowing the charging profile to be configured to suit the connected battery. The charger delivers 17A of continuous output current at 40°C, with a maximum output current of 25A for up to 10 seconds.
Continuous output power is rated at 480W at 25°C and 400W at 40°C. Maximum conversion efficiency is approximately 89%, helping minimise energy losses during operation. Output voltage tolerance is ±0.2V, with output noise of approximately 2mV RMS.
Galvanic isolation is rated at 200V DC between the input, output and casing. The charger also incorporates short-circuit protection, high-temperature protection and an integrated input fuse.
The operating temperature range is -20°C to +55°C, with output power derating above 40°C. The unit features screw-terminal electrical connections and supports cable cross-sections up to 16mm² (6 AWG).
The protection rating is IP43 for the electronic components when installed with the screw terminals facing downwards, while the connection area has an IP22 rating. The unit measures approximately 130mm high, 186mm wide and 70mm deep, with a weight of approximately 1.6kg.
Intelligent Three-Stage Battery Charging
The Victron Orion-Tr Smart uses an adaptive three-stage charging algorithm consisting of bulk, absorption and float charging. This intelligent charging process helps ensure batteries receive the appropriate charging current and voltage throughout the charging cycle.
For lead-acid batteries, the absorption period automatically adjusts according to the depth of discharge. Following a shallow discharge, the absorption period is reduced to help prevent unnecessary overcharging. After a deeper discharge, the absorption period is extended to ensure the battery is properly recharged.
For lithium batteries, the absorption period is fixed, with a default setting of two hours. Charging parameters can be adjusted through the VictronConnect application to suit the battery manufacturer's recommendations.
The charger can also be configured to provide a fixed output voltage, making it suitable for applications where a regulated DC power supply is required instead of a conventional battery charging cycle.
Bluetooth Connectivity and Remote Control
One of the key advantages of the Orion-Tr Smart range is its integrated Bluetooth Smart technology. This allows the charger to be monitored, programmed and configured using the VictronConnect application on a compatible smartphone or tablet.
Users can adjust charging parameters, select the appropriate battery charging profile, monitor operating performance and install firmware updates without requiring an additional monitoring interface.
A remote on/off connection is also provided, allowing the charger to be controlled through an external switch or relay. This eliminates the need for a high-current switch in the main input wiring and provides greater flexibility when designing vehicle and marine electrical systems.
Multiple Orion-Tr Smart chargers can be connected in parallel to increase the available output current and charging capacity, making the system suitable for larger battery installations.
Why Choose the Victron Energy Orion-Tr Smart ORI242440120?
Combining 400W of charging power, 17A continuous output current, galvanic isolation and intelligent Bluetooth monitoring, the Victron Energy Orion-Tr Smart 24/24-17A is an excellent choice for demanding 24V battery charging applications.
Whether you are upgrading a marine electrical installation, fitting a dual-battery system to a commercial vehicle, developing a motorhome power system or building an independent off-grid installation, this professional DC-DC charger provides reliable performance and flexible battery management.
Designed with the engineering quality and reliability associated with Victron Energy, the Orion-Tr Smart offers an advanced solution for maintaining and charging 24V auxiliary battery systems.
