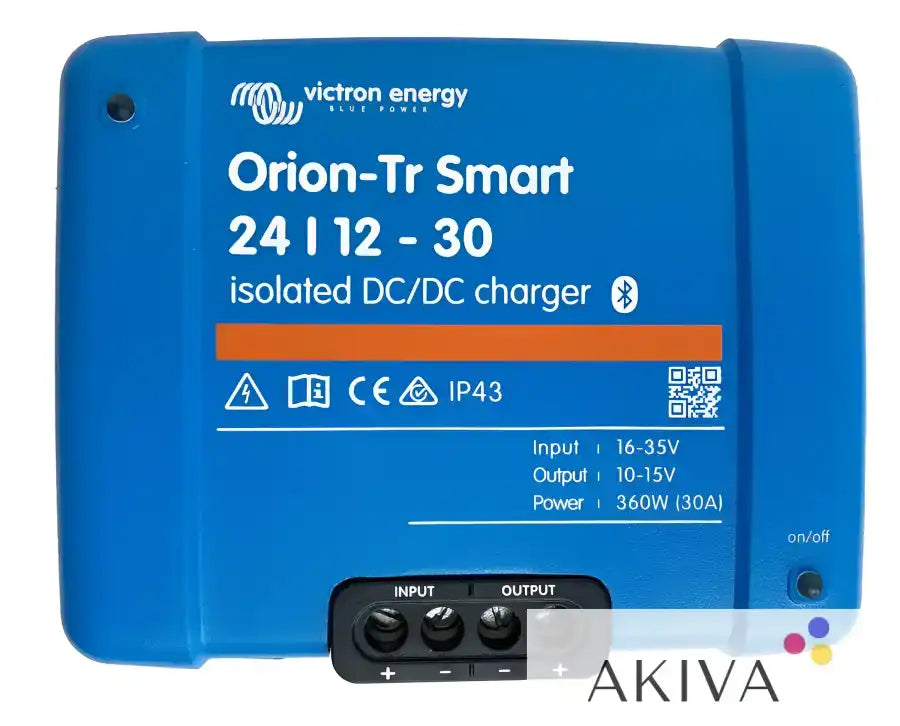

Victron Energy Orion-Tr Smart 24/12-30A (360W) Isolated DC-DC Charger – ORI241236120
Victron Energy Orion-Tr Smart 24/12-30A (360W) Isolated DC-DC Charger – ORI241236120
Couldn't load pickup availability
The Victron Energy Orion-Tr Smart 24/12-30A Isolated DC-DC Charger (ORI241236120) is a professional, high-performance battery charging solution designed to convert a 24V DC power supply into a regulated 12V DC output. Delivering up to 30A of continuous charging current and 360W of power, this intelligent DC-DC charger is ideal for installations where a 12V auxiliary or leisure battery needs to be charged from a 24V electrical system.
Featuring built-in Bluetooth connectivity, galvanic isolation and a fully configurable adaptive three-stage charging algorithm, the Orion-Tr Smart provides reliable and efficient battery charging for demanding automotive, marine, commercial vehicle and off-grid applications. Its advanced charging technology makes it suitable for a wide range of battery chemistries, including AGM, gel, lead-acid and lithium batteries.
Usage and Applications
The Victron Orion-Tr Smart 24/12-30A is particularly useful in vehicles, boats, motorhomes, campervans and specialist commercial installations where a 24V starter battery or alternator system needs to charge a separate 12V service battery. It provides a controlled charging supply, allowing different battery voltages to operate together safely and efficiently.
The galvanically isolated design keeps the input and output electrical circuits separated, helping prevent unwanted electrical currents and ground-loop issues between different parts of an installation. This makes it especially suitable for marine electrical systems, vehicle conversions and installations where electrical isolation is important.
The integrated engine-running detection function allows the charger to recognise when the engine is operating, helping prevent unnecessary discharge of the starter battery. This feature is particularly beneficial when working with modern smart alternator systems, where conventional split-charge arrangements may not provide reliable charging.
The Orion-Tr Smart can also be configured to operate as a conventional DC-DC converter with a fixed output voltage, rather than using its adaptive battery charging programme.
Technical Information and Specifications
The ORI241236120 operates with a nominal 24V DC input and provides a regulated 12V output, with an adjustable output voltage range of 10V to 15V. It delivers 30A continuous output current at an ambient temperature of up to 40°C, with a maximum continuous output power of 430W at 25°C and 360W at 40°C. The maximum output current can reach 45A for short periods under specified operating conditions.
The charger supports an input voltage range of 20V to 35V, with an undervoltage shutdown setting of 14V and restart voltage of 15V. Output voltage tolerance is ±0.2V, helping maintain a stable supply for connected equipment and battery systems.
Maximum conversion efficiency is approximately 88%, reducing unnecessary energy losses during operation. The unit incorporates galvanic isolation rated at 200V DC between the input, output and case. It also features short-circuit protection, high-temperature protection and an integrated input fuse.
Built-in Bluetooth Smart technology allows the charger to be monitored, configured and programmed using the VictronConnect application on a compatible smartphone or tablet. Users can adjust battery charging parameters, select the appropriate battery chemistry, monitor operating performance and install firmware updates. A remote on/off connection is also provided for external control.
The adaptive three-stage charging process consists of bulk, absorption and float charging. For lead-acid batteries, the absorption period automatically adjusts according to the depth of discharge, helping prevent unnecessary overcharging while ensuring the battery receives an appropriate recharge. Lithium battery charging parameters can also be configured to suit the manufacturer's recommended settings.
The charger uses screw-terminal connections and supports cable cross-sections up to 16mm² (6 AWG). Its protection rating is IP43 when installed with the screw terminals facing downwards, with an IP22 rating for the connection area.
Operating temperature ranges from -20°C to +55°C, with output power derating at higher temperatures. The unit measures approximately 130mm high, 186mm wide and 80mm deep, with an approximate weight of 1.8kg.
Bluetooth Connectivity and Intelligent Charging
One of the key advantages of the Victron Orion-Tr Smart range is its integrated Bluetooth functionality. Unlike conventional DC-DC chargers, this model does not require an additional monitoring interface to access its main configuration features.
Through the VictronConnect application, installers and system owners can configure the charging algorithm, adjust output voltage settings and monitor the charger remotely within Bluetooth range. The ability to customise charging parameters makes it a versatile solution for installations using different battery technologies.
Multiple Orion-Tr Smart chargers can also be connected in parallel to increase the available charging current and overall system capacity, making the range suitable for larger and more demanding electrical installations.
Why Choose the Victron Energy Orion-Tr Smart ORI241236120?
Combining intelligent battery management, efficient DC-DC conversion, galvanic isolation and wireless configuration, the Victron Energy Orion-Tr Smart 24/12-30A is an excellent choice for professional 24V to 12V battery charging applications.
Whether you are upgrading a motorhome electrical system, installing a secondary battery in a commercial vehicle, developing a marine power installation or building an independent off-grid electrical system, this Victron DC-DC battery charger provides dependable performance and flexible configuration.
The Victron Energy ORI241236120 delivers the quality, reliability and advanced battery management technology associated with the Victron Energy brand.
