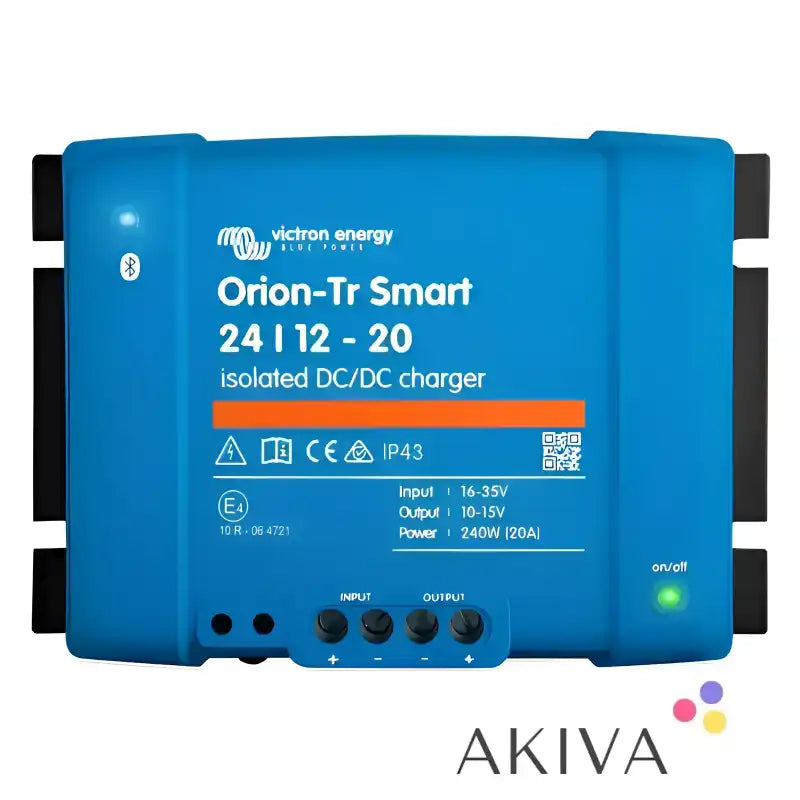

ORI241224120 Victron Energy Orion-Tr Smart 24/12-20A Isolated DC-DC Charger – ORI241224120
ORI241224120 Victron Energy Orion-Tr Smart 24/12-20A Isolated DC-DC Charger – ORI241224120
Couldn't load pickup availability
The Victron Energy ORI241224120 Orion-Tr Smart 24/12-20A Isolated DC-DC Charger is a high-performance 240W battery charger designed to convert a 24V DC power supply into a regulated 12V output. Providing a continuous charging current of up to 20A, this intelligent DC-DC charger is ideal for charging 12V auxiliary and leisure batteries from a 24V vehicle electrical system.
Featuring built-in Bluetooth connectivity, adaptive three-stage battery charging and galvanic isolation, the Orion-Tr Smart offers reliable and efficient battery charging for professional vehicle, marine and off-grid applications. Its intelligent charging technology supports both lead-acid and lithium battery systems, making it a versatile solution for modern dual-battery installations.
Usage and Applications
The Victron Orion-Tr Smart 24/12-20A is designed for installations where a 12V auxiliary battery needs to be charged from a 24V electrical system. It provides a stable and controlled charging supply, ensuring that the connected battery receives the appropriate charging voltage and current.
This makes it particularly suitable for commercial vehicles, motorhomes, campervans, boats, buses, emergency vehicles and off-grid electrical installations.
The charger is fully programmable and incorporates an adaptive three-stage charging algorithm consisting of bulk, absorption and float charging. This helps maintain battery performance and extends battery service life by adjusting the charging process to suit the battery's requirements.
Built-in Bluetooth allows users to monitor and configure the charger using the VictronConnect app on a compatible smartphone or tablet. Charging parameters can be adjusted, battery settings configured and firmware updated without requiring a physical connection to a computer.
The unit also incorporates an engine-running detection mechanism, making it compatible with modern smart alternator systems. A remote on/off connection is provided, allowing external control of the charging process.
Technical Specifications
The Victron Energy ORI241224120 operates with a nominal 24V DC input and provides a regulated 12V DC output. Its input voltage range is 16–35V, with an undervoltage shutdown threshold of 14V and restart voltage of 15V.
The nominal output voltage is 12.2V and can be adjusted between 10V and 15V. Continuous output current is rated at 20A at 40°C, delivering 240W of continuous output power at this temperature. At an ambient temperature of 25°C, the continuous output power increases to 300W. Maximum output current is 25A for up to 10 seconds.
Maximum efficiency is approximately 88%, helping to minimise energy losses during the DC voltage conversion process. The charger features galvanic isolation rated at 200V DC between the input, output and case, providing electrical separation between the connected circuits.
The unit has a standby current of less than 1mA and a no-load input current of less than 100mA. Output voltage tolerance is ±0.2V, with output noise of approximately 2mV RMS.
The operating temperature range is -20°C to +55°C, with output power derating above 40°C. The charger features screw-terminal DC connections supporting cable cross-sections up to 16mm² (AWG6).
Physical dimensions are approximately 130mm high, 186mm wide and 70mm deep, with a weight of approximately 1.3kg.
Intelligent Charging and Bluetooth Connectivity
One of the key advantages of the Orion-Tr Smart charger is its integrated Bluetooth functionality. Using the VictronConnect app, installers and system owners can access charging information, configure battery charging profiles and adjust operating parameters.
The adaptive three-stage charging process automatically manages bulk, absorption and float charging to suit the connected battery. It supports a range of lead-acid battery types as well as lithium batteries, offering flexibility for different electrical system configurations.
The charger can also be configured for a fixed output voltage when a regulated DC power supply is required instead of a battery charging profile.
Protection and Installation
The ORI241224120 incorporates protection against short circuits and excessive operating temperatures. Output current is automatically reduced when the operating temperature becomes too high, helping protect the internal electronics.
The charger has an IP43 protection rating for its electronic components when installed with the screw terminals facing downwards. The connection area carries an IP22 rating.
Multiple units can be connected in parallel to increase the available output current, allowing the charging system to be expanded to meet higher power requirements.
Why Choose Victron Energy ORI241224120?
Victron Energy is recognised worldwide for its advanced battery charging, power conversion and energy management equipment. The Orion-Tr Smart 24/12-20A combines intelligent charging technology, Bluetooth monitoring and galvanic isolation in a compact and dependable DC-DC charger.
For anyone looking to charge a 12V leisure battery from a 24V vehicle, marine or industrial electrical system, the ORI241224120 provides an efficient and programmable solution.
Whether installed in a commercial vehicle, motorhome, boat or off-grid power system, this Victron Energy DC-DC charger delivers dependable 24V to 12V conversion and intelligent battery management.
