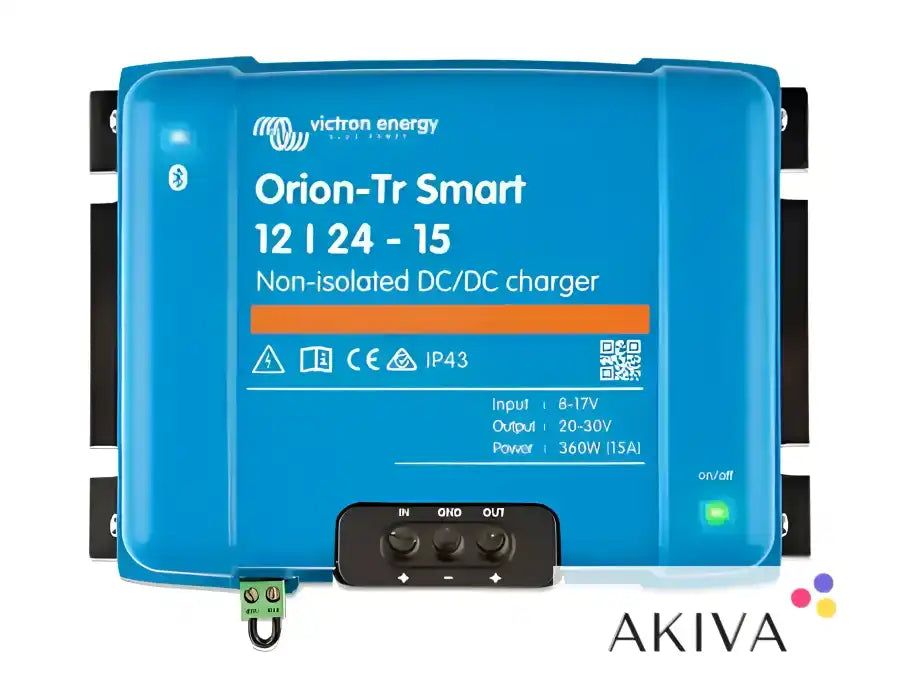

Victron Energy ORI122436140 – Orion-Tr Smart 12/24-15A Non-Isolated DC-DC Battery Charger

Victron Energy ORI122436140 – Orion-Tr Smart 12/24-15A Non-Isolated DC-DC Battery Charger

Regular price £157.25 GBP
Regular price £249.60 GBP Sale price £157.25 GBP
Sale Sold out
Taxes included. Shipping calculated at checkout.

The Victron Energy ORI122436140 Orion-Tr Smart 12/24-15A Non-Isolated DC-DC Charger is an intelligent battery charging solution designed to charge a 24V auxiliary battery system from a 12V vehicle alternator or starter battery. Delivering up to 15A of continuous charging current, this advanced DC-DC charger provides efficient and controlled battery charging for motorhomes, campervans, marine installations, commercial vehicles and off-grid power systems.

Featuring integrated Bluetooth connectivity and an adaptive three-stage charging algorithm, the Orion-Tr Smart provides precise control over the charging process. Its intelligent charging technology makes it particularly useful for installations where a 12V electrical system needs to charge a separate 24V service battery.

Product Overview and Usage

The Victron Energy Orion-Tr Smart 12/24-15A DC-DC Charger is designed to convert a 12V DC input into a regulated 24V DC charging output. This makes it ideal for dual-battery installations where a vehicle's 12V alternator or starter battery needs to supply charging power to a 24V auxiliary battery bank.

Unlike conventional split-charge relays, which simply connect battery systems together, the Orion-Tr Smart actively regulates the output voltage and charging current. This ensures the connected 24V battery receives an appropriate charging supply, regardless of fluctuations in the vehicle's alternator voltage.

The charger is particularly suitable for modern vehicles equipped with intelligent alternators, including Euro 5 and Euro 6 systems. Its programmable engine-running detection helps ensure that charging only takes place when the vehicle engine is operating, protecting the starter battery from unnecessary discharge.

The Orion-Tr Smart supports different battery technologies, including lithium, AGM, gel and conventional lead-acid batteries. Its adaptive three-stage charging algorithm manages the bulk, absorption and float charging stages to support efficient battery charging and long-term battery performance.

Integrated Bluetooth allows users to monitor and configure the charger using the VictronConnect application on a compatible smartphone or tablet. Charging parameters can be adjusted to suit the connected battery manufacturer's requirements.

Technical Information and Features

The ORI122436140 is a non-isolated DC-DC charger, meaning its input and output share a common negative connection. It has a nominal 12V DC input and provides a regulated 24V DC output, with a nominal output voltage of 24.2V.

The continuous output current is rated at 15A at 40°C, providing up to 360W of continuous output power under rated operating conditions. Maximum continuous output power reaches 430W at 25°C.

The output voltage is adjustable between 20V and 30V, allowing the charging voltage to be configured for the requirements of the connected battery system.

The charger incorporates programmable engine-running detection, remote on/off functionality and integrated Bluetooth connectivity. Multiple units can be connected in parallel to increase the available charging capacity where a larger installation requires additional output current.

Built-in protection features include undervoltage protection, short-circuit protection and over-temperature protection. The unit also supports remote control through an external on/off connection.

Product Specifications

The Victron Energy ORI122436140 has a nominal input voltage of 12V DC and a nominal output voltage of 24.2V DC. Its input voltage operating range is 10–17V, while the adjustable output voltage range is 20–30V.

The continuous output current is 15A at 40°C, with a maximum output current of 25A for up to 10 seconds. Short-circuit output current is rated at 40A.

Maximum continuous output power is 430W at 25°C and 360W at 40°C. Maximum efficiency is approximately 88%.

The charger has an operating temperature range of -20°C to +55°C, with full rated output available up to 40°C. It features integrated Bluetooth connectivity, a programmable remote on/off connection and screw-terminal electrical connections supporting cable sizes up to 16mm².

The unit measures approximately 186 x 130 x 80mm and weighs approximately 1.8kg. Its protection rating is IP22 for the connection area and IP43 for the electronic components when installed with the screw terminals facing downwards.

Ideal Applications

The Victron Energy Orion-Tr Smart 12/24-15A DC-DC Charger is suitable for applications where a 12V electrical system needs to charge a 24V auxiliary battery bank. Typical installations include specialist campervan conversions, motorhomes, commercial vehicles, boats, marine electrical systems and mobile off-grid power installations.

It is particularly useful for vehicle owners and installers building mixed-voltage electrical systems that require reliable 24V battery charging from a conventional 12V alternator.

Why Choose Victron Energy?

Victron Energy is internationally recognised for producing high-quality battery chargers, inverters, DC-DC converters and power management equipment. Its products are widely used in marine, automotive, commercial and renewable energy applications.

The Victron Energy ORI122436140 combines intelligent charging technology, Bluetooth monitoring and flexible voltage configuration in a compact and efficient design. It provides a dependable solution for charging 24V auxiliary batteries from a 12V vehicle electrical system.

SKU:ORI122436140
