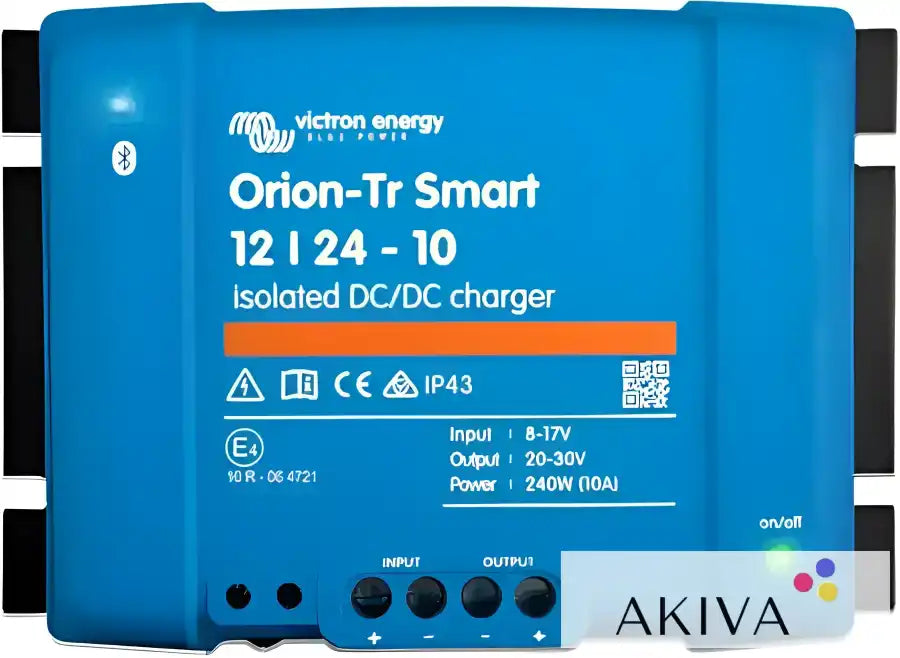

Victron Energy Orion-Tr Smart 12/24-10A (240W) Isolated DC-DC Charger – ORI122424120

Victron Energy Orion-Tr Smart 12/24-10A (240W) Isolated DC-DC Charger – ORI122424120

Regular price £116.42 GBP
Regular price £184.80 GBP Sale price £116.42 GBP
Sale Sold out
Taxes included. Shipping calculated at checkout.

The Victron Energy Orion-Tr Smart 12/24-10A Isolated DC-DC Charger (ORI122424120) is a high-quality, intelligent battery charging solution designed to convert a 12V DC power supply into a regulated 24V charging output. Delivering up to 10A of charging current and 240W of continuous power at 40°C, this advanced DC-DC charger provides a reliable and efficient way to charge 24V auxiliary, leisure and service batteries from a 12V vehicle electrical system.

Featuring built-in Bluetooth connectivity, galvanic isolation and an intelligent adaptive three-stage charging algorithm, the Orion-Tr Smart offers excellent control, flexibility and protection for demanding off-grid, automotive and marine electrical installations. Its programmable charging characteristics make it suitable for both lead-acid and lithium battery systems, providing an effective charging solution for campervans, motorhomes, boats, commercial vehicles and independent power systems.

Intelligent DC-DC Battery Charging

The Victron Orion-Tr Smart 12/24-10A is specifically designed for applications where a 24V battery needs to be charged from a 12V electrical supply. It is particularly useful in vehicles and marine installations where the starter battery and alternator operate at 12V, while auxiliary equipment or a secondary battery bank requires a 24V charging system.

The charger uses an intelligent three-stage adaptive charging process consisting of bulk, absorption and float charging. This helps deliver an appropriate charging profile, supporting effective battery charging while helping to maintain battery performance and service life.

For additional flexibility, the Orion-Tr Smart can also be configured as a regulated DC-DC power supply with a fixed output voltage. This makes it suitable for applications requiring a stable and adjustable 24V DC supply from a 12V source.

Bluetooth Monitoring and Configuration

Built-in Bluetooth Smart technology allows the Orion-Tr Smart to be monitored and configured wirelessly using the VictronConnect app on a compatible smartphone or tablet. Users can adjust charging parameters, select battery charging characteristics, configure engine shutdown detection and monitor important operating information without needing a physical connection to the unit.

The programmable charging settings provide flexibility when working with different battery technologies, including lithium and lead-acid batteries. The charger also features an engine-running detection mechanism, helping prevent unnecessary discharge of the vehicle's starter battery by ensuring charging operation is linked to the engine's running status.

Galvanic Isolation and Electrical Protection

An important feature of the ORI122424120 is its galvanic isolation between the input, output and casing. Providing 200V DC isolation, this helps separate the two electrical systems and reduces the possibility of unwanted electrical currents and ground-loop problems.

This is particularly beneficial in marine electrical installations, where electrical isolation can help reduce the risk of galvanic corrosion associated with interconnected electrical systems.

The Orion-Tr Smart also incorporates protection against overheating and output short circuits. Its robust construction and operating temperature range make it suitable for installation in a variety of mobile and off-grid environments.

Technical Specifications

The Victron Energy ORI122424120 is an isolated Orion-Tr Smart DC-DC charger with a nominal 12V DC input and a 24V DC output. Its input voltage range is 8–17V DC, with an undervoltage shutdown setting of 7V and a restart voltage of 7.5V.

The nominal output voltage is 24.2V DC, adjustable between 20V and 30V. It provides a continuous output current of 10A at its nominal output voltage and 40°C, delivering 240W of continuous output power at this temperature. At 25°C, the maximum continuous output power is 280W. The maximum output current for a period of 10 seconds is 15A.

The unit offers a maximum efficiency of 88%, with output voltage tolerance of ±0.2V and output noise of approximately 2mV RMS. Galvanic isolation is rated at 200V DC between the input, output and case.

The charger features Bluetooth Smart connectivity, programmable charging characteristics, remote on/off control and parallel connection capability. DC connections are made using screw terminals, accommodating cable sizes up to 16mm² (AWG 6).

The operating temperature range is -20°C to +55°C, with output power derating above 40°C. The enclosure provides IP43 protection when installed with the terminals facing downwards, while the connection area is rated IP22. Maximum relative humidity is 95%, non-condensing.

The physical dimensions are approximately 130mm high, 186mm wide and 70mm deep, with a product weight of approximately 1.3kg.

Applications and Typical Uses

The Victron Energy Orion-Tr Smart 12/24-10A is an excellent choice for campervan and motorhome electrical systems where a 12V starter battery needs to charge a separate 24V leisure battery bank. It is equally suitable for marine applications, including boats and yachts requiring an isolated 24V auxiliary charging system.

Other applications include commercial vehicles, specialist transport, off-grid installations, mobile workshops and industrial electrical systems where a dependable 24V charging supply is required from a 12V DC source.

Its combination of intelligent charging, adjustable output voltage, Bluetooth configuration and galvanic isolation makes it a versatile component for professionally designed battery and power management systems.

Why Choose the Victron Energy Orion-Tr Smart ORI122424120?

The Victron Energy Orion-Tr Smart 12/24-10A combines dependable DC-DC battery charging with intelligent monitoring and configuration in a compact, professionally engineered unit. Its 240W continuous output, programmable charging profiles, galvanic isolation and Bluetooth connectivity make it a practical solution for converting 12V vehicle power into a controlled 24V battery charging supply.



SKU:ORI122424120
