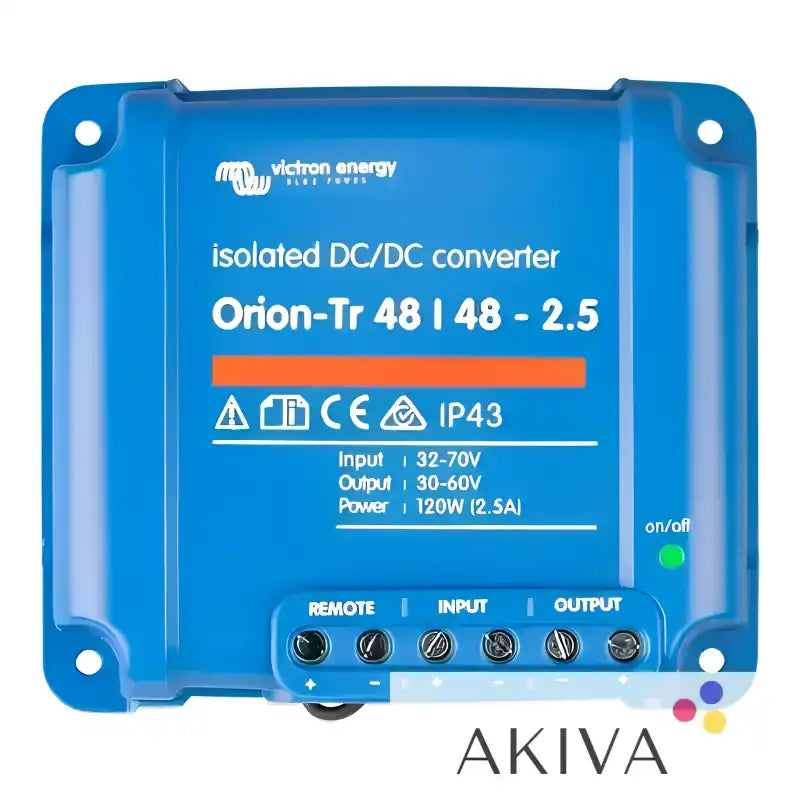

Victron Energy Orion-Tr 48/48-2.5A (120W) Isolated DC-DC Converter – ORI484810110

Victron Energy Orion-Tr 48/48-2.5A (120W) Isolated DC-DC Converter – ORI484810110

Regular price £46.11 GBP
Regular price £73.19 GBP Sale price £46.11 GBP
Sale Sold out
Taxes included. Shipping calculated at checkout.

Product Overview

The Victron Energy Orion-Tr 48/48-2.5A Isolated DC-DC Converter, part number ORI484810110, is a compact and efficient voltage converter designed to provide a regulated 48V DC output from a 48V battery system. Delivering a continuous output current of 2.5A and up to 120W of power at 25°C, it provides a reliable solution for maintaining a stable 48V supply for sensitive electrical equipment and specialist DC applications.

Although designed for 48V systems, the Orion-Tr provides voltage regulation and galvanic isolation rather than simply connecting two battery circuits together. Its adjustable output voltage, remote on/off facility and parallel operation capability make it a versatile component in professional marine, vehicle, industrial and off-grid power installations.

Usage and Applications

The Victron Orion-Tr 48/48-2.5A is suitable for applications where a regulated and electrically isolated 48V DC supply is required. It can be used in boats, motorhomes, commercial vehicles, telecommunications equipment, industrial control systems, renewable energy installations and off-grid battery systems.

It is particularly useful for supplying compatible 48V electrical equipment from a 48V battery bank where voltage regulation and electrical isolation are important. Applications can include communication devices, monitoring equipment, control electronics and other low-power DC appliances.

The adjustable output voltage also allows the unit to be configured for charging a suitable 48V battery, provided the required charging voltage and control arrangements are established. For installations requiring more output current, multiple compatible Orion-Tr converters can be connected in parallel.

Technical Information and Features

The Orion-Tr uses high-frequency switching technology to provide a regulated 48.2V nominal output from a wide-ranging 32–70V DC input. Its output voltage can be adjusted between 40V and 60V, allowing the converter to be configured for different electrical requirements.

Galvanic isolation rated at 200V DC is provided between the input, output and case. This electrical separation helps prevent unwanted current paths between circuits and is particularly valuable in marine, vehicle and industrial installations.

The remote on/off connection allows the converter to be switched using a low-power control signal, removing the need for a high-current switch in the input wiring. It can be operated through an external switch or an appropriate engine run/stop control signal.

The unit is short-circuit protected and supports parallel operation, allowing multiple compatible converters to be connected to increase available output current. Its screw-terminal connections make installation straightforward without requiring specialist connector tools.

The converter also features low standby consumption and an IP43 protection rating when installed with its screw terminals facing downwards.

Product Specifications

The Victron Energy ORI484810110 has an input voltage range of 32–70V DC, with undervoltage shutdown at 28V and restart at 30V. Its nominal output voltage is 48.2V DC, adjustable between 40V and 60V.

Continuous output current is rated at 2.5A at 25°C, with a maximum output current of 3A for 10 seconds. Short-circuit output current is 17A. Continuous output power is rated at 120W at 25°C and 85W at 40°C. Maximum efficiency is 89%, and no-load input current is less than 80mA.

Output voltage tolerance is ±0.2V, with output noise of 2mV RMS. Galvanic isolation is rated at 200V DC between input, output and case. Current consumption when disabled through the remote connection is less than 200µA.

The operating temperature range is -20°C to +55°C, with output power derating of 3% per °C above 40°C. Maximum permitted humidity is 95% non-condensing.

Electrical connections are made using screw terminals, supporting cable cross-sections up to 6mm² (AWG10). The unit measures approximately 100 x 113 x 47mm and weighs 0.42kg. Its protection rating is IP43 when installed with the screw terminals facing downwards.

Why Choose Victron Energy?

Victron Energy is internationally recognised for producing dependable power conversion and energy management equipment for demanding electrical applications. The Orion-Tr range combines reliable voltage regulation with practical installation features, making it a popular choice for marine, vehicle, industrial and off-grid power systems.

The Victron Orion-Tr 48/48-2.5A (120W) Isolated DC-DC Converter provides a compact solution for maintaining a regulated 48V DC supply, with the added benefits of galvanic isolation, adjustable output voltage and remote switching.
