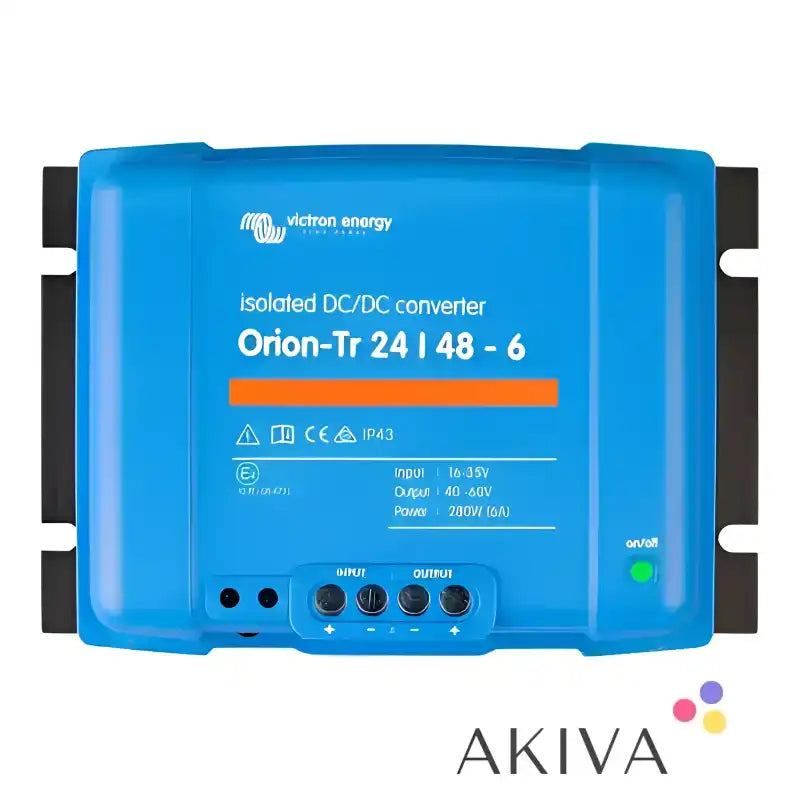

Victron Energy Orion-Tr 24/48-6A (280W) Isolated DC-DC Converter – ORI244828110
Victron Energy Orion-Tr 24/48-6A (280W) Isolated DC-DC Converter – ORI244828110
Couldn't load pickup availability
Product Overview
The Victron Energy Orion-Tr 24/48-6A (280W) Isolated DC-DC Converter (ORI244828110) is a high-quality, efficient voltage converter designed to transform a 24V DC battery supply into a regulated 48V DC output. Delivering up to 6A of continuous output current and 280W of power at 40°C, this converter provides a reliable solution for powering 48V electrical equipment from an existing 24V battery system.
Part of Victron Energy's established Orion-Tr range, this isolated DC-DC converter combines reliable voltage regulation with galvanic isolation, adjustable output voltage and remote on/off functionality. Its robust construction and integrated electrical protection make it suitable for commercial vehicles, industrial installations, marine applications, telecommunications equipment and off-grid power systems.
The Orion-Tr uses advanced buck-boost voltage conversion technology to maintain a stable output despite variations in the incoming battery voltage. This makes it particularly useful for sensitive electrical equipment that requires a consistent 48V DC power supply.
Usage and Applications
The Victron Orion-Tr 24/48-6A is designed for electrical installations where 48V equipment needs to operate from a 24V battery bank or DC power supply. It is particularly suitable for commercial vehicles, boats, marine electrical systems, industrial machinery, telecommunications installations and independent off-grid power systems.
By increasing the incoming 24V DC supply to a regulated 48V output, the converter allows compatible 48V appliances and electrical equipment to operate without requiring a separate 48V battery bank.
Typical applications include powering communication equipment, monitoring systems, industrial control electronics, specialist electrical accessories, networking equipment and other compatible 48V DC devices.
The adjustable output voltage, ranging from 40V to 60V, provides flexibility when configuring the converter to meet the requirements of connected equipment. Its buck-boost functionality helps maintain a consistent output voltage across the specified input voltage range when the output is set at or below its nominal voltage.
The galvanically isolated design is particularly beneficial in installations where electrical separation between input and output circuits is important. This helps prevent unwanted ground loops and reduces electrical interference in complex electrical systems.
Technical Information and Features
The Orion-Tr 24/48-6A incorporates galvanic isolation rated at 200V DC between the input, output and case. This provides electrical separation between connected circuits, helping improve system compatibility and reduce unwanted electrical interference.
The integrated remote on/off facility eliminates the need for a high-current switch in the main input wiring. The converter can be controlled using a low-power switch or an appropriate engine run/stop signal, making it easier to integrate into vehicle and marine electrical systems.
The adjustable output voltage can be configured between 40V and 60V DC, allowing the converter to accommodate different equipment requirements. Its regulated buck-boost operation helps maintain a stable 48V output despite fluctuations in the incoming 24V battery supply.
Built-in short-circuit protection helps safeguard the converter against electrical faults, while thermal protection automatically reduces output current when operating temperatures become elevated. This helps protect the internal electronics and maintain reliable operation.
Multiple Orion-Tr converters can be connected in parallel to increase the available output current. An unlimited number of compatible units can be connected in parallel, providing flexibility when designing larger electrical installations requiring additional 48V power capacity.
The screw-terminal connections allow straightforward installation without specialist connector tools. The IP43 protection rating applies when the converter is installed with its screw terminals facing downwards.
The adjustable output voltage also allows the converter to be configured for certain battery-charging applications, such as charging a suitable 48V battery from a 24V electrical system, provided the required charging voltage is appropriate. It does not provide automatic multi-stage charging programmes.
Product Specifications
Manufacturer: Victron Energy
Product Name: Orion-Tr 24/48-6A Isolated DC-DC Converter
Manufacturer Part Number: ORI244828110
Product Series: Orion-Tr
Nominal Input Voltage: 24V DC
Input Voltage Range: 16–35V DC
Undervoltage Shutdown: 14V
Undervoltage Restart: 15V
Nominal Output Voltage: 48.2V DC
Adjustable Output Voltage: 40–60V DC
Output Voltage Tolerance: ±0.2V
Output Noise: 2mV RMS
Continuous Output Current at 25°C: 6A
Continuous Output Current at 40°C: 6A
Maximum Output Current: 8A for 10 seconds
Short-Circuit Output Current: 25A
Continuous Output Power at 25°C: 320W
Continuous Output Power at 40°C: 280W
Maximum Efficiency: 89%
No-Load Input Current: Less than 120mA
Remote Off Current: Less than 200µA
Galvanic Isolation: 200V DC between input, output and case
Remote On/Off: Yes
Short-Circuit Protection: Yes
Overload Protection: Yes
Thermal Protection: Yes
Parallel Operation: Yes, unlimited compatible units
DC Connections: Screw terminals
Maximum Cable Cross-Section: 16mm² (AWG 6)
Protection Rating: IP43 when installed with terminals facing downwards
Operating Temperature: -20°C to +55°C
Temperature Derating: 3% per °C above 40°C
Maximum Relative Humidity: 95%, non-condensing
Dimensions (H x W x D): 130 x 186 x 70mm
Weight: 1.3kg
Why Choose Victron Energy?
Victron Energy is internationally recognised for manufacturing high-quality power conversion, battery management and off-grid electrical equipment. Its Orion-Tr range combines dependable performance, efficient voltage regulation and practical installation features for professional and recreational electrical applications.
The Victron Energy ORI244828110 is an excellent choice for anyone requiring a reliable isolated 24V to 48V DC-DC converter. With its 6A continuous output, 280W power capacity, adjustable voltage and galvanic isolation, it provides a versatile solution for powering 48V equipment from a 24V electrical system.
Whether you are upgrading a commercial vehicle electrical installation, powering specialist marine equipment, installing telecommunications systems or designing an off-grid power installation, the Victron Orion-Tr delivers dependable and regulated 48V DC power.
