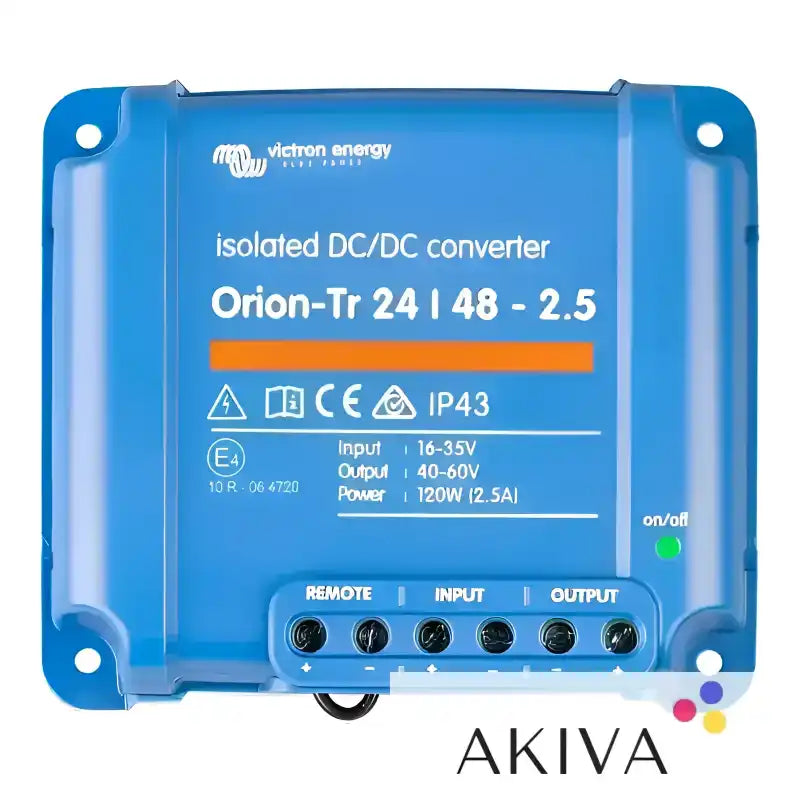

Victron Energy Orion-Tr 24/48-2.5A (120W) Isolated DC-DC Converter – ORI244810110
Victron Energy Orion-Tr 24/48-2.5A (120W) Isolated DC-DC Converter – ORI244810110
Couldn't load pickup availability
Product Overview
The Victron Energy Orion-Tr 24/48-2.5A (120W) Isolated DC-DC Converter (ORI244810110) is a compact and reliable voltage converter designed to transform a 24V DC battery supply into a regulated 48V DC output. Delivering up to 2.5A of continuous output current and 120W of power, this converter provides an effective solution for powering compatible 48V electrical equipment from an existing 24V battery system.
Part of Victron Energy's trusted Orion-Tr range, this isolated DC-DC converter features galvanic isolation, adjustable output voltage and remote on/off functionality. Its robust construction and integrated electrical protection make it suitable for commercial vehicles, industrial equipment, marine installations, specialist electrical systems and off-grid power applications.
With its efficient buck-boost voltage conversion technology, the Orion-Tr maintains a stable output even when the input voltage fluctuates. This makes it particularly useful for sensitive electrical equipment that requires a consistent 48V DC power supply.
Usage and Applications
The Victron Orion-Tr 24/48-2.5A is designed for installations where 48V electrical equipment needs to operate from a 24V battery bank or DC power supply. It is particularly useful in commercial vehicles, boats, marine electrical systems, industrial control installations and off-grid power systems.
By increasing the incoming 24V DC supply to a regulated 48V output, the converter allows compatible 48V equipment to operate without requiring a separate 48V battery bank. Applications can include powering communication equipment, electronic control systems, monitoring devices, specialist electrical accessories and other compatible 48V DC appliances.
The adjustable output voltage, ranging from 40V to 60V, provides flexibility when configuring the converter for different equipment requirements. Its buck-boost functionality helps maintain a stable output across the specified input voltage range when configured at or below the nominal output voltage.
The galvanically isolated design is particularly beneficial in installations where electrical separation between input and output circuits is required, helping prevent unwanted ground loops and reduce electrical interference.
Technical Information and Features
The Orion-Tr 24/48-2.5A incorporates galvanic isolation rated at 200V DC between the input, output and case. This provides electrical separation between connected circuits, helping improve system compatibility and reduce unwanted electrical interference.
The integrated remote on/off terminal eliminates the need for a high-current switch in the main input wiring. The converter can be controlled using a low-power switch or an appropriate engine run/stop signal, making it easier to integrate into vehicle and marine electrical systems.
The adjustable output voltage can be configured between 40V and 60V DC, allowing the converter to accommodate different equipment requirements. Its buck-boost regulation helps maintain a consistent output voltage despite variations in the incoming battery supply.
Built-in short-circuit protection helps safeguard the converter against electrical faults, while thermal protection automatically reduces output current when operating temperatures become elevated. This helps protect the internal electronics and maintain reliable operation.
Multiple Orion-Tr converters can be connected in parallel to increase the available output current. An unlimited number of compatible units can be connected in parallel, providing flexibility when designing larger electrical installations.
The screw-terminal connections allow straightforward installation without specialist connector tools. The IP43 protection rating applies when the converter is installed with its screw terminals facing downwards.
Please note that this is a voltage converter rather than a dedicated multi-stage battery charger. For automatic battery charging with configurable charging programmes, Victron Energy's Orion-Tr Smart DC-DC charger range is the appropriate alternative.
Product Specifications
Manufacturer: Victron Energy
Product Name: Orion-Tr 24/48-2.5A Isolated DC-DC Converter
Manufacturer Part Number: ORI244810110
Product Series: Orion-Tr
Nominal Input Voltage: 24V DC
Input Voltage Range: 16–35V DC
Undervoltage Shutdown: 14V
Undervoltage Restart: 15V
Nominal Output Voltage: 48.2V DC
Adjustable Output Voltage: 40–60V DC
Output Voltage Tolerance: ±0.2V
Output Noise: 2mV RMS
Continuous Output Current: 2.5A at 25°C
Maximum Output Current: 3A for 10 seconds
Short-Circuit Output Current: 19A
Continuous Output Power at 25°C: 120W
Continuous Output Power at 40°C: 115W
Maximum Efficiency: 88%
No-Load Input Current: Less than 120mA
Remote Off Current: Less than 200µA
Galvanic Isolation: 200V DC between input, output and case
Remote On/Off: Yes
Short-Circuit Protection: Yes
Thermal Protection: Yes
Parallel Operation: Yes, unlimited compatible units
DC Connections: Screw terminals
Maximum Cable Cross-Section: 6mm² (AWG 10)
Protection Rating: IP43 when installed with terminals facing downwards
Operating Temperature: -20°C to +55°C
Temperature Derating: 3% per °C above 40°C
Maximum Relative Humidity: 95%, non-condensing
Dimensions (H x W x D): 100 x 113 x 47mm
Weight: 0.42kg
Why Choose Victron Energy?
Victron Energy is internationally recognised for manufacturing high-quality power conversion, battery management and off-grid electrical equipment. Its Orion-Tr range combines dependable performance, efficient voltage regulation and practical installation features for professional and recreational electrical applications.
The Victron Energy ORI244810110 is an excellent choice for anyone requiring a reliable isolated 24V to 48V DC-DC converter. With its 2.5A continuous output, 120W power capacity, adjustable voltage and galvanic isolation, it provides a versatile solution for powering 48V equipment from a 24V electrical system.
Whether you are upgrading a commercial vehicle electrical installation, powering specialist marine equipment, installing industrial control electronics or designing an off-grid power system, the Victron Orion-Tr delivers dependable and regulated DC power.
