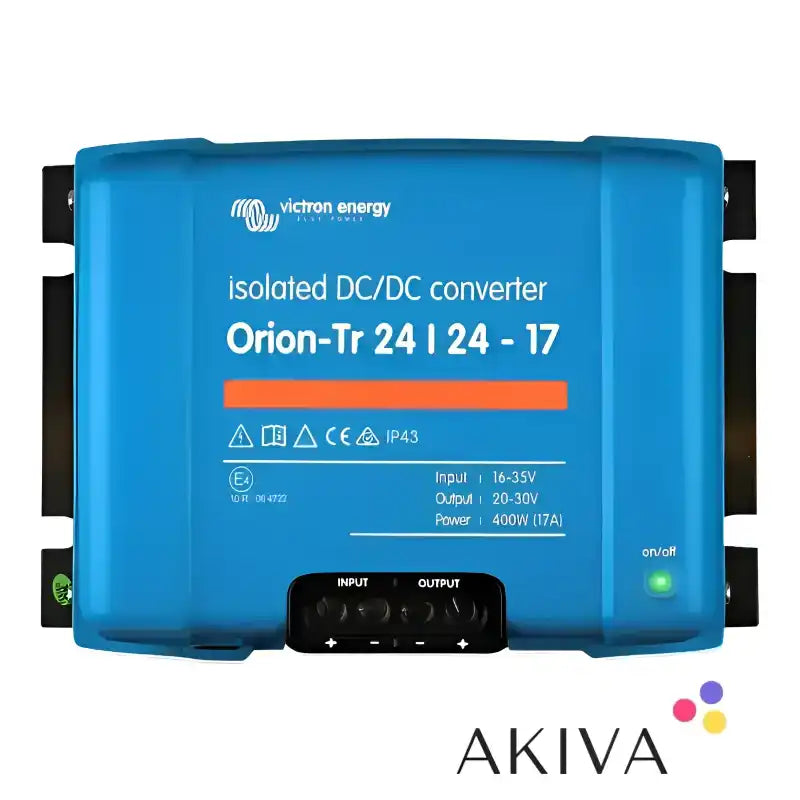

Victron Energy Orion-Tr 24/24-17A (400W) Isolated DC-DC Converter – ORI242441110
Victron Energy Orion-Tr 24/24-17A (400W) Isolated DC-DC Converter – ORI242441110
Couldn't load pickup availability
Product Overview
The Victron Energy Orion-Tr 24/24-17A (400W) Isolated DC-DC Converter (ORI242441110) is a powerful and versatile voltage converter designed to provide a stable, regulated 24V DC output from a 24V battery supply. Delivering up to 17A of continuous output current and 400W of power at 40°C, this converter is an excellent solution for electrical systems requiring a reliable and consistent 24V power supply.
Part of Victron Energy's established Orion-Tr range, this isolated DC-DC converter combines efficient voltage regulation with galvanic isolation, adjustable output voltage and remote on/off functionality. Its robust construction and integrated electrical protection make it suitable for demanding applications in commercial vehicles, trucks, buses, boats, marine installations, industrial equipment and off-grid electrical systems.
Although the input and output are both nominally 24V, the Orion-Tr provides regulated voltage conversion rather than simply passing through the incoming battery voltage. This makes it particularly useful for powering sensitive 24V electrical equipment that requires a stable and adjustable DC supply.
Usage and Applications
The Victron Orion-Tr 24/24-17A is designed for installations where a regulated 24V DC output is required from an existing 24V battery system. It is particularly suitable for commercial vehicles, motorhomes, campervans, trucks, buses, boats, industrial machinery and independent off-grid electrical installations.
The converter can power a wide range of compatible 24V electrical equipment, including lighting systems, communication devices, navigation electronics, monitoring equipment, control systems and other electrical accessories. Its adjustable output voltage allows the supply to be configured to match the requirements of connected equipment.
With an adjustable output voltage range of 20V to 30V, the Orion-Tr provides additional flexibility when working with sensitive electronic equipment or installations where voltage drop across longer cable runs needs to be compensated for.
The galvanically isolated design is particularly beneficial in vehicle and marine electrical systems where electrical separation between input and output circuits is important. This helps reduce unwanted ground loops and electrical interference.
Technical Information and Features
The Orion-Tr 24/24-17A incorporates galvanic isolation rated at 200V DC between the input, output and case. This provides electrical separation between connected circuits, helping improve system compatibility and reduce unwanted electrical interference in complex installations.
The integrated remote on/off terminal eliminates the need for a high-current switch in the main input wiring. The converter can be controlled using a low-power switch or an appropriate engine run/stop signal, making it easier to integrate into vehicle and marine electrical systems.
The adjustable output voltage can be configured between 20V and 30V DC, allowing the converter to accommodate different equipment requirements and compensate for voltage losses in electrical wiring.
Built-in short-circuit protection helps safeguard the converter against electrical faults, while integrated thermal protection automatically reduces output current when operating temperatures become elevated. This helps protect the internal electronics and maintain reliable operation.
Multiple Orion-Tr converters can be connected in parallel to increase the available output current. An unlimited number of compatible units can be connected in parallel, providing flexibility when designing larger electrical installations requiring additional power capacity.
The screw-terminal connections allow straightforward installation without specialist connector tools. The IP43 protection rating applies when the converter is installed with its screw terminals facing downwards.
Product Specifications
Manufacturer: Victron Energy
Product Name: Orion-Tr 24/24-17A Isolated DC-DC Converter
Manufacturer Part Number: ORI242441110
Product Series: Orion-Tr
Nominal Input Voltage: 24V DC
Input Voltage Range: 20–35V DC
Undervoltage Shutdown: 14V
Undervoltage Restart: 15V
Nominal Output Voltage: 24.2V DC
Adjustable Output Voltage: 20–30V DC
Output Voltage Tolerance: ±0.2V
Output Noise: 2mV RMS
Continuous Output Current: 17A at 40°C
Maximum Output Current: 25A for 10 seconds
Short-Circuit Output Current: 40A
Continuous Output Power at 25°C: 480W
Continuous Output Power at 40°C: 400W
Maximum Efficiency: 89%
No-Load Input Current: Less than 80mA
Galvanic Isolation: 200V DC between input, output and case
Remote On/Off: Yes
Short-Circuit Protection: Yes
Thermal Protection: Yes
DC Connections: Screw terminals
Maximum Cable Cross-Section: 16mm² (AWG 6)
Protection Rating: IP43 when installed with terminals facing downwards
Operating Temperature: -20°C to +55°C
Temperature Derating: 3% per °C above 40°C
Maximum Relative Humidity: 95%, non-condensing
Dimensions (H x W x D): 130 x 186 x 70mm
Weight: 1.6kg
Why Choose Victron Energy?
Victron Energy is internationally recognised for manufacturing high-quality power conversion, battery management and off-grid electrical equipment. Its Orion-Tr range combines dependable performance, efficient voltage regulation and practical installation features for professional and recreational electrical applications.
The Victron Energy ORI242441110 is an excellent choice for anyone requiring a high-capacity isolated 24V to 24V DC-DC converter. With its 17A continuous output, 400W power capacity, adjustable voltage and galvanic isolation, it provides a versatile and reliable solution for maintaining a stable 24V electrical supply.
Whether you are upgrading a commercial vehicle electrical system, powering sensitive marine equipment, installing industrial control electronics or designing a larger off-grid power installation, the Victron Orion-Tr delivers dependable and regulated DC power.
