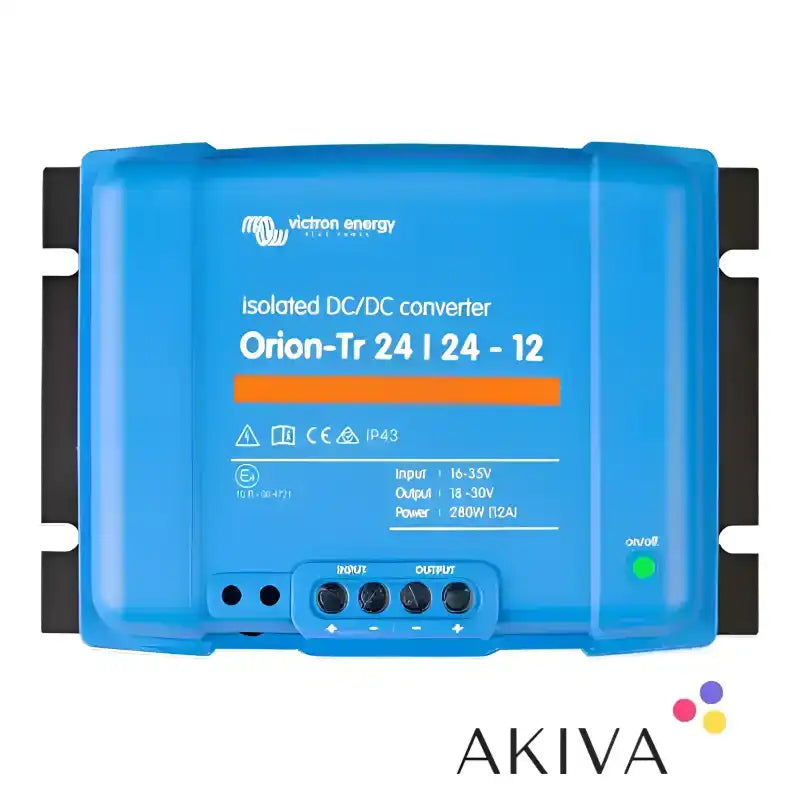

Victron Energy Orion-Tr 24/24-12A (280W) Isolated DC-DC Converter – ORI242428110

Victron Energy Orion-Tr 24/24-12A (280W) Isolated DC-DC Converter – ORI242428110

Regular price £83.16 GBP
Regular price £132.00 GBP Sale price £83.16 GBP
Sale Sold out
Taxes included. Shipping calculated at checkout.

Product Overview

The Victron Energy Orion-Tr 24/24-12A (280W) Isolated DC-DC Converter (ORI242428110) is a high-quality, reliable voltage converter designed to provide a stable and regulated 24V DC output from a 24V battery supply. Delivering up to 12A of continuous output current and 280W of power at 40°C, this converter is an excellent solution for electrical systems requiring a consistent 24V power supply.

Part of Victron Energy's trusted Orion-Tr range, this isolated DC-DC converter features galvanic isolation, adjustable output voltage and remote on/off functionality. Its robust construction and integrated electrical protection make it suitable for commercial vehicles, trucks, buses, boats, marine electrical systems, industrial equipment and off-grid power installations.

Although the input and output are both nominally 24V, the Orion-Tr provides regulated voltage conversion rather than simply passing through the incoming battery voltage. This makes it particularly useful for powering sensitive 24V equipment that requires a stable and adjustable DC supply.

Usage and Applications

The Victron Orion-Tr 24/24-12A is designed for electrical installations where a regulated 24V DC output is required from an existing 24V battery system. It is particularly suitable for commercial vehicles, motorhomes, boats, marine installations, industrial machinery and independent off-grid electrical systems.

The converter can be used to power 24V lighting systems, communication equipment, navigation electronics, monitoring devices, control systems and other compatible electrical accessories. Its adjustable output voltage allows the supply to be configured to suit the requirements of connected equipment.

With an adjustable output range of 20V to 30V, the Orion-Tr provides flexibility when working with different 24V electrical components. Galvanic isolation also makes it suitable for installations where electrical separation between input and output circuits is important.

This model is a voltage converter rather than a dedicated multi-stage battery charger. For automatic battery charging with configurable charging programmes, Victron Energy's Orion-Tr Smart DC-DC charger range is a more appropriate choice.

Technical Information and Features

The Orion-Tr 24/24-12A incorporates galvanic isolation rated at 200V DC between the input, output and case. This provides electrical separation between connected circuits, helping reduce unwanted ground loops and electrical interference in complex electrical installations.

The integrated remote on/off terminal eliminates the need for a high-current switch in the main input wiring. The converter can be controlled using a low-power switch or an appropriate engine run/stop signal, making it easier to integrate into vehicle and marine electrical systems.

The adjustable output voltage allows the converter to be configured between 20V and 30V DC, providing greater flexibility when powering sensitive 24V equipment.

Built-in short-circuit protection helps protect the converter against electrical faults, while integrated thermal protection automatically reduces output current when operating temperatures become elevated. This helps protect the internal electronics and maintain reliable operation.

Multiple Orion-Tr converters can be connected in parallel to increase the available output current. An unlimited number of compatible units can be connected in parallel, providing flexibility when designing larger electrical installations.

The screw-terminal connections allow straightforward installation without specialist connector tools. The IP43 protection rating applies when the converter is installed with its screw terminals facing downwards.

Product Specifications

Manufacturer: Victron Energy

Product Name: Orion-Tr 24/24-12A Isolated DC-DC Converter

Manufacturer Part Number: ORI242428110

Product Series: Orion-Tr

Nominal Input Voltage: 24V DC

Input Voltage Range: 16–35V DC

Undervoltage Shutdown: 14V

Undervoltage Restart: 15V

Nominal Output Voltage: 24.2V DC

Adjustable Output Voltage: 20–30V DC

Output Voltage Tolerance: ±0.2V

Output Noise: 2mV RMS

Continuous Output Current: 12A at 40°C

Maximum Output Current: 15A for 10 seconds

Short-Circuit Output Current: 30A

Continuous Output Power at 25°C: 320W

Continuous Output Power at 40°C: 280W

Maximum Efficiency: 89%

No-Load Input Current: Less than 80mA

Galvanic Isolation: 200V DC between input, output and case

Remote On/Off: Yes

Short-Circuit Protection: Yes

Thermal Protection: Yes

DC Connections: Screw terminals

Maximum Cable Cross-Section: 16mm² (AWG 6)

Protection Rating: IP43 when installed with terminals facing downwards

Operating Temperature: -20°C to +55°C

Temperature Derating: 3% per °C above 40°C

Maximum Relative Humidity: 95%, non-condensing

Dimensions (H x W x D): 130 x 186 x 70mm

Weight: 1.3kg

Why Choose Victron Energy?

Victron Energy is internationally recognised for manufacturing high-quality power conversion, battery management and off-grid electrical equipment. Its Orion-Tr range combines dependable performance, efficient voltage regulation and practical installation features for professional and recreational electrical applications.

The Victron Energy ORI242428110 is an excellent choice for anyone requiring a reliable isolated 24V to 24V DC-DC converter. With its 12A continuous output, 280W power capacity, adjustable voltage and galvanic isolation, it provides a versatile solution for maintaining a stable 24V electrical supply.

Whether you are upgrading a commercial vehicle electrical system, powering sensitive marine equipment, installing industrial control electronics or designing an off-grid power installation, the Victron Orion-Tr provides dependable regulated DC power.

SKU:ORI242428110
