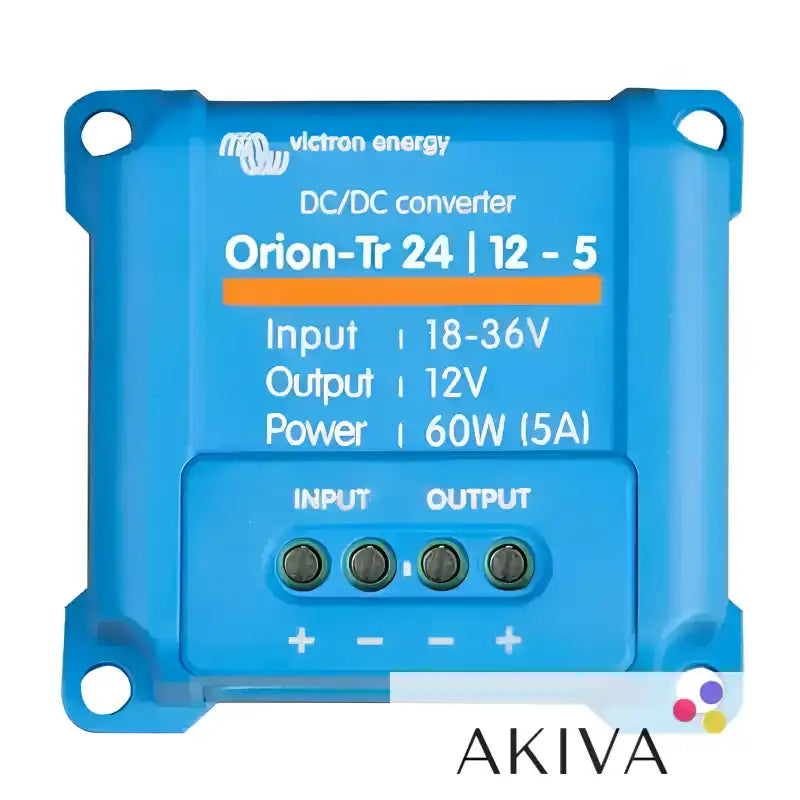

Victron Energy Orion-Tr 24/12-5 DC-DC Converter 60W – ORI241205200R

Victron Energy Orion-Tr 24/12-5 DC-DC Converter 60W – ORI241205200R

Regular price £11.35 GBP
Regular price £18.01 GBP Sale price £11.35 GBP
Sale Sold out
Taxes included. Shipping calculated at checkout.


Product Overview

The Victron Energy Orion-Tr 24/12-5 DC-DC Converter (ORI241205200R) is a compact, high-efficiency voltage converter designed to convert a 24V DC power supply into a regulated 12V output. Delivering a continuous output current of 5A and up to 60W of power, it provides a dependable solution for operating 12V electrical equipment from a 24V battery system.

Part of Victron Energy's Orion-Tr range, this non-isolated DC-DC converter uses synchronous rectification technology to achieve an efficiency exceeding 95% at full load. Its compact construction and convenient screw-terminal connections make it straightforward to install in a wide range of electrical systems.

The Orion-Tr is particularly suitable for marine, automotive, commercial vehicle and off-grid applications where reliable voltage conversion is required. Its IP43 protection rating provides protection against water spray when installed with the screw terminals facing downwards.

The ORI241205200R is the retail version of the ORI241205200, offering the same electrical performance and technical specifications.

Usage and Applications

The Victron Energy Orion-Tr 24/12-5 is designed to provide a 12V DC supply from a 24V battery bank or power source. It allows compatible 12V electrical equipment to operate within a 24V installation without requiring a separate 12V battery system.

It is ideal for boats, yachts, campervans, motorhomes, commercial vehicles, industrial equipment and off-grid electrical systems. Typical applications include powering 12V lighting, navigation instruments, communication equipment, monitoring devices, control systems and other low-power DC appliances.

In marine installations, the converter provides a practical way to operate 12V electronics from a 24V onboard electrical system. For campervans and commercial vehicles, it allows compatible 12V accessories to operate directly from the vehicle's 24V supply.

The converter provides 5A of continuous output current and up to 60W of power. Multiple Orion-Tr units can be connected in parallel to increase the available output current where a larger 12V supply is required.

Technical Information

The Orion-Tr 24/12-5 uses synchronous rectification technology to provide efficient DC-DC voltage conversion. It accepts an input voltage between 18V and 35V DC and produces a nominal 12.7V output.

With a continuous output current of 5A, the converter delivers up to 60W of continuous output power. Its efficiency exceeds 95% at full load, helping minimise energy losses and reduce unwanted heat generation.

This is a non-isolated converter, meaning the input and output share a common negative connection. This should be considered when designing the electrical installation.

The unit features convenient screw-terminal connections, allowing straightforward installation without specialist tools. It is short-circuit proof and incorporates protection against overheating. An appropriately rated external fuse should be installed in the input supply.

The IP43 protection rating applies when the converter is mounted with its screw terminals facing downwards. Its operating temperature range is -20°C to +55°C, with output derating required above 40°C.

Product Specifications

Manufacturer: Victron Energy

Product Code: ORI241205200R

Product Range: Orion-Tr

Product Type: Non-isolated DC-DC converter

Conversion: 24V DC to 12V DC

Nominal Input Voltage: 24V DC

Input Voltage Range: 18–35V DC

Output Voltage: 12.7V DC

Maximum Continuous Output Current: 5A

Maximum Output Current: 7A

Maximum Continuous Output Power: 60W

Efficiency: Greater than 95% at full load

Galvanic Isolation: Non-isolated

Short-Circuit Protection: Yes

Protection Rating: IP43 when installed with terminals facing downwards

Operating Temperature Range: -20°C to +55°C

Temperature Derating: 3% per °C above 40°C

DC Connections: Screw terminals

Maximum Cable Cross-Section: 3.3mm²

Dimensions: 53 x 51 x 27mm

Weight: Approximately 90g

Why Choose Victron Energy?

Victron Energy is internationally recognised for producing high-quality power conversion, battery charging and energy management equipment for marine, automotive, industrial and off-grid applications.

The Orion-Tr 24/12-5 combines compact dimensions, efficient voltage conversion and straightforward installation in a dependable DC-DC converter. Its ability to provide a stable 12V supply from a 24V battery system makes it an excellent choice for smaller electrical loads in boats, vehicles, motorhomes and off-grid installations.

Whether upgrading an existing electrical system or designing a new installation, the Victron Energy Orion-Tr provides a practical and efficient solution for 24V to 12V voltage conversion.
