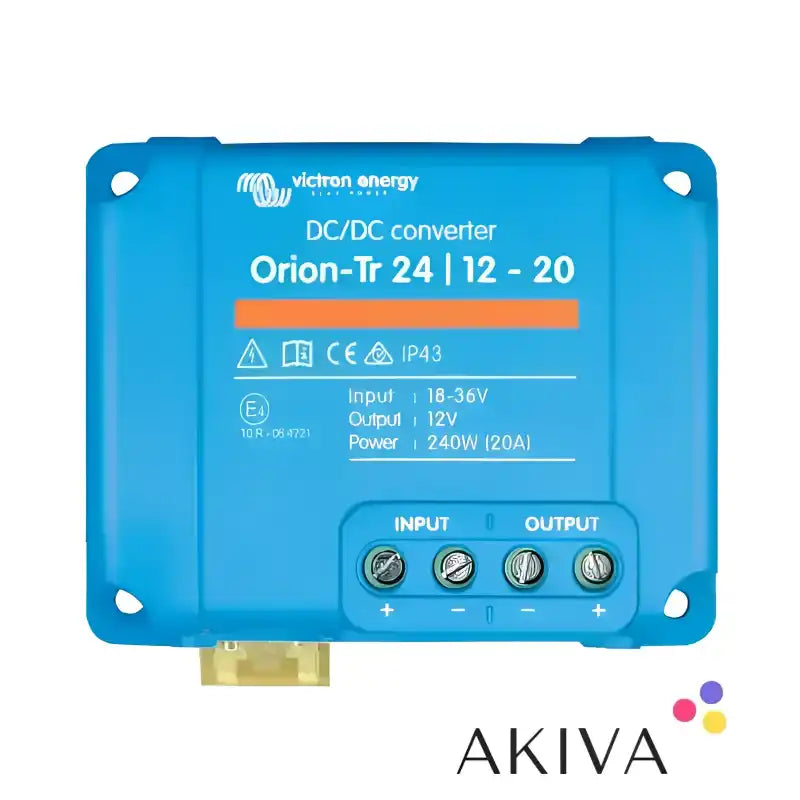

Victron Energy Orion-Tr 24/12-20A (240W) Isolated DC-DC Converter – ORI241224110

Victron Energy Orion-Tr 24/12-20A (240W) Isolated DC-DC Converter – ORI241224110

Regular price £83.16 GBP
Regular price £132.00 GBP Sale price £83.16 GBP
Sale Sold out
Taxes included. Shipping calculated at checkout.

Product Overview

The Victron Energy Orion-Tr 24/12-20A (240W) Isolated DC-DC Converter (ORI241224110) is a high-quality, reliable voltage converter designed to transform a 24V DC battery supply into a regulated 12V DC output. Delivering up to 20A of continuous output current and 240W of continuous power at 40°C, this converter provides an effective solution for powering 12V electrical equipment from a 24V battery system.

Part of Victron Energy's highly regarded Orion-Tr range, this isolated DC-DC converter features advanced voltage regulation, galvanic isolation and built-in electrical protection. Its adjustable output voltage and remote on/off functionality make it suitable for a wide range of professional electrical installations, including commercial vehicles, motorhomes, boats, marine systems and off-grid power applications.

Usage and Applications

The Victron Orion-Tr 24/12-20A converter is designed for installations where 12V electrical equipment needs to operate from a 24V battery bank or power supply. It is particularly useful in larger motorhomes, campervans, commercial vehicles, boats, industrial installations and independent off-grid electrical systems.

By converting 24V DC into a stable 12V supply, the Orion-Tr allows users to operate compatible 12V appliances and accessories without requiring a separate 12V battery bank. Typical applications include powering lighting systems, communication equipment, electronic devices, vehicle accessories, monitoring equipment and other 12V electrical components.

The adjustable output voltage, which can be configured between 10V and 15V, provides additional flexibility when matching the converter to specific equipment requirements.

The galvanically isolated design is particularly beneficial in marine and vehicle installations, where electrical separation between input and output circuits can help prevent unwanted ground loops and reduce electrical interference.

Please note that this is a DC-DC voltage converter rather than a dedicated multi-stage battery charger. For automatic battery charging, Victron Energy's Orion-Tr Smart DC-DC charger range is the appropriate alternative.

Technical Information and Features

The Orion-Tr 24/12-20A incorporates galvanic isolation rated at 200V DC between the input, output and case. This electrical separation helps improve system compatibility and reduces the risk of unwanted electrical interference in complex installations.

The integrated remote on/off terminal eliminates the need for a high-current switch in the main input wiring. The converter can be controlled using a low-power switch or an appropriate engine run/stop signal, making it easier to integrate into vehicle electrical systems.

The unit is short-circuit protected and features thermal protection to help safeguard the electronics during operation. When ambient temperatures increase, the converter automatically reduces its output current to maintain safe operating conditions.

Multiple Orion-Tr converters can be connected in parallel to increase the available output current. Victron Energy permits an unlimited number of compatible units to be connected in parallel, providing flexibility when designing higher-capacity DC power systems.

The screw-terminal connections make installation straightforward without requiring specialist connector tools. The IP43 protection rating applies when the converter is installed with its screw terminals facing downwards.

Product Specifications

Manufacturer: Victron Energy

Product Name: Orion-Tr 24/12-20A Isolated DC-DC Converter

Manufacturer Part Number: ORI241224110

Product Series: Orion-Tr

Nominal Input Voltage: 24V DC

Input Voltage Range: 16–35V DC

Undervoltage Shutdown: 14V

Undervoltage Restart: 15V

Nominal Output Voltage: 12.2V DC

Adjustable Output Voltage: 10–15V DC

Output Voltage Tolerance: ±0.2V

Continuous Output Current: 20A at 40°C

Maximum Output Current: 25A for 10 seconds

Continuous Output Power at 25°C: 300W

Continuous Output Power at 40°C: 240W

Short-Circuit Output Current: 50A

Maximum Efficiency: 88%

Output Noise: 2mV RMS

No-Load Input Current: Less than 100mA

Galvanic Isolation: 200V DC between input, output and case

Remote On/Off: Yes

Short-Circuit Protection: Yes

Thermal Protection: Yes

DC Connections: Screw terminals

Maximum Cable Cross-Section: 16mm² (AWG 6)

Protection Rating: IP43 when installed with terminals facing downwards

Operating Temperature: -20°C to +55°C

Temperature Derating: 3% per °C above 40°C

Maximum Relative Humidity: 95%, non-condensing

Dimensions (H x W x D): 130 x 186 x 70mm

Weight: 1.3kg

Why Choose Victron Energy?

Victron Energy is a globally recognised manufacturer of professional power conversion, battery management and off-grid electrical equipment. Its Orion-Tr range is designed to deliver dependable performance, efficient voltage conversion and practical installation features for demanding electrical environments.

The Victron Energy ORI241224110 is an excellent choice for anyone requiring a powerful and reliable isolated 24V to 12V DC-DC converter. With its 20A continuous output, adjustable voltage, galvanic isolation and remote switching capability, it provides a versatile solution for vehicle, marine, industrial and off-grid power installations.

Whether you are upgrading a motorhome electrical system, installing 12V equipment in a commercial vehicle, powering accessories on a boat or designing a larger off-grid electrical installation, the Victron Orion-Tr provides dependable DC power conversion.
