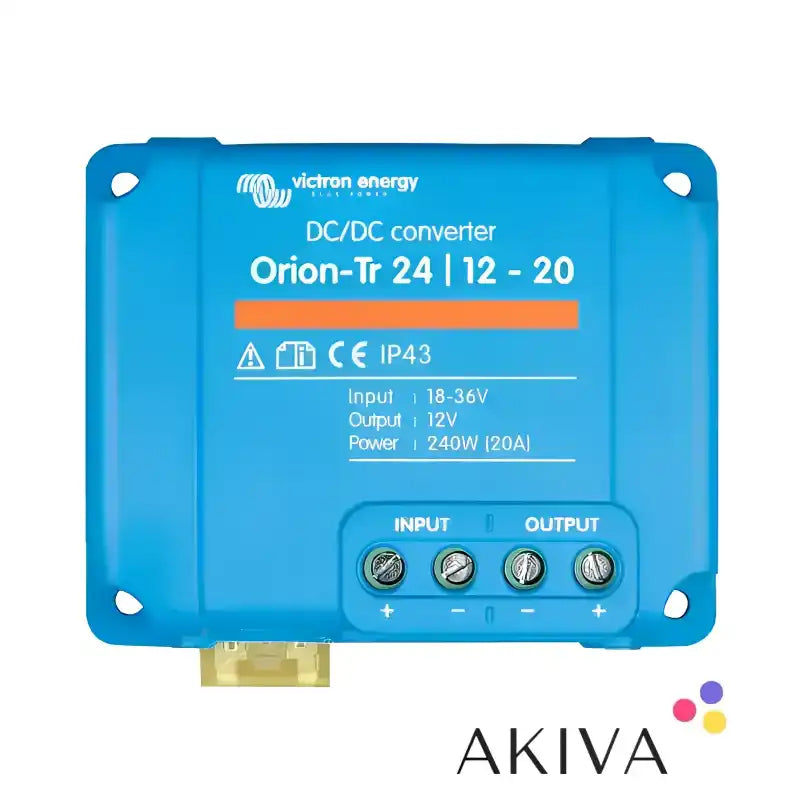

Victron Energy Orion-Tr 24/12-20 DC-DC Converter 240W – ORI241220200

Victron Energy Orion-Tr 24/12-20 DC-DC Converter 240W – ORI241220200

Regular price £30.24 GBP
Regular price £48.00 GBP Sale price £30.24 GBP
Sale Sold out
Taxes included. Shipping calculated at checkout.

Product Overview

The Victron Energy Orion-Tr 24/12-20 (240W) DC-DC Converter – ORI241220200 is a high-efficiency voltage converter designed to convert a 24V DC power supply into a stable, regulated 12V output. Delivering 20A of continuous output current and up to 240W of power, it provides a reliable solution for operating 12V electrical equipment from a 24V battery system.

Part of Victron Energy's popular Orion-Tr range, this non-isolated DC-DC converter uses advanced synchronous rectification technology to achieve excellent energy efficiency, reaching up to 97%. Its compact construction, screw-terminal connections and dependable voltage conversion make it suitable for a wide range of professional electrical installations.

The ORI241220200 is particularly useful in applications where a 24V battery system needs to supply 12V equipment, including marine installations, commercial vehicles, motorhomes, campervans and off-grid power systems.

Usage and Applications

The Victron Orion-Tr 24/12-20 is designed for electrical systems where 12V appliances and accessories need to operate from a 24V DC battery supply. It reduces the input voltage and provides a regulated 12V output, helping ensure connected equipment receives a consistent power supply.

In motorhomes, campervans and commercial vehicles, the converter can supply 12V lighting, communication equipment, control systems, monitoring devices and other compatible accessories from a 24V electrical system. For marine applications, it can provide 12V power for suitable navigation equipment, onboard electronics, lighting and auxiliary electrical systems.

It is also suitable for industrial installations, mobile workshops, renewable energy systems and off-grid applications where reliable 24V to 12V power conversion is required.

Multiple compatible Orion-Tr units can be connected in parallel to increase the available output current, providing additional flexibility for larger electrical installations.

Technical Information

The Orion-Tr 24/12-20 uses synchronous rectification technology to provide high conversion efficiency, exceeding 95% at full load and reaching a maximum efficiency of approximately 97%. This helps minimise energy losses and heat generation during operation.

The converter accepts an input voltage between 18V and 35V DC and provides a nominal regulated output of 12.5V DC. It delivers 20A of continuous output current, with a maximum output current of 25A.

As a non-isolated converter, the input and output share a common negative connection. This should be considered when designing the electrical installation, as galvanic isolation between the two circuits is not provided.

The Orion-Tr features short-circuit protection and is designed for straightforward installation using screw-terminal connections. No specialist connection tools are required. Its IP43 protection rating applies when the unit is installed with the screw terminals facing downwards.

Technical Specifications

Brand: Victron Energy

Product Range: Orion-Tr DC-DC Converters

Model: Orion-Tr 24/12-20

Manufacturer Part Number: ORI241220200

Product Type: Non-isolated DC-DC converter

Nominal Input Voltage: 24V DC

Input Voltage Range: 18–35V DC

Output Voltage: 12.5V DC

Continuous Output Current: 20A

Maximum Output Current: 25A

Rated Output Power: 240W

Maximum Efficiency: 97%

Galvanic Isolation: No

Off-Load Current: Less than 35mA

Operating Temperature Range: -20°C to +55°C

Temperature Derating: 3% per °C above 40°C

DC Connections: Screw terminals

Maximum Cable Cross-Section: 6mm² (AWG 10)

Protection Rating: IP43 when installed with screw terminals facing downwards

Dimensions (H × W × D): 73 × 94 × 45mm

Weight: Approximately 0.25kg

Safety Standard: EN 60950

Automotive Compliance: ECE R10-4

Why Choose the Victron Energy Orion-Tr 24/12-20?

The Victron Energy Orion-Tr 24/12-20 offers an efficient and dependable solution for converting 24V battery power into a regulated 12V supply. Its 20A continuous output makes it suitable for installations requiring more capacity than smaller DC-DC converters can provide.

With high conversion efficiency, compact dimensions, simple screw-terminal installation and the ability to connect compatible units in parallel, it is a versatile choice for marine, vehicle, industrial and off-grid electrical systems.

Whether you are upgrading an existing 24V installation or designing a new power system, the Victron Orion-Tr 24/12-20 provides reliable DC voltage conversion backed by Victron Energy's established reputation for quality power electronics.
