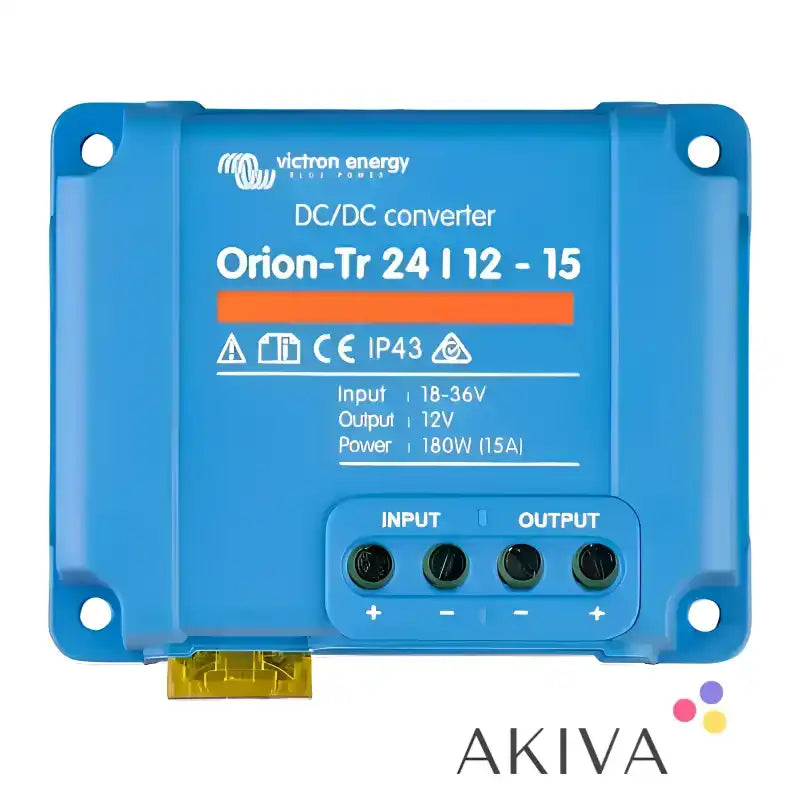

Victron Energy Orion-Tr 24/12-15 DC-DC Converter 180W – ORI241215200R
Victron Energy Orion-Tr 24/12-15 DC-DC Converter 180W – ORI241215200R
Couldn't load pickup availability
Product Overview
The Victron Energy Orion-Tr 24/12-15 (180W) DC-DC Converter – ORI241215200R is a high-efficiency voltage converter designed to step down a 24V DC power supply to a regulated 12V output. Delivering up to 15A of continuous output current and a maximum efficiency of 97%, it provides a dependable solution for powering 12V electrical equipment from a 24V battery system.
Designed for professional, marine, vehicle and off-grid electrical installations, the Orion-Tr combines compact dimensions with reliable performance and straightforward installation. Its non-isolated design provides a common negative connection between the input and output, making it suitable for compatible electrical systems where galvanic isolation is not required.
This R-suffix model, ORI241215200R, is the retail-packaged version of the Victron Orion-Tr 24/12-15 DC-DC converter and offers the same electrical performance as the standard model.
Usage and Applications
The Victron Orion-Tr 24/12-15 is ideal for installations where 12V equipment needs to operate from an existing 24V electrical system. It provides a stable, regulated supply for 12V lighting, communication equipment, control systems, monitoring devices and other compatible DC-powered accessories.
In motorhomes, campervans and commercial vehicles, it can supply 12V appliances and auxiliary equipment from a 24V vehicle battery system. For marine applications, it can power suitable 12V navigation equipment, lighting and onboard electronics from a 24V supply. It is also suitable for compatible industrial, commercial and off-grid installations where reliable 24V to 12V power conversion is required.
The adjustable output voltage makes the Orion-Tr particularly versatile, allowing it to be configured for applications such as charging a 12V starter or auxiliary battery from a 24V system, provided the correct charging voltage and battery requirements are observed.
Technical Information
The Orion-Tr uses synchronous rectification to achieve high conversion efficiency, exceeding 95% at full load and reaching a maximum efficiency of approximately 97%. This helps reduce energy losses and unwanted heat during operation.
Its output voltage can be adjusted to suit the requirements of the connected equipment or compatible battery system. The remote on/off connection allows the converter to be controlled using a low-current switch or a suitable engine run/stop signal, removing the need for a high-current switch in the input wiring.
The converter is short-circuit protected, and multiple compatible units can be connected in parallel to increase the available output current. Screw-terminal connections simplify installation without requiring specialist connection tools.
The unit has an IP43 protection rating when installed with the screw terminals facing downwards. Correct mounting orientation is therefore important when planning the installation.
Technical Specifications
Product Brand: Victron Energy
Product Range: Orion-Tr DC-DC Converters
Model: Orion-Tr 24/12-15
Manufacturer Part Number: ORI241215200R
Product Type: Non-isolated DC-DC converter
Packaging: Retail packaged version
Nominal Input Voltage: 24V DC
Input Voltage Range: 18–35V DC
Nominal Output Voltage: 12V DC
Specified Output Voltage: 12.5V DC
Continuous Output Current: 15A
Maximum Output Current: 20A
Rated Output Power: 180W
Maximum Efficiency: 97%
Galvanic Isolation: No
Off-Load Current: Less than 35mA
Output Voltage Adjustment: Yes
Remote On/Off Connection: Yes
Short-Circuit Protection: Yes
Parallel Operation: Yes
Protection Rating: IP43 when installed with screw terminals facing downwards
Operating Temperature Range: -20°C to +55°C
Temperature Derating: 3% per °C above 40°C
DC Connections: Screw terminals
Maximum Cable Cross-Section: 6mm² (AWG 10)
Dimensions (H × W × D): 73 × 94 × 45mm
Weight: Approximately 250g
Warranty: 5-year limited warranty
Why Choose the Victron Energy Orion-Tr 24/12-15?
The Victron Orion-Tr 24/12-15 offers an efficient and dependable way to operate 12V electrical equipment from a 24V DC power source. Its adjustable output, remote on/off facility, short-circuit protection and parallel connection capability provide flexibility for a wide range of electrical installations.
With its compact design, high conversion efficiency and proven Victron Energy engineering, it is a practical choice for marine, motorhome, campervan, commercial vehicle, industrial and off-grid power systems.
