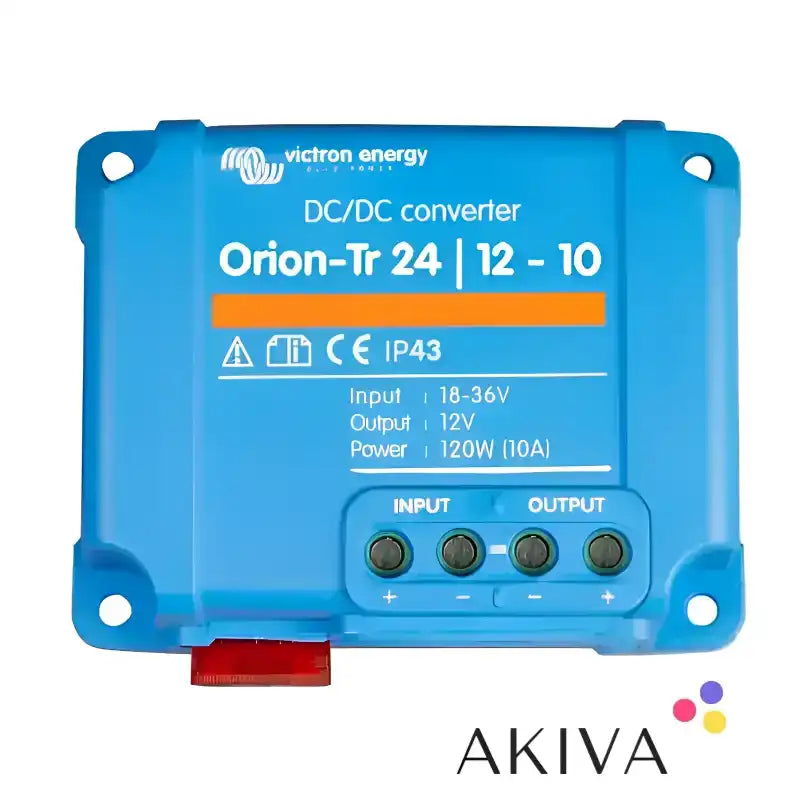

Victron Energy Orion-Tr 24/12-10 DC-DC Converter 120W – ORI241210200R

Victron Energy Orion-Tr 24/12-10 DC-DC Converter 120W – ORI241210200R

Regular price £24.19 GBP
Regular price £38.40 GBP Sale price £24.19 GBP
Sale Sold out
Taxes included. Shipping calculated at checkout.


Product Overview

The Victron Energy Orion-Tr 24/12-10 DC-DC Converter (ORI241210200R) is a compact, high-efficiency voltage converter designed to convert a 24V DC power supply into a regulated 12V output. Delivering a continuous output current of 10A and up to 120W of power, it provides a reliable solution for operating 12V electrical equipment from a 24V battery system.

Part of Victron Energy's Orion-Tr range, this non-isolated DC-DC converter uses advanced synchronous rectification technology to achieve an efficiency of up to 97%. Its compact design, convenient screw-terminal connections and straightforward installation make it suitable for a wide variety of electrical applications.

The Orion-Tr is particularly useful in marine, automotive, commercial vehicle and off-grid installations where reliable voltage conversion is required. Its IP43 protection rating provides protection against water spray when installed with the screw terminals facing downwards.

The ORI241210200R is the retail-packaged version of the ORI241210200, offering the same electrical performance and technical specifications.

Usage and Applications

The Victron Energy Orion-Tr 24/12-10 is designed to provide a regulated 12V DC supply from a 24V battery bank or power source. It allows compatible 12V electrical equipment to operate within a 24V installation without requiring a separate 12V battery system.

It is ideal for boats, yachts, campervans, motorhomes, commercial vehicles, industrial equipment and off-grid electrical systems. Typical applications include powering 12V lighting, navigation instruments, communication equipment, monitoring devices, control systems and other compatible electrical appliances.

In marine installations, the converter provides a practical way to operate 12V electronics from a 24V onboard electrical system. For campervans and commercial vehicles, it allows compatible 12V accessories to operate directly from the vehicle's 24V supply.

With a continuous output capacity of 10A and a maximum output current of 12A, the Orion-Tr provides up to 120W of continuous power. Multiple compatible Orion-Tr converters can be connected in parallel to increase the available output current where a larger 12V supply is required.

Technical Information

The Orion-Tr 24/12-10 uses synchronous rectification technology to provide efficient DC-DC voltage conversion. It accepts an input voltage between 18V and 35V DC and produces a regulated 12.5V DC output.

With a continuous output current of 10A, the converter delivers up to 120W of continuous output power. Its maximum efficiency of 97% helps minimise energy losses and reduce unwanted heat generation during operation.

The non-isolated design means the input and output share a common negative connection. This should be considered when planning the electrical installation.

An integrated remote on/off connection allows the converter to be controlled using a low-power switch or an appropriate engine run/stop signal, eliminating the need for a high-current switch in the input wiring.

The unit features screw-terminal connections for straightforward installation without specialist tools. It is short-circuit proof and incorporates protection against overheating. An appropriately rated external fuse should be installed in the input supply.

The IP43 protection rating applies when the converter is mounted with its screw terminals facing downwards. Its operating temperature range is -20°C to +55°C, with output derating required above 40°C.

Product Specifications

Manufacturer: Victron Energy

Product Code: ORI241210200R

Product Range: Orion-Tr

Product Type: Non-isolated DC-DC converter

Conversion: 24V DC to 12V DC

Nominal Input Voltage: 24V DC

Input Voltage Range: 18–35V DC

Output Voltage: 12.5V DC

Continuous Output Current: 10A

Maximum Output Current: 12A

Maximum Continuous Output Power: 120W

Maximum Efficiency: 97%

Galvanic Isolation: Non-isolated

Remote On/Off: Yes

Off-Load Current: Less than 45mA

Short-Circuit Protection: Yes

Protection Rating: IP43 when installed with terminals facing downwards

Operating Temperature Range: -20°C to +55°C

Temperature Derating: 3% per °C above 40°C

DC Connections: Screw terminals

Maximum Cable Cross-Section: 6mm²

Dimensions: 73 x 94 x 37mm

Weight: Approximately 200g

Colour: Blue (RAL 5012)

Warranty: 5 years

Why Choose Victron Energy?

Victron Energy is internationally recognised for producing high-quality power conversion, battery charging and energy management equipment for marine, automotive, industrial and off-grid applications.

The Orion-Tr 24/12-10 combines compact dimensions, excellent conversion efficiency and practical installation features in a dependable DC-DC converter. Its remote on/off functionality and ability to provide a stable 12V supply from a 24V battery system make it a versatile choice for professional electrical installations.

Whether upgrading an existing electrical system or designing a new installation, the Victron Energy Orion-Tr provides an efficient and dependable solution for 24V to 12V voltage conversion.
