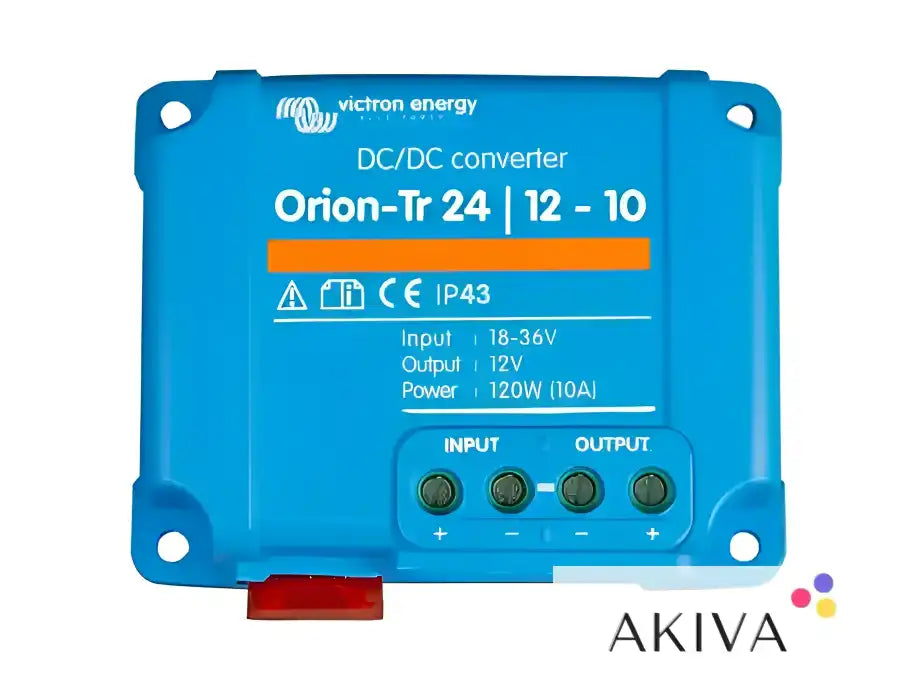

Victron Energy Orion-Tr 24/12-10 DC-DC Converter 120W – ORI241210200
Victron Energy Orion-Tr 24/12-10 DC-DC Converter 120W – ORI241210200
Couldn't load pickup availability
Product Overview
The Victron Energy Orion-Tr 24/12-10 DC-DC Converter (ORI241210200) is a compact, high-efficiency voltage converter designed to convert a 24V DC power supply into a regulated 12V output. Delivering a continuous output current of 10A and up to 120W of power, it provides a reliable solution for operating 12V electrical equipment from a 24V battery system.
Part of Victron Energy's Orion-Tr range, this non-isolated DC-DC converter uses synchronous rectification technology to achieve an impressive efficiency of up to 97%. Its compact design, convenient screw-terminal connections and adjustable output voltage make it suitable for a wide variety of electrical installations.
The Orion-Tr is particularly useful in marine, automotive, commercial vehicle and off-grid applications where reliable voltage conversion is required. Its IP43 protection rating provides protection against water spray when installed with the screw terminals facing downwards.
An integrated remote on/off connection allows the converter to be switched using a low-power control switch, eliminating the need for a high-current switch in the input wiring.
Usage and Applications
The Victron Energy Orion-Tr 24/12-10 is designed to provide a regulated 12V DC supply from a 24V battery bank or power source. It allows compatible 12V electrical equipment to operate within a 24V installation without requiring a separate 12V battery system.
It is ideal for boats, yachts, campervans, motorhomes, commercial vehicles, industrial equipment and off-grid electrical systems. Typical applications include powering 12V lighting, navigation instruments, communication equipment, monitoring devices, control systems and other electrical appliances.
In marine installations, the converter provides a practical way to operate 12V electronics from a 24V onboard electrical system. For campervans and commercial vehicles, it allows compatible 12V accessories to operate directly from the vehicle's 24V supply.
The adjustable output voltage also allows the Orion-Tr to be used as a battery charger for a 12V starter or auxiliary battery within a 24V electrical system, provided the charging voltage is correctly configured for the battery.
The 10A continuous output capacity provides up to 120W of power, making it suitable for a range of medium-power 12V applications. Multiple compatible Orion-Tr converters can be connected in parallel to increase the available output current.
Technical Information
The Orion-Tr 24/12-10 uses synchronous rectification technology to provide efficient DC-DC voltage conversion. It accepts an input voltage between 18V and 35V DC and produces a regulated nominal output of 12.5V DC.
With a continuous output current of 10A and a maximum output current of 12A, the converter provides up to 120W of continuous output power. Its efficiency of up to 97% helps minimise energy losses and reduce unwanted heat generation during operation.
The adjustable output voltage provides additional flexibility, allowing the converter to be configured for different applications, including charging a compatible 12V auxiliary battery.
This is a non-isolated converter, meaning the input and output share a common negative connection. This should be considered when designing the electrical installation.
The integrated remote on/off connection allows the unit to be controlled without switching the high-current input supply directly. Built-in short-circuit protection helps protect the converter and connected equipment, while the screw-terminal connections allow straightforward installation without specialist tools.
The IP43 protection rating applies when the converter is mounted with its screw terminals facing downwards. Its operating temperature range is -20°C to +55°C, with output derating required above 40°C.
Product Specifications
Manufacturer: Victron Energy
Product Code: ORI241210200
Product Range: Orion-Tr
Product Type: Non-isolated DC-DC converter
Conversion: 24V DC to 12V DC
Nominal Input Voltage: 24V DC
Input Voltage Range: 18–35V DC
Output Voltage: 12.5V DC
Output Voltage: Adjustable
Continuous Output Current: 10A
Maximum Output Current: 12A
Maximum Continuous Output Power: 120W
Maximum Efficiency: 97%
Galvanic Isolation: Non-isolated
Remote On/Off: Yes
Short-Circuit Protection: Yes
Protection Rating: IP43 when installed with terminals facing downwards
Off-Load Current: Less than 45mA
Operating Temperature Range: -20°C to +55°C
Temperature Derating: 3% per °C above 40°C
DC Connections: Screw terminals
Maximum Cable Cross-Section: 6mm²
Dimensions: 73 x 94 x 37mm
Weight: Approximately 200g
Why Choose Victron Energy?
Victron Energy is internationally recognised for producing high-quality power conversion, battery charging and energy management equipment for marine, automotive, industrial and off-grid applications.
The Orion-Tr 24/12-10 combines compact dimensions, excellent conversion efficiency and flexible voltage adjustment in a dependable DC-DC converter. Its remote on/off functionality and ability to operate as an auxiliary battery charger make it particularly versatile for professional electrical installations.
Whether upgrading an existing electrical system or designing a new installation, the Victron Energy Orion-Tr provides an efficient and practical solution for converting 24V battery power into a reliable 12V supply.
