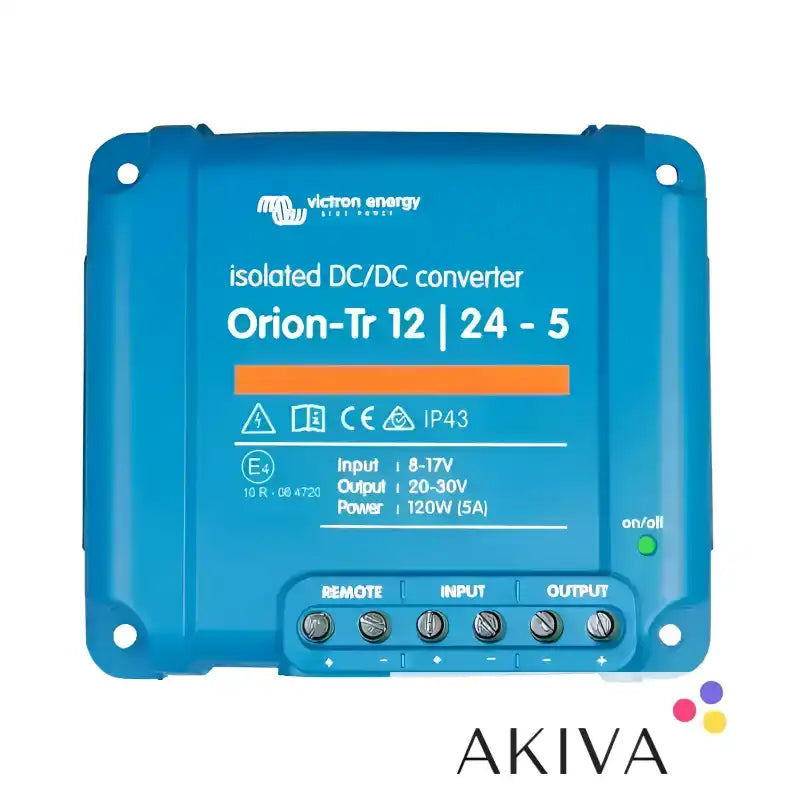

Victron Energy ORI122410110 – Orion-Tr 12/24-5A (120W) Isolated DC-DC Converter
Victron Energy ORI122410110 – Orion-Tr 12/24-5A (120W) Isolated DC-DC Converter
Couldn't load pickup availability
The Victron Energy ORI122410110 Orion-Tr 12/24-5A Isolated DC-DC Converter is a compact and efficient voltage conversion solution designed to convert a 12V DC input into a stable 24V DC output. Delivering up to 5A of continuous output current and 120W of power, this versatile converter is ideal for marine, automotive, commercial and off-grid electrical installations.
Featuring galvanic isolation between the input, output and casing, the Orion-Tr provides electrical separation between connected circuits, helping prevent unwanted ground loops and electrical interference. Its adjustable output voltage, remote on/off functionality and integrated protection features make it a reliable choice for applications requiring a regulated 24V DC power supply from a 12V electrical system.
Product Overview and Usage
The Victron Energy Orion-Tr 12/24-5A converter is designed to increase DC voltage from a 12V battery or electrical system to a regulated 24V output. This makes it particularly useful when 24V equipment needs to operate from an existing 12V power source.
The converter can supply stable power to a wide range of 24V electrical equipment, including communication systems, navigation equipment, industrial controls, lighting and other compatible DC-powered devices.
Its galvanically isolated design provides electrical separation between the input and output circuits. This is especially valuable in marine installations, commercial vehicles and specialist electrical systems where separate circuits need to remain electrically isolated.
The adjustable output voltage can be configured between 18V and 30V, providing flexibility for different equipment requirements. It can also be used as a battery charger in suitable applications, for example when charging a 24V starter or accessory battery from a 12V electrical system, provided the output voltage is configured correctly.
The integrated remote on/off connection allows the converter to be switched remotely without requiring a high-current switch in the main input wiring. It can be controlled using a low-power switch or a suitable engine run/stop signal.
Technical Information and Features
The ORI122410110 operates with an input voltage range of 8–17V DC and provides a nominal output voltage of 24.2V DC. The output voltage can be adjusted between 18V and 30V, allowing the converter to be configured for different electrical applications.
It delivers a continuous output current of 5A at nominal output voltage, providing 120W of continuous output power. Maximum conversion efficiency is approximately 88%, helping minimise energy losses during operation.
Galvanic isolation is rated at 200V DC between the input, output and casing. This electrical separation helps reduce ground-loop problems and unwanted electrical interference between connected systems.
The converter incorporates short-circuit protection and thermal protection, with output power automatically reduced at elevated operating temperatures. Multiple Orion-Tr converters can be connected in parallel to increase the available output current, allowing installations to be expanded where additional power capacity is required.
The unit also features screw-terminal electrical connections for straightforward installation and an integrated input fuse for additional circuit protection.
Product Specifications
The Victron Energy ORI122410110 has a nominal input voltage of 12V DC and a nominal output voltage of 24.2V DC. Its input voltage operating range is 8–17V, with undervoltage shutdown at 7V and restart at 7.5V.
The adjustable output voltage range is 18–30V DC, with an output voltage tolerance of ±0.2V and output noise of approximately 2mV RMS.
The continuous output current is 5A, providing 120W of continuous output power. Maximum efficiency is approximately 88%.
Galvanic isolation is rated at 200V DC between the input, output and casing. The operating temperature range is -20°C to +55°C, with output power derating above 40°C. Maximum permitted humidity is 95% non-condensing.
Electrical connections are made using screw terminals, supporting cable sizes up to 6mm². The unit measures approximately 100 x 113 x 47mm and weighs approximately 0.42kg.
The converter has an IP43 protection rating when installed with the screw terminals facing downwards.
Ideal Applications
The Victron Energy Orion-Tr 12/24-5A Isolated DC-DC Converter is suitable for marine electrical systems, motorhomes, campervans, commercial vehicles, boats, industrial equipment and off-grid installations.
It is particularly useful where 24V electrical equipment needs to be powered from a 12V battery system. Its compact dimensions make it suitable for installations where space is limited, while galvanic isolation provides additional flexibility when integrating different electrical circuits.
Whether used to power 24V electronic equipment, provide a regulated DC supply or support a suitable auxiliary battery charging arrangement, the Orion-Tr offers dependable voltage conversion.
Why Choose Victron Energy?
Victron Energy is internationally recognised for manufacturing high-quality inverters, battery chargers, DC-DC converters and professional power management equipment. Its products are widely used in marine, automotive, commercial and renewable energy applications.
The ORI122410110 combines efficient voltage conversion, galvanic isolation and flexible installation options in a compact design. It is an excellent choice for professional installers and users looking for a dependable 12V to 24V isolated DC-DC converter.
