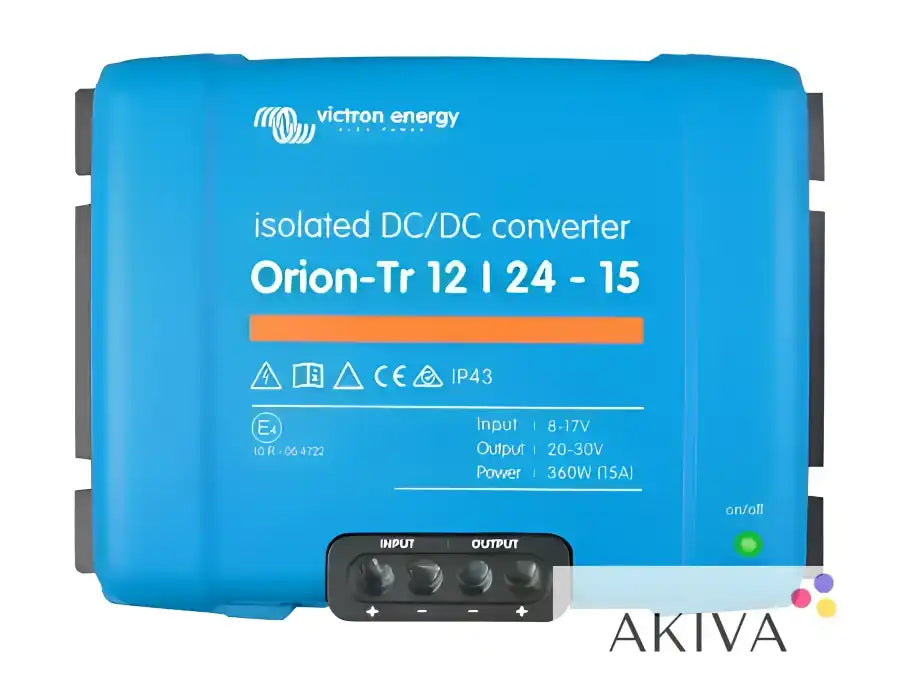

Victron Energy ORI122441110 – Orion-Tr 12/24-15A (360W) Isolated DC-DC Converter

Victron Energy ORI122441110 – Orion-Tr 12/24-15A (360W) Isolated DC-DC Converter

Regular price £146.66 GBP
Regular price £232.80 GBP Sale price £146.66 GBP
Sale Sold out
Taxes included. Shipping calculated at checkout.

The Victron Energy ORI122441110 is an Orion-Tr 12V to 24V isolated DC-DC converter, designed to provide reliable and efficient voltage conversion for vehicle, marine, commercial and off-grid electrical systems. With a continuous output current of 15A and a power rating of 360W, this converter allows equipment requiring a 24V supply to operate from a 12V battery system.

Its isolated design provides electrical separation between the input and output circuits, helping to prevent unwanted electrical interference and allowing separate chassis grounding. It is particularly suitable for applications where dependable voltage conversion is essential.

Product Specifications

The ORI122441110 accepts a nominal 12V DC input and converts it into an adjustable 24V DC output. It delivers up to 15A of continuous output current, making it suitable for powering 24V equipment from a 12V electrical supply.

The converter has an input voltage range of 10–17V and an adjustable output voltage range of 20–30V, with a nominal output voltage of 24.2V. It provides up to 430W continuous output power at 25°C, reducing to 360W at 40°C. Maximum output current can reach 25A for short periods of up to 10 seconds, subject to operating conditions.

Usage and Applications

The Victron Orion-Tr 12/24-15A converter is ideal for applications where a 24V power supply is required but only a 12V battery system is available. It can be used in campervans, motorhomes, boats, commercial vehicles, service vehicles and independent off-grid installations.

Typical applications include powering 24V lighting, communication equipment, electronic devices, control systems and other compatible electrical equipment. Its adjustable output voltage also allows it to be configured for charging a suitable 24V battery from a 12V supply, provided the charging requirements and installation are appropriate.

Technical Information

The ORI122441110 features galvanic isolation between its input and output, providing additional flexibility when designing electrical systems with separate grounding arrangements. Its remote on/off facility allows the converter to be controlled using a low-power switch or an engine run/stop signal, avoiding the need for a high-current switch in the input wiring.

The unit incorporates short-circuit protection and can be connected in parallel with additional compatible converters to increase the available output current. Its IP43 protection rating applies when installed with the screw terminals facing downwards.

Electrical connections are made using screw terminals, supporting cable sizes up to 16mm². The converter measures approximately 130 x 186 x 80mm and weighs around 1.8kg.

The operating temperature range is -20°C to +55°C, with output derating above 40°C. The unit also incorporates under-voltage protection, shutting down at approximately 7V and restarting at 7.5V.

Why Choose the Victron Energy Orion-Tr ORI122441110?

The Victron Energy Orion-Tr 12/24-15A isolated DC-DC converter provides a dependable solution for converting 12V battery power into a regulated 24V supply. Its robust construction, adjustable output, galvanic isolation and remote switching capability make it a versatile choice for demanding mobile and off-grid electrical installations.

Whether you are upgrading a campervan electrical system, installing equipment on a commercial vehicle or building a marine power system, the ORI122441110 offers the quality and reliability associated with Victron Energy.

SKU:ORI122441110
