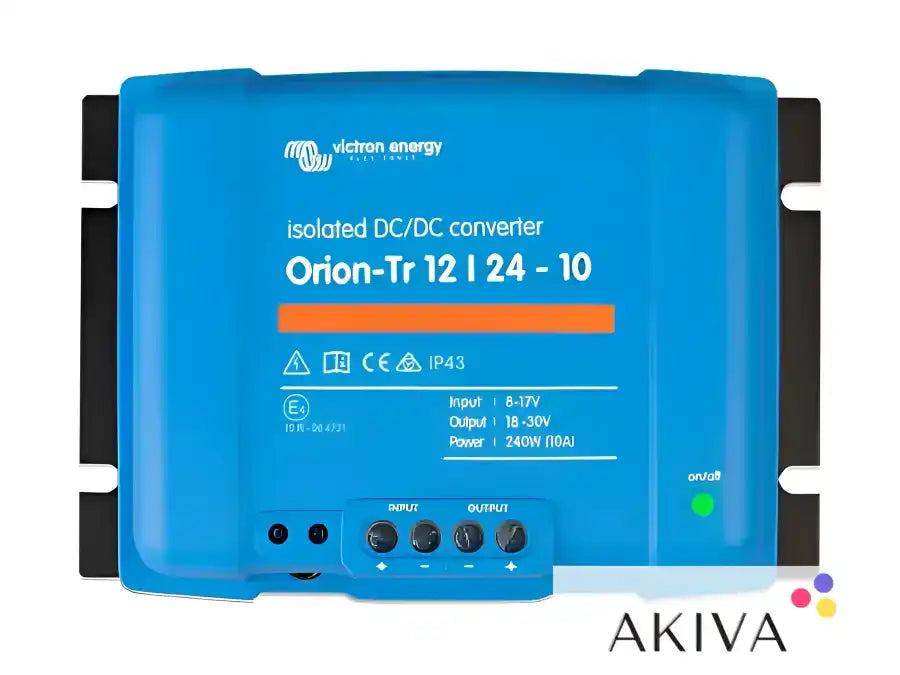

Victron Energy Orion-Tr 12/24-10A (240W) Isolated DC-DC Converter – ORI122424110

Victron Energy Orion-Tr 12/24-10A (240W) Isolated DC-DC Converter – ORI122424110

Regular price £83.16 GBP
Regular price £132.00 GBP Sale price £83.16 GBP
Sale Sold out
Taxes included. Shipping calculated at checkout.

Product Overview

The Victron Energy Orion-Tr 12/24-10A (240W) Isolated DC-DC Converter (ORI122424110) is a high-quality DC-DC power converter designed to transform a 12V DC input into a regulated 24V DC output. It is ideal for vehicle, marine, mobile and off-grid electrical installations where 24V equipment needs to be powered from an existing 12V battery system.

With galvanic isolation between the input, output and casing, the Orion-Tr helps prevent unwanted electrical connections between different parts of an installation. Its adjustable output voltage, remote on/off facility and short-circuit protection make it a versatile solution for dependable DC power conversion.

Usage and Applications

The Victron Orion-Tr 12/24-10A is suitable for powering 24V appliances and electrical equipment from a 12V supply. It can be used in motorhomes, campervans, boats, commercial vehicles, service vehicles and off-grid installations where different DC voltage systems need to operate together.

Typical applications include supplying 24V lighting, control equipment, communications systems, monitoring devices and other compatible DC appliances. The adjustable output voltage also allows the converter to be configured for particular equipment requirements, within its specified operating range.

The remote on/off connection allows the converter to be controlled using a low-current switch or a suitable vehicle ignition or engine-running signal. This avoids the need to install a high-current switch in the main input wiring.

Technical Information and Specifications

The ORI122424110 accepts an input voltage range of 8–17V DC and provides a nominal output voltage of 24.2V DC. The output voltage can be adjusted between 20V and 30V, allowing flexibility when powering different types of 24V equipment.

The converter delivers a continuous output current of 10A at nominal output voltage. Its continuous power rating is 280W at 25°C, reducing to 240W at 40°C. Maximum output current can reach 15A for up to 10 seconds, subject to the manufacturer's operating conditions. Efficiency is approximately 88%, helping to minimise energy losses during voltage conversion.

The unit incorporates undervoltage protection, shutting down when the input falls to approximately 7V and restarting when the input reaches approximately 7.5V. It is also short-circuit protected and includes a non-replaceable input fuse on this 12V input model.

Galvanic isolation is rated at 200V DC between the input, output and casing. Output voltage tolerance is ±0.2V, with output noise specified at 2mV RMS. The operating temperature range is -20°C to +55°C, with output derating above 40°C.

Electrical connections are made through screw terminals, supporting cable cross-sections up to 16mm². The converter weighs approximately 1.3kg and measures 130 x 186 x 70mm (height x width x depth).

Installation and Features

The Orion-Tr features IP43 protection when installed with its screw terminals facing downwards. Its screw-terminal connections allow straightforward installation without specialist connector tools.

Multiple Orion-Tr converters can be connected in parallel to increase the available output current, provided the installation is correctly designed and configured. The remote on/off facility provides convenient control without requiring a high-current switching arrangement.

Important: This is an adjustable DC-DC voltage converter, not a dedicated multi-stage battery charger. For charging a 24V leisure or service battery from a 12V electrical system, a suitable dedicated DC-DC battery charger should be selected instead.

Why Choose Victron Energy?

Victron Energy is recognised worldwide for its high-quality power conversion and energy management equipment. The Orion-Tr range is designed for demanding mobile and off-grid applications, providing reliable voltage conversion for installations where consistent DC power is essential.

The Victron Energy Orion-Tr 12/24-10A Isolated DC-DC Converter is an excellent choice for anyone needing to power 24V equipment from a 12V battery supply, with the added benefits of galvanic isolation, adjustable output voltage and remote switching.

SKU:ORI122424110
