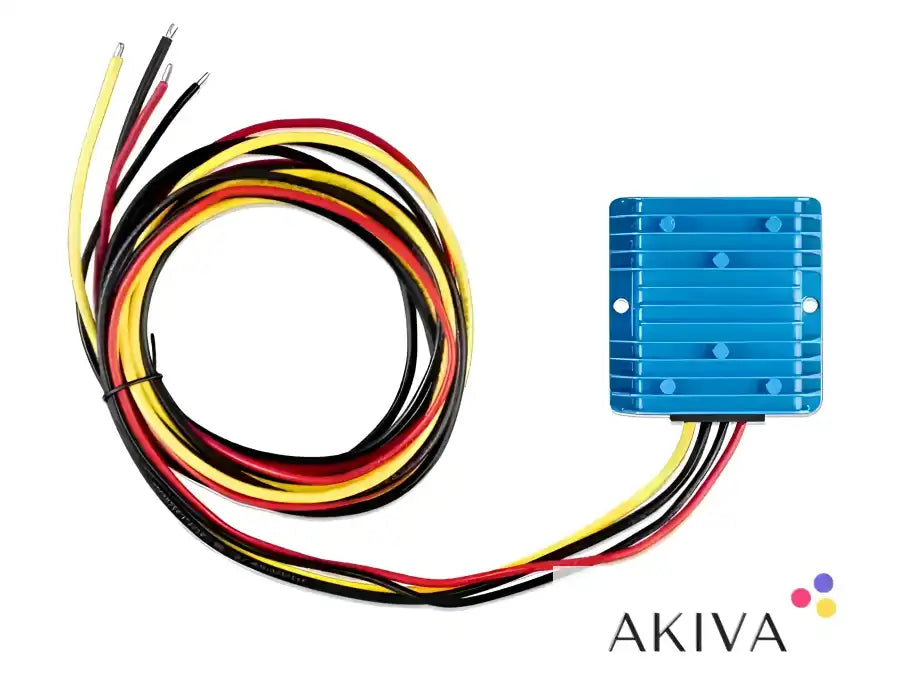

Victron Energy Orion IP67 24/12-20A DC-DC Converter 240W – ORI241220260
Victron Energy Orion IP67 24/12-20A DC-DC Converter 240W – ORI241220260
Couldn't load pickup availability
Product Overview
The Victron Energy Orion IP67 24/12-20A DC-DC Converter (ORI241220260) is a robust, high-efficiency voltage converter designed to provide a regulated 12V DC supply from a 24V battery system. Delivering up to 20A of continuous output current and 240W of power, it provides a dependable solution for powering 12V electrical equipment from a 24V battery bank.
Part of Victron Energy's Orion IP67 range, this non-isolated DC-DC converter is specifically designed for installations where durability and environmental protection are important. Its fully encapsulated electronics are housed within a strong cast aluminium enclosure, providing protection against water, dust, oil, dirt, vibration and mechanical shock.
With an IP67 protection rating, the Orion is particularly well suited to demanding marine, automotive, commercial vehicle and industrial environments. Its wide input voltage range of 15–40V DC helps maintain a stable output despite fluctuations in the incoming 24V supply, making it a practical choice for electrical systems where other equipment may cause voltage variations.
Usage and Applications
The Victron Orion IP67 24/12-20A is designed for converting 24V DC power into a stable 12V supply, allowing 12V appliances and electrical equipment to operate within a 24V electrical installation.
It is ideal for boats, yachts, campervans, motorhomes, commercial vehicles, machinery and off-grid power systems. Typical applications include supplying 12V lighting, communication equipment, navigation electronics, control systems, monitoring equipment and other compatible DC appliances.
In marine installations, its waterproof and dustproof construction makes it suitable for locations exposed to moisture, water splashes and challenging operating conditions. In commercial vehicles and industrial applications, its rugged design provides a reliable voltage conversion solution where equipment is exposed to vibration, dirt and temperature variations.
The 20A continuous output capacity provides more power than smaller Orion converters, making it suitable for installations with greater 12V electrical demands. The combined load of connected equipment should remain within the converter's rated output capacity.
Technical Information
The Orion IP67 uses high-frequency DC-DC conversion technology to reduce a 24V nominal DC input to a regulated 12V DC output. It operates across an input voltage range of 15–40V DC, with an undervoltage shutdown threshold of 13V and automatic restart at 14V.
The converter delivers a maximum continuous output current of 20A, providing up to 240W of output power. Its conversion efficiency of up to 95% helps minimise energy losses during operation, while low output ripple and noise support a stable supply for compatible electronic equipment.
The non-isolated design means the input and output share a common negative connection. This should be taken into consideration when planning the electrical installation.
Built-in protection features include short-circuit protection, overload protection and thermal protection. Overload protection operates in hiccup mode, automatically recovering once the fault condition has been removed. Reverse polarity protection requires an appropriately rated external fuse or circuit breaker.
The fully resin-encapsulated electronics and cast aluminium housing provide excellent protection against environmental exposure. The converter is supplied with extended 1.8-metre input and output cables, helping simplify installation and reduce the need for additional cable connections.
Product Specifications
Manufacturer: Victron Energy
Product Code: ORI241220260
Product Range: Orion IP67
Product Type: Non-isolated DC-DC converter
Nominal Input Voltage: 24V DC
Input Voltage Range: 15–40V DC
Undervoltage Shutdown: 13V DC
Undervoltage Restart: 14V DC
Output Voltage: 12V DC ±3%
Maximum Continuous Output Current: 20A
Maximum Output Power: 240W
Maximum Efficiency: 95%
Ripple and Noise: 75mV peak-to-peak
No-load Current at 24V: 50mA
Galvanic Isolation: Non-isolated
Overload Protection: Hiccup mode with automatic recovery
Short-Circuit Protection: Yes
Reverse Polarity Protection: With external fuse or circuit breaker
Operating Temperature Range: -40°C to +70°C
Full Rated Output Temperature: Up to 40°C
Temperature Derating: 3% per °C above 40°C
Protection Rating: IP67
Housing Material: Cast aluminium
Electronics: Fully resin encapsulated
Cable Connections: Two input and two output cables
Cable Length: 1.8 metres
Cable Cross Section: 2.6mm²
Dimensions: 74 x 74 x 32mm
Weight: Approximately 300g
Warranty: 5 years
Why Choose Victron Energy?
Victron Energy is a leading manufacturer of professional power conversion, battery charging and energy management equipment for marine, automotive, industrial and off-grid applications. Its Orion DC-DC converter range is designed to provide dependable voltage conversion across a wide variety of electrical installations.
The Victron Orion IP67 24/12-20A combines a powerful 240W output, excellent conversion efficiency and fully encapsulated IP67-rated construction in a compact housing. Its rugged design and built-in protection features make it an excellent choice for anyone requiring a reliable 24V to 12V DC-DC converter for demanding electrical environments.
