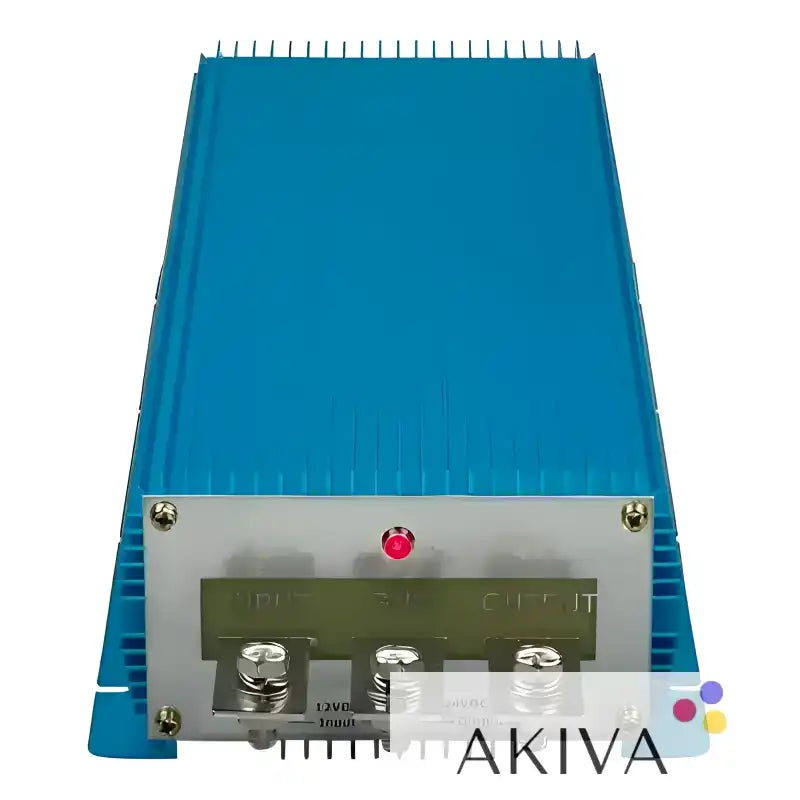

Victron Energy Orion IP67 12/24-50A 1200W DC-DC Converter – ORI122421226

Victron Energy Orion IP67 12/24-50A 1200W DC-DC Converter – ORI122421226

Regular price £198.84 GBP
Regular price £315.61 GBP Sale price £198.84 GBP
Sale Sold out
Taxes included. Shipping calculated at checkout.

Product Overview

The Victron Energy Orion IP67 12/24-50A is a high-performance, non-isolated DC-DC converter designed to increase a 12V DC supply to a stable 24V DC output. Delivering up to 50A and 1,200W of power, it provides a reliable solution for installations requiring 24V equipment to operate from a 12V battery system.

Designed for demanding marine, vehicle, industrial and off-grid applications, the Orion IP67 combines high conversion efficiency with a fully encapsulated construction. Its waterproof, shockproof and ignition-protected design makes it particularly suitable for installations exposed to moisture, vibration, dirt and other challenging environmental conditions.

12V to 24V DC Power Conversion

The Orion IP67 converts an input supply of approximately 12V DC into a regulated 24V DC output. This allows 24V electrical equipment to be powered from a 12V battery bank without requiring a separate 24V battery system.

With a maximum continuous output current of 50A and a rated power of 1,200W, it can support demanding 24V loads, provided the input supply, wiring and protection are correctly sized.

The converter is non-isolated, meaning the input and output share a common negative connection. This makes it suitable for installations where a common electrical ground is required.

Fully Encapsulated IP67 Construction

The Orion IP67 is designed to operate in environments where conventional electronic converters may be vulnerable to water, oil, dirt and vibration.

Its cast aluminium enclosure contains electronics fully encapsulated in resin, providing protection against moisture and physical impact. The IP67 protection rating means the unit is dust-tight and protected against temporary immersion in water under specified test conditions.

The robust construction also provides ignition protection, making it suitable for appropriately designed vehicle and marine installations where electrical equipment must be protected against potentially hazardous environments.

High Efficiency and Thermal Protection

With conversion efficiency of up to 96%, the Orion IP67 minimises energy losses during the conversion process. This helps reduce wasted power and heat generation when operating high-demand 24V equipment from a 12V supply.

Integrated thermal protection helps safeguard the converter against excessive operating temperatures. The unit is designed to operate in hot environments, including engine rooms and machinery compartments, provided the installation allows suitable heat dissipation.

Overload protection operates in hiccup mode and automatically recovers once the fault condition has been removed. The converter is also short-circuit proof.

Reverse-polarity protection is provided through an appropriately rated external fuse or circuit breaker, which must be installed as part of the system.

Technical Specifications

The Victron Energy Orion IP67 12/24-50A has a nominal 12V DC input and regulated 24V DC output.

The input voltage range is 10–15V DC, with undervoltage shutdown at approximately 8V and restart at approximately 9V. The output voltage is 24V DC ±3%.

The maximum continuous output current is 50A, providing a rated output power of 1,200W. Conversion efficiency is approximately 96%, with output ripple and noise of approximately 150mV peak-to-peak.

No-load current consumption at 24V is approximately 45mA.

The operating temperature range is -40°C to +70°C, with full rated output available up to approximately 40°C. Above this temperature, output capacity must be derated in accordance with Victron's specifications.

The converter has an IP67 protection rating and is housed in a blue cast aluminium enclosure with fully resin-encapsulated electronics.

The DC connections use M6 bolt terminals. The unit measures approximately 340mm × 127mm × 63mm and weighs approximately 3.1kg.

Installation and Compatibility

The Orion IP67 12/24-50A is designed for 12V DC battery systems supplying compatible 24V electrical equipment. Typical applications include marine electronics, vehicle systems, commercial vehicles, industrial machinery and off-grid installations.

As a non-isolated converter, the input and output share a common negative connection. This must be taken into account when designing the electrical installation.

The input supply must be capable of delivering the required current, and appropriately rated cables and external input protection are essential. Victron specifies a recommended 120A input fuse for this model.

The unit uses M6 bolt connections and should be securely mounted in accordance with the manufacturer's installation instructions. Correct cable sizing, ventilation and electrical protection are important for safe and reliable operation.

This is a fixed-output DC-DC converter, not a multi-stage battery charger. It should not be confused with Victron's Orion-Tr Smart DC-DC battery chargers, which are designed for controlled battery charging.

Product Summary

The Victron Energy Orion IP67 12/24-50A is a powerful and durable DC-DC converter designed to provide a regulated 24V supply from a 12V battery system. Its 1,200W output, 50A continuous current rating, high conversion efficiency and fully encapsulated IP67 construction make it an excellent choice for demanding marine, vehicle, industrial and off-grid applications.

SKU:ORI122421226
