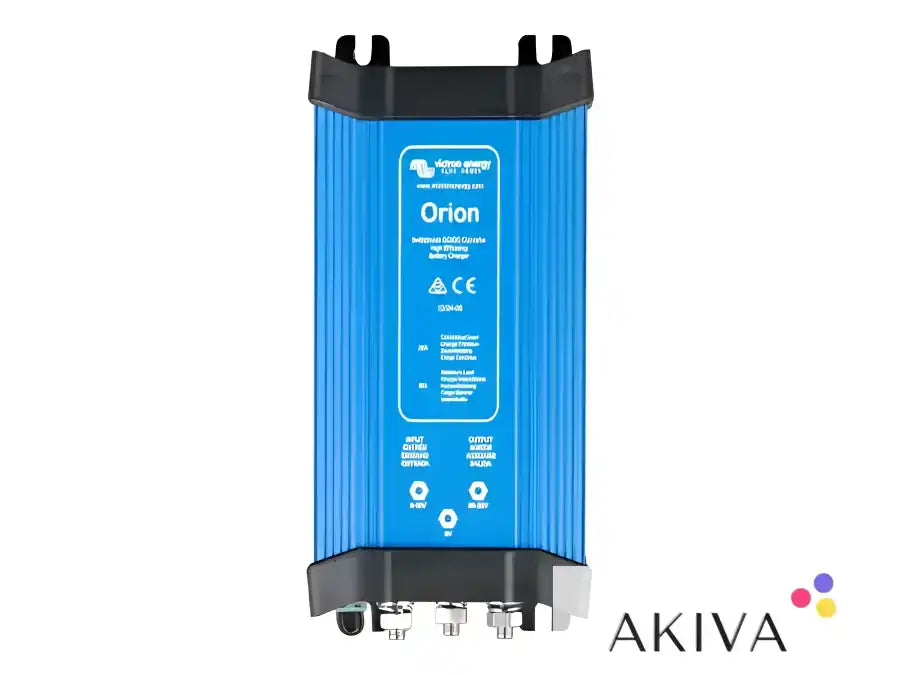

Victron Energy Orion 12/24-20 DC-DC Converter 480W – ORI122420020

Victron Energy Orion 12/24-20 DC-DC Converter 480W – ORI122420020

Regular price £83.16 GBP
Regular price £132.00 GBP Sale price £83.16 GBP
Sale Sold out
Taxes included. Shipping calculated at checkout.

Product Overview

The Victron Energy Orion 12/24-20 DC-DC Converter – ORI122420020 is a powerful, non-isolated voltage converter designed to increase a 12V DC power supply to an adjustable 24V output. Delivering 20A of continuous output current and up to 480W of power, it provides a reliable solution for powering 24V electrical equipment from a 12V battery system.

Part of Victron Energy's high-power Orion range, this DC-DC converter combines efficient voltage conversion with a robust design and practical installation features. Its adjustable output voltage, remote on/off connection and parallel operation capability make it suitable for demanding marine, automotive, commercial and off-grid electrical applications.

The Orion 12/24-20 is particularly useful where a higher-capacity 24V supply is required but the available battery system operates at 12V.

Usage and Applications

The Victron Orion 12/24-20 is designed for installations where 24V electrical equipment needs to operate from a 12V DC battery supply. It increases the incoming voltage and provides an adjustable output between 20V and 30V, with a factory setting of 26.4V.

For marine applications, it can supply compatible 24V navigation equipment, communication systems, onboard electronics and other electrical accessories from a 12V battery installation. In motorhomes, campervans and commercial vehicles, it provides a practical way to operate suitable 24V appliances and auxiliary equipment without requiring a separate 24V battery bank.

The adjustable output also makes this model suitable for buffer charging a compatible 24V battery from a 12V electrical system, provided the output voltage is configured correctly for the battery chemistry and manufacturer's charging requirements.

For larger electrical installations, up to five compatible Orion converters can be connected in parallel to increase the available output current.

Technical Information

The Orion 12/24-20 uses high-efficiency DC-DC conversion technology to increase the input voltage from 12V to an adjustable 24V output. It accepts an input voltage range of 9V to 18V DC and provides an adjustable output between 20V and 30V, with a factory-set voltage of 26.4V.

It delivers 20A of continuous output current, with a maximum output current of 30A. At its factory-set output voltage, this provides approximately 528W at 20A, although the manufacturer's rated continuous output capacity should be checked against the applicable operating conditions.

The converter has a remote on/off connection, allowing it to be controlled using a low-current switch or a suitable engine run/stop signal. This removes the need for a high-current switch in the input wiring.

As a non-isolated converter, the input and output share a common negative connection. It also supports parallel operation, allowing up to five compatible units to be connected together where additional output current is required.

The Orion incorporates under-voltage protection, shutting down when the input voltage falls to approximately 8V and restarting when it rises to approximately 10V. Its fan-assisted cooling system helps manage operating temperatures under higher loads.

Technical Specifications

Brand: Victron Energy

Product Range: Orion High-Power DC-DC Converters

Model: Orion 12/24-20

Manufacturer Part Number: ORI122420020

Product Type: Non-isolated DC-DC voltage converter

Nominal Input Voltage: 12V DC

Input Voltage Range: 9–18V DC

Under-Voltage Shutdown: 8V DC

Under-Voltage Restart: 10V DC

Output Voltage: Adjustable 20–30V DC

Factory-Set Output Voltage: 26.4V DC

Continuous Output Current: 20A

Maximum Output Current: 30A

Maximum Efficiency: Approximately 93%

Galvanic Isolation: No

Off-Load Current: Less than 30mA

Remote On/Off: Yes

Parallel Operation: Yes, up to five compatible units

Battery Charging Suitability: Yes, suitable for buffer charging compatible 24V batteries when correctly configured

Cooling: Temperature-controlled fan-assisted cooling

DC Connections: M6 bolt connections

Protection Rating: IP20

Operating Temperature Range: -20°C to +55°C

Temperature Derating: 3% per °C above 40°C

Dimensions (H × W × D): 65 × 88 × 195mm

Weight: Approximately 0.9kg

Safety Standard: EN 60950

Why Choose the Victron Energy Orion 12/24-20?

The Victron Energy Orion 12/24-20 offers a powerful and dependable way to supply 24V equipment from a 12V battery system. Its 20A continuous output, adjustable voltage and remote on/off facility make it suitable for a wide range of professional electrical installations.

The ability to adjust the output voltage provides additional flexibility for compatible battery charging applications, while parallel operation allows multiple units to be combined when greater output capacity is required.

With its robust construction, fan-assisted cooling and reliable voltage conversion, the Orion 12/24-20 is an excellent choice for marine, vehicle, industrial and off-grid power systems.

SKU:ORI122420020
