Victron

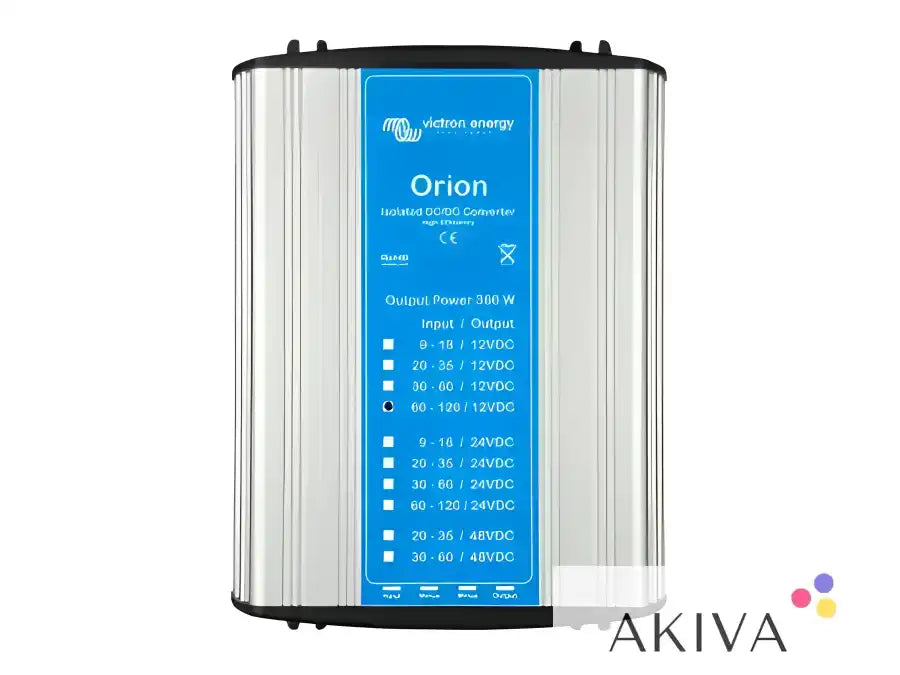

Victron Energy Orion 110/12-30A (360W) Isolated DC-DC Converter – ORI110123610

Victron Energy Orion 110/12-30A (360W) Isolated DC-DC Converter – ORI110123610

Regular price £266.86 GBP
Regular price £423.59 GBP Sale price £266.86 GBP
Sale Sold out
Taxes included. Shipping calculated at checkout.

The Victron Energy Orion 110/12-30A (360W) Isolated DC-DC Converter (ORI110123610) is a high-performance voltage conversion unit designed to convert a high-voltage 110V DC electrical supply into a stable, regulated 12V DC output. Delivering up to 30A of continuous output current and 360W of power, this professional DC-DC converter provides a dependable power supply for 12V electrical equipment operating from a high-voltage DC system.

Designed for industrial, commercial, specialist vehicle and off-grid applications, the Orion features galvanic isolation between the input and output circuits, helping prevent unwanted electrical interference and allowing separate electrical grounds to be maintained. Its robust construction, integrated cooling system and comprehensive electrical protection make it suitable for demanding installations where reliable DC power conversion is essential.

Usage and Applications

The Victron Orion 110/12-30A is designed for applications where equipment operating at 12V DC needs to be powered from a nominal 110V DC electrical supply. It is particularly useful in industrial electrical systems, railway applications, specialist commercial installations and other environments where high-voltage DC power is available but lower-voltage equipment is required.

By converting the incoming 110V DC supply into a regulated 12.5V output, the Orion allows compatible 12V appliances, control equipment, lighting systems, monitoring devices and other electrical loads to operate safely from the higher-voltage source.

The galvanically isolated design is particularly beneficial in installations where the input and output circuits need to remain electrically separated. This helps reduce unwanted ground currents and electrical noise, improving the reliability of connected equipment.

The converter also incorporates a remote on/off connection, allowing it to be controlled using a low-current switch or an external control signal. This removes the need for a high-current switch in the main input wiring and provides greater flexibility when integrating the converter into automated or remotely controlled electrical systems.

Technical Information and Specifications

The ORI110123610 is designed for a nominal 110V DC input, with a wide operating input voltage range of 60V to 140V DC. It provides a regulated nominal output voltage of 12.5V DC, delivering a continuous output current of up to 30A and a maximum continuous output power of 360W.

Maximum conversion efficiency is approximately 85%, helping minimise energy losses during operation. The converter has an off-load current consumption of less than 25mA, making it suitable for installations where standby power consumption needs to be considered.

Galvanic isolation of more than 400V RMS is provided between the input, output and casing. This electrical separation is particularly important in industrial and specialist power installations where different electrical circuits must maintain independent grounds.

The unit incorporates short-circuit protection, reverse-polarity protection and overvoltage protection. Thermal protection helps safeguard the converter against excessive operating temperatures, while its temperature-controlled fan-assisted cooling system maintains suitable operating conditions under varying electrical loads.

Output voltage stability is approximately 2%, with an output voltage tolerance of 3%. Output noise is less than 50mV RMS, making the unit suitable for a range of regulated 12V DC applications.

The converter operates within an ambient temperature range of -20°C to +40°C, with its output capability progressively reducing at higher temperatures. The maximum operating temperature is +70°C at zero output current.

Electrical connections are made using 6.3mm push-on flat blade connectors. The unit features a durable anodised aluminium enclosure designed to provide effective heat dissipation and mechanical protection.

The overall dimensions are approximately 82mm high, 132mm wide and 190mm deep, with an approximate weight of 1.4kg.

Galvanic Isolation and Electrical Protection

One of the principal advantages of the Victron Orion 110/12-30A is its galvanically isolated construction. By electrically separating the high-voltage DC input from the low-voltage output, the converter helps prevent unwanted current paths and reduces the possibility of electrical interference between connected systems.

This makes it particularly valuable in industrial control systems, specialist vehicle installations and applications where sensitive 12V electronic equipment needs to operate from a higher-voltage DC supply.

The integrated remote on/off facility also provides convenient system control. It can be operated using a low-power switch or an appropriate external control signal, allowing the converter to be incorporated into a wider electrical management system.

Why Choose the Victron Energy Orion ORI110123610?

Combining 360W of continuous power, 30A output capability, galvanic isolation and comprehensive electrical protection, the Victron Energy Orion 110/12-30A is a dependable solution for converting 110V DC into regulated 12V DC power.

Its compact design, fan-assisted cooling and remote switching capability make it suitable for professional installations where consistent voltage conversion and reliable operation are essential.

The ORI110123610 is a dedicated DC-DC voltage converter rather than a modern Bluetooth-enabled Orion-Tr Smart charger. It is designed primarily to provide a regulated DC supply to compatible 12V equipment, rather than an adaptive multi-stage battery charging profile. Its output should therefore be checked carefully against the requirements of the connected equipment or battery system.

Designed to the engineering standards associated with Victron Energy, this isolated DC-DC converter offers a practical and reliable solution for specialist 110V DC power applications.

SKU:ORI110123610
