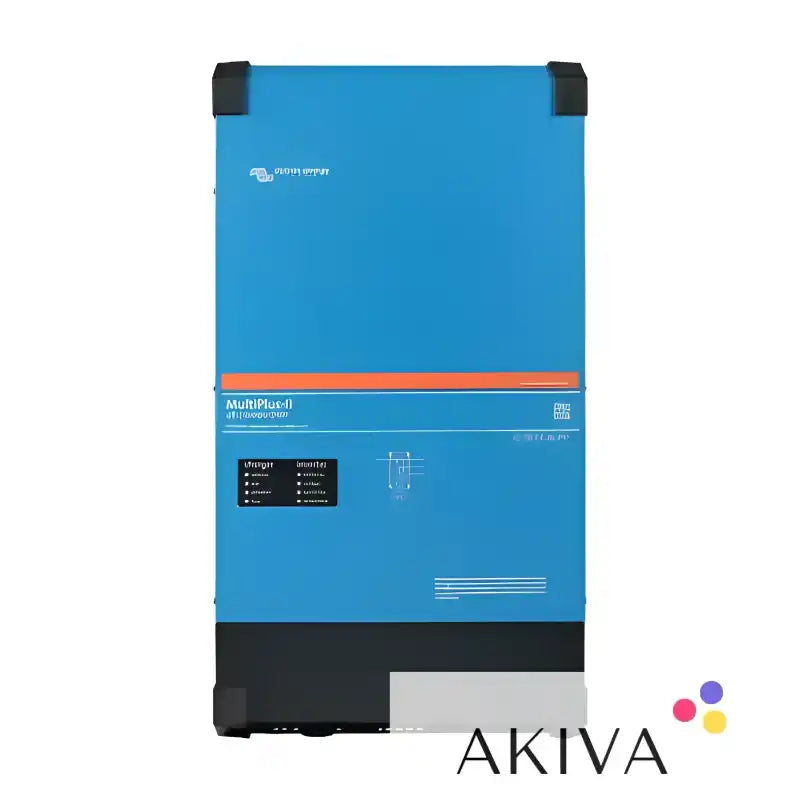

Victron Energy MultiPlus-II 48/10000/140-100/100 230V Inverter Charger – PMP483105000

Product Overview

The Victron Energy MultiPlus-II 48/10000/140-100/100 230V is a high-capacity inverter charger for 48V battery systems. Combining a pure sine wave inverter, 140A battery charger and 100A AC transfer switch, it is designed for off-grid solar, residential energy storage, commercial installations and backup power.

With a 10,000VA inverter rating and continuous output of 8000W at 25°C, it converts 48V DC battery power into 230V AC electricity. PowerControl, PowerAssist and UPS functionality help manage available power and maintain the supply to suitable connected equipment during a mains interruption.

Key Features and Applications

The MultiPlus-II combines inverter power, battery charging and AC switching in one unit. It is suitable for off-grid homes, solar energy storage, generator-backed systems, commercial installations and compatible marine applications.

PowerControl limits current drawn from an external AC supply, while PowerAssist supplements available power with battery energy when demand increases. Two AC outputs allow essential and non-essential loads to be managed separately in suitable installations.

VE.Bus communication supports integration with compatible Victron Energy equipment. Compatible parallel and three-phase configurations allow systems to be expanded for greater power requirements.

Technical Specifications

Brand: Victron Energy
Product Range: MultiPlus-II
Model: 48/10000/140-100/100 230V
Part Number: PMP483105000
Product Type: Inverter charger with integrated AC transfer switch
Nominal Battery Voltage: 48V DC
DC Input Voltage Range: 38–66V DC
AC Output Voltage: 230V AC ±2%
Output Frequency: 50Hz ±0.1%, adjustable to 60Hz
Continuous Output at 25°C: 10,000VA / 8000W
Continuous Output at 40°C: 7000W
Continuous Output at 65°C: 6000W
Peak Power: 18,000W
Maximum Inverter Efficiency: Up to 96%
Maximum Battery Charging Current: 140A
AC Input Voltage Range: 187–265V AC
AC Input Frequency Range: 45–65Hz
Transfer Switch Rating: 100A
Maximum AC Input Current: 100A, subject to configuration
Absorption Voltage: 57.6V DC
Float Voltage: 55.2V DC
Storage Voltage: 52.8V DC
Auxiliary AC Output: Yes, up to 50A
Communication Interface: VE.Bus
Remote On/Off: Yes
Programmable Relay: Yes
Parallel Operation: Supported with compatible units
Three-Phase Operation: Supported with compatible units
Protection Rating: IP22
Operating Temperature: -40°C to +65°C, with fan-assisted cooling
Maximum Humidity: 95%, non-condensing
Battery Connections: Four M8 bolts
AC Connections: M6 bolt connections
Dimensions (H × W × D): Approximately 677 × 363 × 206mm
Weight: Approximately 49kg

Battery Charging and Installation

The integrated 140A charger supports compatible 48V battery banks. Charging voltages and current limits should be configured according to the battery manufacturer's specifications, particularly when using lithium batteries with a compatible battery management system.

Due to its high power capacity, installation requires correctly rated battery cables, fuses, isolation, circuit protection, earthing and ventilation. Professional installation and commissioning are recommended in accordance with the manufacturer's instructions and applicable electrical regulations.

Product Summary

The Victron Energy MultiPlus-II PMP483105000 is a powerful 48V inverter charger delivering up to 8000W continuous output at 25°C, with a 140A battery charger and 100A transfer switch. Its PowerControl, PowerAssist and UPS features make it a versatile choice for demanding off-grid solar, energy storage, commercial and backup power systems.
