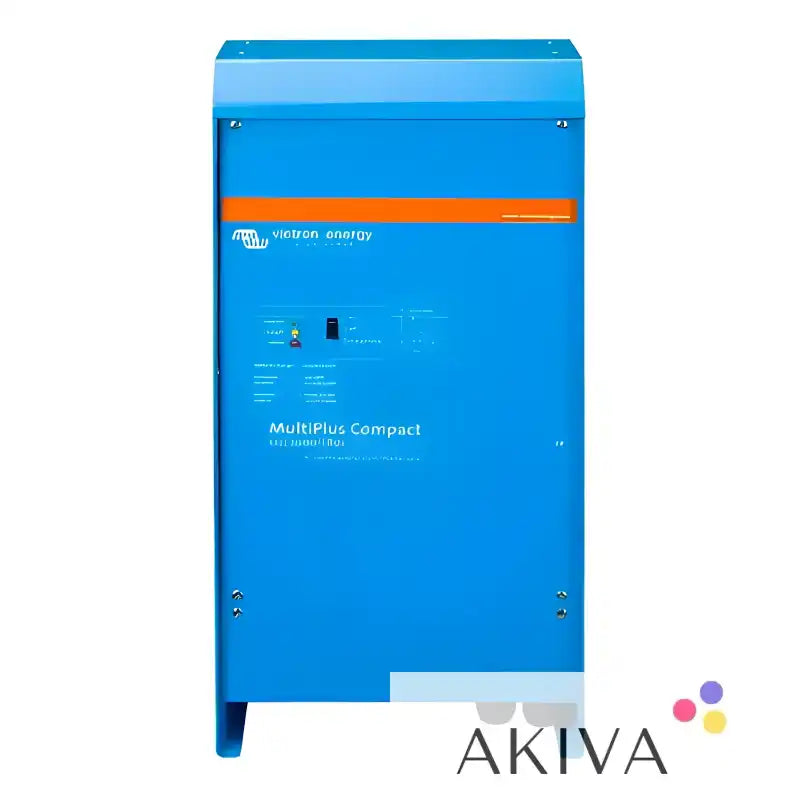

Victron Energy MultiPlus Compact 12/2000/80-30 230V VE.Bus Inverter Charger – CMP122200000

Product Description

The Victron Energy MultiPlus Compact 12/2000/80-30 230V VE.Bus Inverter Charger (CMP122200000) is an integrated power solution combining a pure sine wave inverter, adaptive battery charger and automatic AC transfer switch in one compact unit. Designed for compatible 12V battery systems, it converts DC battery power into 230V AC electricity and charges the battery when a suitable mains or generator supply is available.

With a 2,000VA inverter capacity, up to 1,600W of continuous output power at 25°C and a maximum battery charging current of 80A, the MultiPlus Compact is suitable for a range of marine, motorhome, mobile and off-grid power applications.

The integrated 30A AC transfer switch automatically transfers between an external AC supply and inverter power. When the incoming supply fails, the inverter takes over automatically, helping maintain power to compatible connected equipment.

The MultiPlus Compact also incorporates PowerControl and PowerAssist. PowerControl helps manage battery-charger demand to avoid overloading a limited AC input supply. PowerAssist can supplement a limited shore-power or generator supply with battery power when the system is configured appropriately.

The VE.Bus communication interface supports integration with compatible Victron monitoring, configuration and control equipment. By combining inverter, charger and transfer-switch functions in one enclosure, the MultiPlus Compact helps simplify electrical system design and installation.

Key Features and Benefits

• 2,000VA inverter capacity: Provides AC power for appropriately rated electrical equipment.

• 1,600W continuous output at 25°C: Suitable for compatible appliances within the inverter's operating limits.

• 3,500W peak power: Provides additional short-duration power for suitable start-up loads.

• Pure sine wave output: Produces a smooth AC waveform for compatible electronic equipment and appliances.

• 12V battery system: Designed for compatible 12V DC battery installations.

• 80A battery charger: Provides a maximum charging current of 80A under specified conditions.

• 230V AC output: Suitable for compatible UK and European electrical equipment.

• 30A automatic transfer switch: Switches between incoming AC power and inverter power.

• UPS functionality: Automatically changes to inverter operation when the incoming AC supply fails.

• PowerControl: Helps manage AC input demand to reduce the risk of overloading a limited supply.

• PowerAssist: Can supplement a limited AC source with battery power when correctly configured.

• Adaptive battery charging: Supports intelligent charging management.

• VE.Bus communication: Enables integration with compatible Victron monitoring and control accessories.

• Compact design: Combines inverter, charger and transfer-switch functionality in a single enclosure.

Technical Specifications

• Manufacturer: Victron Energy

• Product range: MultiPlus Compact

• Model: MultiPlus Compact 12/2000/80-30 230V VE.Bus

• Manufacturer part number: CMP122200000

• Product type: Inverter charger

• Nominal battery voltage: 12V DC

• DC input voltage range: 9.5–17V DC

• Continuous apparent power at 25°C: 2,000VA

• Continuous output power at 25°C: 1,600W

• Peak power: 3,500W

• AC output voltage: 230V AC

• Output waveform: Pure sine wave

• Maximum battery charging current: 80A

• AC transfer switch rating: 30A

• PowerControl: Yes

• PowerAssist: Yes

• Communication interface: VE.Bus

• Battery connection: Screw terminals

• AC connection: Screw terminals

• Dimensions (H × W × D): Approximately 520 × 255 × 125mm

• Weight: Approximately 13kg

Ratings depend on operating conditions. The maximum charger current is not guaranteed in every installation. Check the manufacturer's datasheet for full specifications, connection requirements and operating limits.

Applications

The Victron Energy MultiPlus Compact 12/2000/80-30 is suitable for appropriately designed 12V electrical systems, including:

• Campervan and motorhome power installations

• Marine and boat electrical systems

• Off-grid cabins and standalone battery systems

• Backup power installations

• Remote sites using a 12V battery bank

• Mobile workshops and specialist vehicles

• Shore-power systems requiring battery charging and inverter backup

• Generator-supported installations

• Systems requiring automatic transfer between external AC and inverter power

Installation and Compatibility

The CMP122200000 is designed for compatible 12V DC battery systems and 230V AC installations. Before purchasing, check that the inverter's continuous output rating and peak capability are suitable for the intended appliances, including equipment with high start-up currents.

The 80A maximum charging current must be compatible with the battery manufacturer's recommended charging limits and the capacity of the battery bank. Correct battery cable sizing, DC protection, ventilation, earthing and AC circuit protection are essential for safe operation.

The 30A transfer-switch rating should be considered when designing the incoming AC supply and connected circuits. This rating describes the transfer switch and does not mean the inverter itself can continuously provide 30A from the battery.

The VE.Bus communication interface supports integration with compatible Victron monitoring, configuration and control accessories. Confirm compatibility and installation requirements before adding external equipment.

Installation and commissioning should be completed by a suitably qualified person in accordance with Victron Energy's instructions and applicable electrical regulations.

Product Identification

• Brand: Victron Energy

• Product family: MultiPlus Compact inverter chargers

• Model designation: 12/2000/80-30 230V VE.Bus

• Part number: CMP122200000

• Battery voltage: 12V DC

• Inverter capacity: 2,000VA

• Continuous output: 1,600W at 25°C

• Battery charger: 80A maximum

• AC transfer switch: 30A

• AC output: 230V

The Victron Energy MultiPlus Compact CMP122200000 is a combined 12V inverter charger designed to deliver pure sine wave AC power, battery charging and automatic AC transfer for compatible marine, mobile and off-grid electrical systems.
