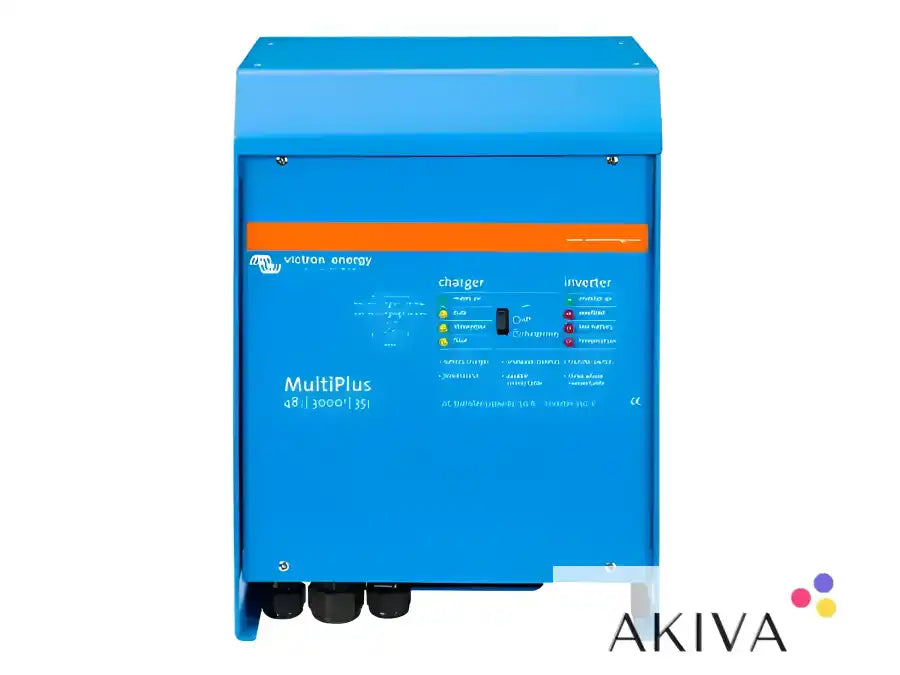

Victron Energy MultiPlus 48/3000/35-50 VE.Bus Inverter Charger 230V – PMP483021010

Product Overview

The Victron Energy MultiPlus 48/3000/35-50 VE.Bus (PMP483021010) is a powerful, integrated inverter and battery charger designed for 48V battery systems. Combining a 3000VA pure sine wave inverter, a 35A battery charger and a 50A automatic AC transfer switch in one compact unit, it provides a versatile power management solution for off-grid installations, backup power systems, marine applications and battery-based energy storage.

The MultiPlus converts 48V DC battery power into 230V AC electricity when an external AC supply is unavailable. When mains or generator power is available, it can supply connected electrical loads while recharging the battery bank through its integrated adaptive battery charger.

Advanced PowerControl and PowerAssist technology help manage limited AC input power, reducing the risk of overloading a generator or shore power connection. Its automatic transfer switch allows the system to change to inverter power when the external AC supply is interrupted, helping maintain power to compatible connected equipment.

With VE.Bus communication, configurable charging parameters and support for compatible parallel and three-phase systems, the Victron MultiPlus 48/3000/35-50 is suitable for demanding residential, mobile, marine and professional energy installations.

Key Features and Benefits

The Victron Energy MultiPlus 48/3000/35-50 combines inverter, battery charging and AC transfer functions in a single integrated unit. Its pure sine wave inverter provides a 230V AC output, with a continuous apparent power rating of 3000VA and continuous active power of 2400W at 25°C. A peak power capability of 6000W helps accommodate certain short-duration starting surges.

The integrated 35A battery charger supports controlled recharging of compatible 48V battery banks. The 50A AC transfer switch manages the changeover between a suitable external AC supply and inverter operation.

PowerControl allows the AC input current limit to be configured to suit the available supply, while PowerAssist can supplement a limited mains, generator or shore power connection using battery energy when additional power is required. UPS functionality helps compatible equipment continue operating through brief interruptions to the external AC supply.

The MultiPlus also features a dedicated auxiliary AC output rated up to 16A under suitable operating conditions. This output can be used to prioritise selected equipment when an external AC source is available. VE.Bus communication supports configuration and integration with compatible Victron equipment, while the programmable relay and remote on/off facility provide additional control options.

Technical Specifications

Manufacturer: Victron Energy. Product range: MultiPlus inverter/charger. Model: MultiPlus 48/3000/35-50. Manufacturer part number: PMP483021010. Product type: Combined inverter, battery charger and AC transfer switch.

The nominal battery voltage is 48V DC, with a DC input voltage range of 38–66V DC. The AC output is 230V AC ±2%, with a standard output frequency of 50Hz ±0.1%, adjustable to 60Hz.

The inverter has a continuous apparent power rating of 3000VA and a continuous active power rating of 2400W at 25°C. Continuous active power is rated at 2200W at 40°C and 1700W at 65°C. Peak power is 6000W, and maximum efficiency is approximately 95%.

Typical DC power consumption is approximately 25W at no load, 20W in AES mode and 12W in search mode. The AC input voltage range is 187–265V AC, with an input frequency range of 45–65Hz.

The integrated battery charger provides a maximum charging current of 35A. The specified battery charging voltages are 57.6V DC for absorption, 55.2V DC for float and 52.8V DC for storage. Charging settings should be configured to suit the battery chemistry and the battery manufacturer's recommendations.

The maximum AC transfer current is 50A. The auxiliary AC output supports loads up to 16A, subject to operating conditions. Communication is provided through the VE.Bus interface, and the unit includes a programmable relay, remote on/off support and a battery temperature sensor.

The enclosure has an IP21 protection rating. The specified operating temperature range is -40°C to +65°C, with output derating at higher temperatures. Approximate dimensions are 362 × 258 × 218 mm (H × W × D), and the unit weighs approximately 18kg. It is designed for stationary installations or suitably secured mobile installations.

Usage and Applications

The Victron MultiPlus 48/3000/35-50 is designed for electrical systems that require dependable AC power alongside controlled battery charging. Combining several essential power management functions in one unit can simplify compatible system designs and reduce the need for separate inverter, charger and transfer switch equipment.

In off-grid solar installations, the MultiPlus converts stored energy from a 48V battery bank into 230V AC electricity for compatible appliances and equipment. When a suitable mains or generator supply is available, the integrated charger can recharge the battery bank.

For residential backup power, the automatic transfer function helps maintain the supply to selected loads when the external AC source fails, provided the system is correctly configured and sufficient battery energy is available.

In marine and boating installations, the MultiPlus can provide 230V AC power aboard suitably equipped vessels, with battery charging from a compatible shore power connection or generator. It can also form part of larger campervan and specialist vehicle electrical systems when installed with appropriate equipment and protection.

The unit is suitable for compatible renewable energy storage systems, remote properties and commercial backup installations where a 48V battery system is required. Its 2400W continuous active power rating at 25°C supports a wide range of electrical loads, while its 6000W peak capability can accommodate certain brief surges. Actual suitability depends on the equipment being powered, starting currents, operating temperature, battery capacity and system design.

Pure Sine Wave Inverter Technology

The integrated inverter converts 48V DC battery power into 230V AC electricity using pure sine wave technology. This provides an AC waveform suitable for many compatible electrical appliances, electronics and other equipment that require a stable mains-style supply.

The 3000VA rating represents apparent power, whereas the continuous active power rating is 2400W at 25°C. When selecting an inverter for a particular application, both the power requirements and the starting characteristics of connected equipment should be considered.

Integrated 35A Battery Charger

The built-in battery charger supplies up to 35A to a compatible 48V battery bank under specified operating conditions. Its adaptive charging system uses multiple charging stages to support appropriate battery recharging.

Absorption, float and storage voltages can be configured to suit supported battery types and the manufacturer's recommendations. Correct charging settings are particularly important for lithium battery installations, which require compatible charging parameters and appropriate battery management system integration.

50A Automatic AC Transfer Switch and UPS Functionality

The integrated 50A AC transfer switch manages the transfer between an external AC source and inverter operation. When a suitable mains or generator supply is present, AC power can be passed through to connected loads. If the external supply is interrupted or disconnected, the inverter can take over supplying designated loads, subject to system configuration and battery availability.

The main output provides UPS functionality, with a typical transfer time of less than 20 milliseconds. This can help compatible computers and electronic equipment continue operating during brief supply interruptions. However, uninterrupted operation cannot be guaranteed for every device or installation.

The 50A transfer switch rating refers to the AC transfer capability and does not mean that the inverter can continuously supply 50A from battery power. Inverter output remains limited by its rated power, available battery energy and operating conditions.

PowerControl and PowerAssist

PowerControl allows the MultiPlus to limit the AC input current to a configured maximum. This is useful when operating from a generator or shore power connection with limited capacity, helping prevent excessive demand on the available supply.

PowerAssist can supplement an insufficient external AC supply with energy from the battery through the inverter. This helps support temporary increases in electrical demand while respecting the configured input limit, within the capabilities of the inverter and battery system.

These features are particularly useful in marine installations, off-grid solar systems and properties where the available AC supply is restricted.

Auxiliary AC Output

The MultiPlus provides a second AC output for suitable auxiliary loads. This output is available when an external AC source is present and switches off when the unit is operating from inverter power.

This arrangement can help prioritise selected equipment and prevent non-essential loads from unnecessarily discharging the battery during a power interruption. The auxiliary output must be used within its specified rating and in accordance with the system design.

VE.Bus Communication and System Integration

The integrated VE.Bus communication interface allows the MultiPlus to be configured and integrated with compatible Victron Energy equipment. With suitable system components and configuration, multiple units can be arranged for parallel operation or three-phase applications.

Compatible monitoring and control equipment can provide access to system information, alarms and operating settings. Additional equipment may be required depending on the installation and monitoring requirements.

Battery Protection and Installation Requirements

The MultiPlus supports configurable battery charging and inverter operating parameters. Its supplied battery temperature sensor can help the charging system compensate for battery temperature where supported and correctly configured.

Appropriate battery protection, ventilation, correctly sized DC cabling, secure electrical connections and suitable overcurrent protection are essential. Lithium battery systems must use compatible charging arrangements and battery management systems.

Installation should be carried out by a suitably qualified person familiar with high-current DC systems and 230V AC electrical installations. Battery cables, DC fusing, AC circuit protection, earthing, neutral arrangements and transfer switching must be appropriate for the specific installation and applicable electrical requirements.

Before installation, confirm the required battery chemistry, charging profile, wiring arrangements and system compatibility. The published specifications are intended to support product identification and planning and should be checked against the manufacturer's current technical information for the intended application.

Why Choose Victron Energy?

Victron Energy is an established manufacturer of inverter/chargers, battery charging equipment and power management systems for marine, mobile, residential and commercial applications.

The MultiPlus range combines several important power management functions in one unit. With a 35A battery charger, 50A AC transfer switch, pure sine wave inverter, PowerControl, PowerAssist and VE.Bus communication, the PMP483021010 provides a flexible foundation for a professionally designed 48V energy system.

Product Summary

The Victron Energy MultiPlus 48/3000/35-50 230V VE.Bus Inverter Charger (PMP483021010) is an integrated inverter, battery charger and AC transfer switch designed for 48V battery systems. It provides 3000VA apparent power, 2400W continuous active power at 25°C, 6000W peak power and battery charging current up to 35A.

With pure sine wave AC output, UPS functionality, PowerControl, PowerAssist and support for compatible parallel and three-phase configurations, it is suitable for a wide range of off-grid solar, backup power, marine and other battery-based energy applications.

The PMP483021010 is designed for systems requiring 230V AC output. Confirm the required input and output voltages, battery charging profile, power requirements and installation conditions before selecting this model.
