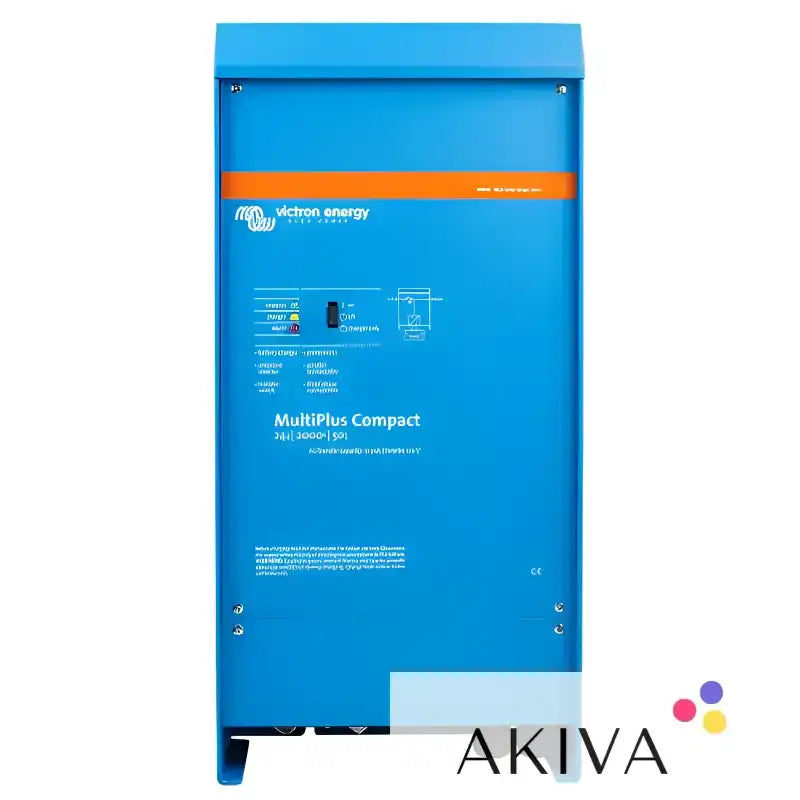

Victron Energy MultiPlus 24/2000/50-50 120V VE.Bus UL 458 Inverter/Charger – PMP242200102

Product Overview

The Victron Energy MultiPlus 24/2000/50-50 120V VE.Bus is a versatile inverter/charger designed for marine, mobile, off-grid and backup power systems using a 24V battery bank. Combining a pure sine wave inverter, an intelligent battery charger and an integrated automatic transfer switch, it provides reliable AC power and efficient battery charging in a single compact unit.

With a 2,000VA inverter rating, a 50A battery charger and a 50A transfer switch, the MultiPlus is designed to manage both incoming AC power and battery-powered operation. This model carries a UL 458 listing for applicable installations and is particularly suited to compatible 120V AC systems.

Applications and Usage

The MultiPlus 24/2000 is suitable for boats, yachts, recreational vehicles, motorhomes, commercial vehicles and off-grid installations that use a 24V battery system. It converts battery power into 120V AC electricity to operate compatible appliances, electronics, lighting and other electrical equipment within its rated capacity.

When connected to a suitable shore power or generator supply, the unit can pass AC power through to connected loads while charging the battery bank. If the external AC supply fails, the inverter automatically takes over, helping maintain power to connected equipment with minimal interruption.

Its compact integrated design can simplify installation by combining several essential power functions in one device.

Pure Sine Wave Inverter Performance

The built-in inverter produces a clean 120V AC pure sine wave output at 60Hz. This makes it suitable for many electronic devices, appliances and equipment that benefit from a stable AC supply.

The unit delivers up to 2,000VA of continuous apparent power, equivalent to 1,600W at 25°C under specified conditions. Its peak power capability of up to 3,500W helps accommodate brief starting surges from compatible motors and other demanding loads.

Actual performance depends on ambient temperature, battery condition, cable sizing and the characteristics of the connected equipment.

Intelligent Battery Charging

The integrated 50A battery charger provides a controlled charging process for a compatible 24V battery bank. Victron Energy's adaptive charging technology adjusts the charging cycle according to battery requirements and operating conditions.

The charging system supports configurable charging parameters for compatible battery types, including suitable lead-acid and lithium battery systems. Settings must be matched to the battery manufacturer's specifications, and lithium installations may require appropriate battery management system integration.

A separate 1A auxiliary charging output is provided for maintaining a suitable starter battery, where applicable.

PowerControl and PowerAssist

PowerControl helps prevent overloading a limited AC source by allowing the available input current to be configured. This is useful when operating from a generator or a shore power connection with a restricted current rating.

PowerAssist can supplement the available AC supply with energy from the battery when connected loads temporarily exceed the configured input limit. This helps accommodate short periods of higher demand without relying entirely on the external supply.

The MultiPlus also supports compatible parallel and three-phase configurations when correctly installed and configured with suitable units and system components.

Automatic Transfer Switch and UPS Function

The integrated 50A transfer switch automatically changes between external AC power and inverter operation when the incoming supply becomes unavailable. The fast transfer helps maintain power to compatible connected equipment, making the unit useful for applications where interruptions need to be minimised.

This functionality is particularly valuable in marine and mobile installations, where power may come from shore connections, generators or a battery bank.

Technical Information

The PMP242200102 is designed for a nominal 24V DC battery system, with an operating input voltage range of approximately 19–33V DC. Its AC output is 120V at 60Hz, with a continuous inverter rating of 2,000VA and 1,600W at 25°C. Continuous active power decreases as operating temperature rises, reaching approximately 1,400W at 40°C and 1,000W at 65°C.

The peak power rating is up to 3,500W, and maximum inverter efficiency is approximately 94%. The main battery charging output provides up to 50A, while the transfer switch is rated at 50A.

The AC input voltage range is approximately 95–140V. The absorption charging voltage is 28.8V, the float charging voltage is 27.6V and the storage charging voltage is 26.4V, subject to configuration and battery requirements.

The enclosure measures approximately 506 × 234 × 147mm and weighs around 15kg. The unit has an IP21 enclosure rating and uses M8 battery connections and screw-terminal AC connections.

VE.Bus Integration and Installation

The MultiPlus includes a VE.Bus communication interface for configuration and integration with compatible Victron Energy equipment. Depending on the installation, compatible monitoring and control devices can provide access to system status, operating settings and remote management features.

Installation requires correctly sized battery cables, suitable DC overcurrent protection, appropriate AC circuit protection, secure mounting and adequate ventilation. Cable sizing and protective devices must be selected according to the expected current, cable length, installation environment and applicable regulations.

This model is designed for 120V AC, 60Hz systems and is not a direct replacement for a 230V UK or European inverter/charger. Confirm the AC voltage, frequency, battery requirements and suitability for the intended installation before purchasing.

Product Summary

The Victron Energy MultiPlus 24/2000/50-50 120V VE.Bus UL 458 inverter/charger is an integrated power solution for compatible 24V marine, vehicle, off-grid and backup installations. Its pure sine wave inverter, 50A adaptive battery charger, 50A automatic transfer switch, PowerControl and PowerAssist functions provide flexible power management in a compact unit designed for dependable everyday operation.
