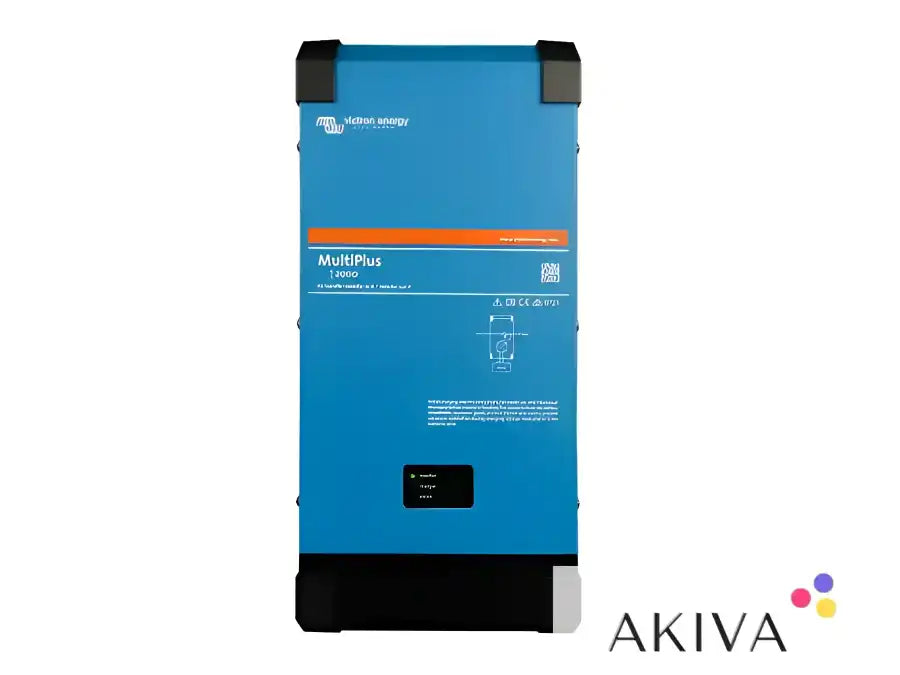

Victron Energy MultiPlus 24/2000/50-32 230V VE.Bus Inverter Charger – PMP242200000

Product Description

The Victron Energy MultiPlus 24/2000/50-32 230V VE.Bus is a powerful, integrated inverter and battery charger designed for reliable AC power in off-grid, marine, mobile and backup power systems. Combining a pure sine wave inverter with an adaptive 50A battery charger and a 32A AC transfer switch, it provides a practical all-in-one power solution for installations using a 24V battery bank.

With a continuous inverter rating of 2,000VA and a peak power capability of 3,500W, the MultiPlus can supply a wide range of electrical equipment. Its PowerControl and PowerAssist functions help manage limited AC supplies, such as shore power or a generator, by controlling battery charging and supplementing available input power when demand increases.

The built-in UPS function automatically switches to inverter power when the connected AC supply fails, helping keep compatible equipment operating with minimal interruption. The MultiPlus also supports parallel operation and three-phase system configurations, offering flexibility for larger or more demanding installations.

VE.Bus connectivity enables integration with compatible Victron monitoring, control and system-management equipment. The MultiPlus is suitable for professionally designed 24V energy systems in boats, motorhomes, commercial vehicles, remote properties and other applications where dependable 230V AC power is required.

Key Features and Benefits

• Combined inverter and battery charger: Integrates inverter and charger functions in one unit.

• 24V DC battery system: Designed for compatible 24V battery-bank installations.

• 2,000VA inverter output: Provides 230V AC pure sine wave power.

• 3,500W peak power: Supports short-duration higher power demands within the unit's operating limits.

• 50A battery charger: Charges the service battery bank from a suitable AC source.

• 32A transfer switch: Automatically switches between available AC input and inverter power.

• PowerControl: Helps prevent overloading a limited shore power or generator supply by regulating charger demand.

• PowerAssist: Can supplement limited AC input power with energy from the battery.

• UPS functionality: Automatically transfers connected loads to inverter power when AC input is interrupted.

• VE.Bus communications: Allows integration with compatible Victron control and monitoring equipment.

• System expansion: Supports parallel operation and compatible three-phase configurations.

• Adaptive charging: Helps optimise the battery-charging process for supported battery systems.

Technical Specifications

• Manufacturer: Victron Energy

• Product range: MultiPlus

• Model: MultiPlus 24/2000/50-32

• Manufacturer part number: PMP242200000

• Product type: Inverter charger

• DC battery voltage: 24V

• DC input voltage range: 19–33V

• Continuous inverter power at 25°C: 2,000VA / 1,600W

• Continuous inverter power at 40°C: 1,400W

• Continuous inverter power at 65°C: 1,000W

• Peak power: 3,500W

• AC output voltage: 230V AC ±2%

• Output frequency: 50Hz ±0.1%

• Maximum inverter efficiency: 94%

• Service battery charging current: 50A

• Starter battery charging current: 1A

• AC transfer switch rating: 32A

• AC input voltage range: 187–265V AC

• AC input frequency range: 45–65Hz

• Absorption charge voltage: 28.8V

• Float charge voltage: 27.6V

• Storage charge voltage: 26.4V

• Protection rating: IP21

• Battery connections: M8 bolts

• AC connections: Screw terminals

• Dimensions (H × W × D): approximately 506 × 236 × 147mm

• Weight: approximately 15.5kg

• Communications: VE.Bus

• Operating temperature: -40°C to +65°C, with fan-assisted cooling

Typical Applications

• Marine and boat electrical systems

• Motorhomes and campervans

• Off-grid cabins and remote properties

• 24V battery-based energy storage systems

• Backup power installations

• Generator and shore-power integration

• Commercial and specialist vehicle electrical systems

• Victron Energy systems requiring inverter, charger and AC transfer functionality

Installation and Compatibility

The MultiPlus 24/2000/50-32 is intended for use with a suitable 24V battery bank and a correctly designed AC installation. Battery capacity, cable sizing, DC fuse protection, ventilation and earthing arrangements must be selected in accordance with the manufacturer's installation instructions and the requirements of the complete system.

For the rated 2,000VA output, Victron's installation guidance lists a recommended battery capacity of 200–500Ah and a recommended 200A DC fuse for this 24V model. Actual requirements depend on cable length, installation conditions, battery characteristics and system design.

VE.Bus communication enables integration with compatible Victron devices. Check the system design and product documentation before connecting monitoring equipment, remote controls, lithium battery systems or other accessories.

Important: This is the standard MultiPlus 24/2000/50-32 230V model, manufacturer part number PMP242200000. It is not the similarly named MultiPlus Compact 24/2000 model. Please verify the model and part number against your existing equipment before ordering.

Product Identification

• Brand: Victron Energy

• Range: MultiPlus

• Model: 24/2000/50-32 230V VE.Bus

• Part number: PMP242200000

• Product category: Inverters and inverter chargers
