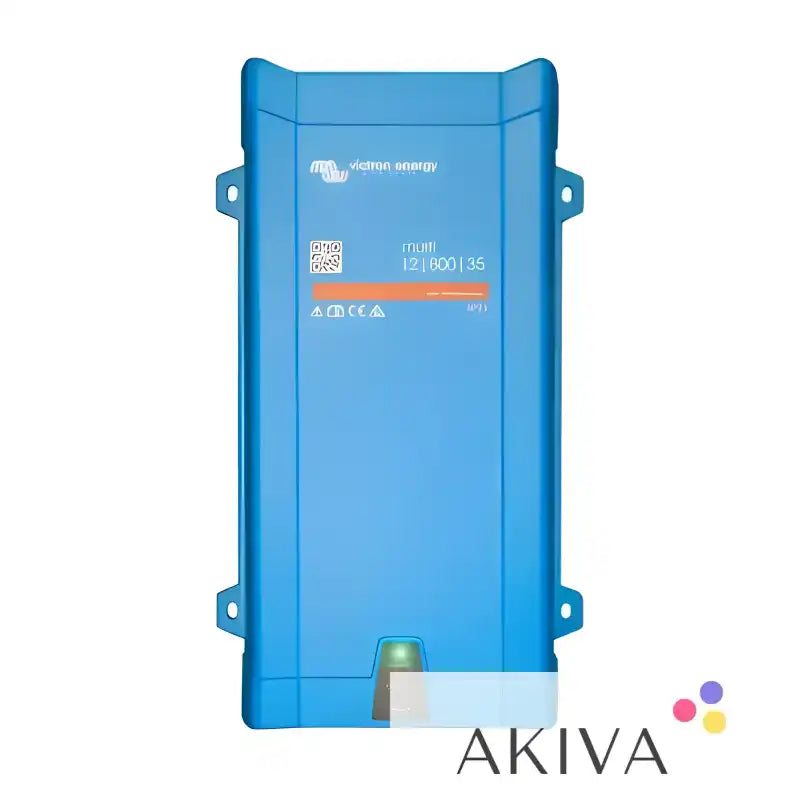

Victron Energy MultiPlus 12/800/35-16 230V VE.Bus Inverter Charger – PMP121800000

Product Description

The Victron Energy MultiPlus 12/800/35-16 230V VE.Bus Inverter Charger (PMP121800000) is a versatile all-in-one power solution that combines a pure sine wave inverter, an adaptive battery charger and an automatic AC transfer switch in one compact unit. Designed for 12V battery systems, it converts battery power into 230V AC electricity and charges the battery when a compatible mains or generator supply is available.

With an 800VA inverter rating, a maximum battery charging current of 35A and a 16A AC transfer switch, the Victron MultiPlus is ideal for suitably sized off-grid, marine, campervan, motorhome and backup power installations.

The pure sine wave inverter provides a clean AC output for compatible electrical equipment. When an external AC supply is available, the integrated charger manages battery charging, while the transfer switch automatically changes between external AC power and inverter power as required.

The built-in UPS function switches to inverter operation when the incoming AC supply is interrupted. Victron specifies a transfer time of less than 20 milliseconds, helping connected computers and other suitable electronic equipment continue operating with minimal disruption.

The MultiPlus also features VE.Bus communication for integration with compatible Victron monitoring and control equipment. Its combined design reduces the need for separate inverter, charger and transfer-switch components, helping simplify power-system installation.

Key Features and Benefits

• 800VA inverter capacity: Provides AC power for appropriately sized electrical loads.

• 700W continuous output at 25°C: Suitable for compatible appliances within the inverter's power limits.

• Pure sine wave output: Produces a smooth AC waveform for compatible electronic equipment and appliances.

• 12V battery compatibility: Designed for 12V DC battery installations.

• 35A battery charger: Provides a maximum charging current of 35A under specified operating conditions.

• 230V AC output: Suitable for compatible UK and European electrical equipment.

• 16A automatic transfer switch: Transfers between incoming AC power and inverter power.

• UPS functionality: Automatically activates the inverter when the incoming AC supply fails.

• Adaptive battery charging: Uses Victron's adaptive charging technology to manage the battery charging process.

• VE.Bus communication: Supports integration with compatible Victron system-control and monitoring accessories.

• Compact installation: Combines three power functions in a single enclosure.

• Victron Energy quality: Designed for reliable power conversion in mobile and stationary electrical systems.

Technical Specifications

• Manufacturer: Victron Energy

• Product range: MultiPlus

• Model: MultiPlus 12/800/35-16 230V VE.Bus

• Manufacturer part number: PMP121800000

• Product type: Inverter charger

• Nominal battery voltage: 12V DC

• Continuous apparent power at 25°C: 800VA

• Continuous output power at 25°C: 700W

• Peak power: 1,600W

• AC output voltage: 230V AC

• Output waveform: Pure sine wave

• Maximum battery charging current: 35A

• AC transfer switch rating: 16A

• Communication interface: VE.Bus

• VE.Bus connection: One RJ45 communication port

• Battery connection: Screw terminals, up to 25mm² (4 AWG)

• AC connection: G-ST18i plug

• Dimensions (H × W × D): 360 × 240 × 100mm

• Weight: Approximately 6.4kg

Power ratings depend on operating conditions. The continuous output rating quoted above is specified at 25°C; ambient temperature, battery voltage and load characteristics can affect performance.

Applications

The Victron Energy MultiPlus 12/800/35-16 is suitable for a range of 12V power applications, including:

• Campervan and motorhome electrical systems

• Marine and boat power installations

• Small off-grid battery systems

• Backup power for compatible electronic equipment

• Remote installations using a 12V battery bank

• Mobile workshops and specialist vehicles

• Battery-based systems requiring integrated AC power conversion and charging

Installation and Compatibility

The PMP121800000 is designed for compatible 12V DC battery systems and 230V AC installations. Before purchasing, confirm that the inverter's continuous power rating and peak capability are sufficient for the intended appliances, including any high start-up currents from motors, pumps or compressors.

Correct battery cable sizing, DC protection, ventilation, earthing and AC installation are essential for safe operation. The 35A maximum charging current should also be considered when selecting battery capacity and confirming compatibility with the battery manufacturer's charging requirements.

The VE.Bus interface allows the unit to work with compatible Victron communication, monitoring and control equipment. Check the relevant Victron documentation to confirm accessory compatibility and installation requirements for the intended system.

Installation and commissioning should be carried out by a suitably qualified person in accordance with the manufacturer's instructions and applicable electrical regulations.

Product Identification

• Brand: Victron Energy

• Product family: MultiPlus inverter chargers

• Model designation: 12/800/35-16 230V VE.Bus

• Part number: PMP121800000

• Battery voltage: 12V DC

• Inverter rating: 800VA

• Continuous output: 700W at 25°C

• Battery charger: 35A maximum

• AC transfer switch: 16A

The Victron Energy MultiPlus PMP121800000 is an integrated 12V inverter charger that combines pure sine wave AC power, battery charging and automatic AC transfer in one compact unit for suitable mobile, marine and off-grid installations.
