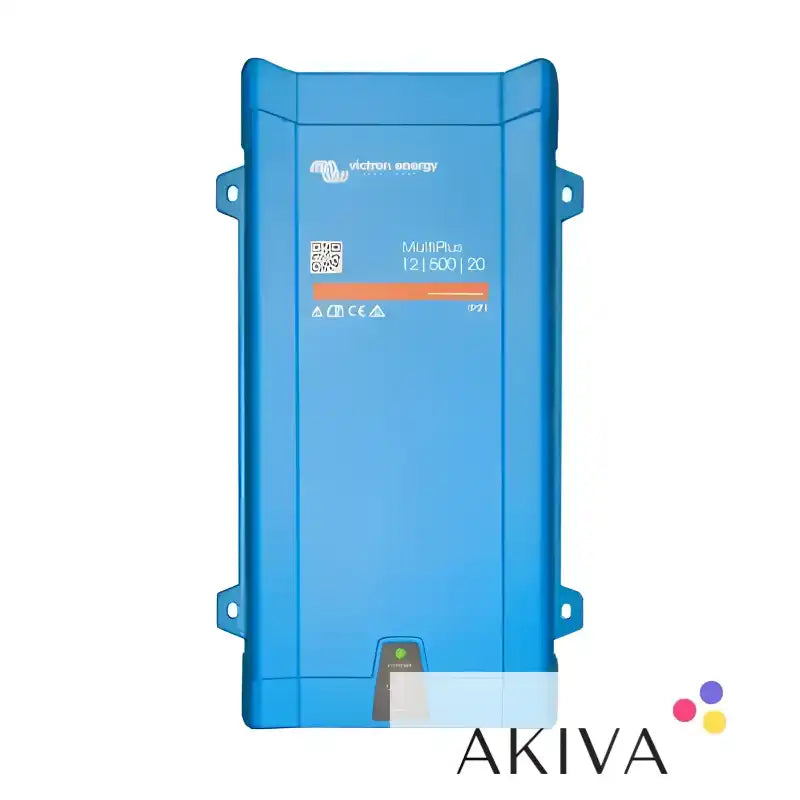

Victron Energy MultiPlus 12/500/20-16 230V VE.Bus Inverter Charger – PMP121500000

Product Description

The Victron Energy MultiPlus 12/500/20-16 230V VE.Bus Inverter Charger (PMP121500000) is a compact, integrated power solution combining a pure sine wave inverter, adaptive battery charger and automatic AC transfer switch in one unit. Designed for 12V battery systems, it converts DC battery power into reliable 230V AC electricity while also charging the battery when a suitable mains or generator supply is available.

With a 500VA inverter capacity, a maximum battery charging current of 20A and a 16A transfer switch, the Victron MultiPlus is suited to smaller off-grid installations, marine electrical systems, campervans, motorhomes and backup power applications where dependable AC power and efficient battery charging are required.

The built-in uninterruptible power supply (UPS) function automatically switches to inverter operation when the incoming AC supply fails. Its fast transfer time helps maintain power to connected equipment, while the VE.Bus communication interface supports integration with compatible Victron monitoring, configuration and system-control equipment.

The MultiPlus combines three essential power functions in one compact enclosure, helping simplify system design and installation while reducing the need for separate inverter, charger and transfer-switch components.

Key Features and Benefits

• Integrated inverter and charger: Combines a pure sine wave inverter, battery charger and AC transfer switch in one device.

• 12V battery system: Designed for compatible 12V DC battery installations.

• 500VA inverter capacity: Provides AC power for appropriately sized electrical loads.

• 20A battery charger: Delivers a maximum charging current of 20A, subject to operating conditions and configuration.

• 230V AC output: Suitable for compatible UK and European electrical equipment.

• 16A AC transfer switch: Automatically transfers between an available AC input and inverter power.

• UPS functionality: Switches to inverter power when the incoming AC supply is interrupted.

• Adaptive charging technology: Supports intelligent battery charging and helps manage the charging process.

• VE.Bus communication: Enables integration with compatible Victron system-control and monitoring accessories.

• Compact design: Measures approximately 311 × 182 × 100mm for installations where space is limited.

Technical Specifications

• Manufacturer: Victron Energy

• Product range: MultiPlus

• Model: MultiPlus 12/500/20-16 230V VE.Bus

• Manufacturer part number: PMP121500000

• Product type: Inverter charger

• Nominal battery voltage: 12V DC

• Continuous inverter apparent power at 25°C: 500VA

• Continuous inverter output power at 25°C: 430W

• Peak power: 900W

• AC output voltage: 230V AC

• Inverter waveform: Pure sine wave

• Maximum battery charging current: 20A

• AC transfer switch rating: 16A

• Communication interface: VE.Bus

• Battery connection: Screw terminals, suitable for cable up to 16mm² (6 AWG)

• AC connection: G-ST18i plug connection

• Dimensions (H × W × D): 311 × 182 × 100mm

• Weight: Approximately 4.4kg

Specifications are based on Victron Energy's published product information. Output capability can vary with temperature and operating conditions. Confirm the latest manufacturer's datasheet before installation.

Applications

The Victron MultiPlus 12/500/20-16 can be considered for a range of small-scale power systems, including:

• Campervan and motorhome electrical installations

• Marine and boat electrical systems

• Small off-grid battery systems

• Backup power for suitable low-power equipment

• Remote installations using a 12V battery bank

• Applications requiring combined inverter and battery-charging functionality

Installation and Compatibility

This model is intended for compatible 12V battery systems and 230V AC installations. Battery capacity, cable sizing, fusing, ventilation and expected electrical loads must be assessed as part of the system design.

Check the continuous wattage and start-up requirements of connected appliances before selecting an inverter. The 500VA rating is not suitable for every appliance, particularly equipment with high start-up currents or sustained power requirements.

VE.Bus accessories and monitoring equipment must be compatible with this particular MultiPlus model. Installation of the DC and AC connections should be completed by a suitably qualified installer in accordance with the manufacturer's instructions and applicable electrical regulations.

Product Identification

• Brand: Victron Energy

• Series: MultiPlus

• Model designation: 12/500/20-16 230V VE.Bus

• Part number: PMP121500000

• Battery system: 12V

• Inverter rating: 500VA

• Charger rating: 20A

• AC transfer switch: 16A

The Victron Energy MultiPlus PMP121500000 is an integrated inverter charger designed for compact 12V power systems where reliable AC conversion, battery charging and automatic AC transfer are required.
