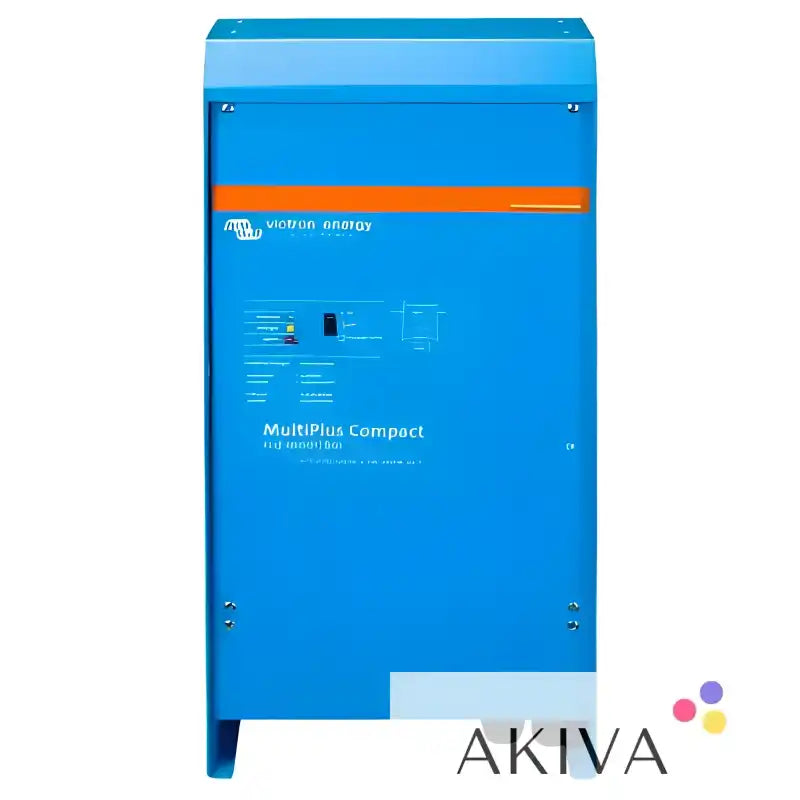

Victron Energy MultiPlus 12/2000/80-50 120V VE.Bus (UL 458) – PMP122200102
Victron Energy MultiPlus 12/2000/80-50 120V VE.Bus (UL 458) – PMP122200102
Couldn't load pickup availability
Product Overview
The Victron Energy MultiPlus 12/2000/80-50 120V VE.Bus is a powerful combined inverter and battery charger designed for 12V battery systems requiring reliable 120V AC power. Integrating a pure sine wave inverter, an adaptive 80A battery charger and a 50A automatic transfer switch, it provides a comprehensive power management solution for marine, recreational vehicle, mobile and off-grid installations.
The MultiPlus converts 12V DC battery power into clean 120V AC electricity for compatible appliances and equipment. When an external AC supply is available, it can power connected loads while recharging the battery bank. If shore power or generator power is interrupted, the unit automatically switches to inverter operation to help maintain the AC supply.
Featuring PowerControl, PowerAssist and VE.Bus communication, the MultiPlus can help manage limited external power supplies and integrate with compatible Victron Energy equipment for monitoring and system control.
Applications and Usage
The MultiPlus 12/2000/80-50 is designed for 12V power systems requiring substantial battery charging capability and dependable AC output. Typical applications include boats, motorhomes, recreational vehicles, campervans, cabins and off-grid installations designed around a 120V AC electrical supply.
With a 2000VA inverter rating and 1600W of continuous active power at 25°C, it can operate a range of compatible electrical appliances and equipment. The suitability of individual loads depends on their power consumption, starting current and the inverter's operating limits.
The integrated transfer switch automatically changes between an external AC source and inverter power. This is particularly useful for installations using shore power or generators, where the external supply may be limited or intermittently available.
Important: This is a 120V AC model intended for compatible electrical systems, not the standard 230V AC version commonly used in the UK. Confirm the required AC voltage, frequency and electrical certification before purchasing.
Pure Sine Wave Inverter
The integrated inverter produces a pure sine wave AC output suitable for a wide range of compatible electrical appliances and electronic equipment. It delivers up to 2000VA, equivalent to 1600W of continuous active power at 25°C, with peak power capability of up to 3500W.
The inverter operates from a nominal 12V DC battery supply, with an input voltage range of approximately 9.5–17V DC. The output is rated at 120V AC and 60Hz, making it suitable for equipment designed for this electrical standard.
Maximum inverter efficiency is approximately 93%, helping reduce conversion losses during operation. Actual efficiency varies according to the load, battery voltage and operating conditions.
Adaptive 80A Battery Charger
The built-in adaptive battery charger delivers up to 80A of charging current to a compatible 12V house battery bank. Its multi-stage charging process is designed to recharge batteries efficiently while supporting appropriate absorption, float and storage charging stages.
When connected to a suitable external AC source, the MultiPlus can supply connected AC loads while charging the battery bank. A separate auxiliary output can also provide charging current to a starter battery, subject to the manufacturer's specified limits.
Charging settings must be matched to the battery chemistry and the battery manufacturer's recommendations. Correct battery capacity, cabling and protective devices are essential for safe and reliable operation.
PowerControl and PowerAssist
PowerControl helps prevent a limited external AC supply, such as a generator or shore-power connection, from becoming overloaded. When the available input current approaches its configured limit, the MultiPlus can reduce battery charging current to leave more capacity available for connected AC loads.
PowerAssist provides additional support by supplementing a limited external AC source with power from the battery through the inverter. This helps accommodate temporary increases in electrical demand without necessarily requiring a larger generator or shore-power connection.
These functions make the MultiPlus particularly useful in marine and mobile installations where available AC input power may be restricted.
Uninterruptible Power Supply Function
When external AC power fails or is disconnected, the MultiPlus automatically switches to inverter operation. The changeover typically takes less than 20 milliseconds, helping maintain power to compatible equipment and reduce disruption to computers and other sensitive electronics.
The effectiveness of this function depends on correct installation, battery condition, system configuration and the electrical characteristics of the connected loads.
VE.Bus Communication and System Integration
The VE.Bus communication interface allows the MultiPlus to communicate with compatible Victron Energy equipment. With suitable accessories and configuration, the unit can be integrated into systems supporting remote monitoring, configuration and control.
Compatible MultiPlus units can be configured for parallel operation or supported split-phase and three-phase arrangements, subject to the manufacturer's requirements. For remote monitoring, the system can be paired with a compatible GX device and configured for the available monitoring services.
Technical Specifications
Manufacturer: Victron Energy
Product model: MultiPlus 12/2000/80-50 120V VE.Bus
Manufacturer part number: PMP122200102
Product type: Inverter/charger
Compliance: UL 458
Nominal battery voltage: 12V DC
DC input voltage range: 9.5–17V DC
Inverter rating: 2000VA
Continuous active power at 25°C: 1600W
Continuous active power at 40°C: Approximately 1450W
Continuous active power at 65°C: Approximately 1100W
Peak power: 3500W
AC output voltage: 120V AC ±2%
Output frequency: 60Hz ±0.1%
Maximum battery charging current: 80A
Starter battery charging output: 1A maximum
AC input voltage range: 95–140V AC
AC input frequency range: 45–65Hz
AC transfer switch: 50A
Maximum efficiency: Approximately 93%
Zero-load power consumption: Approximately 10W
Search-mode power consumption: Approximately 3W
Battery absorption voltage for the standard lead-acid profile: 14.4V
Battery float voltage: 13.8V
Battery storage voltage: 13.2V
Protection rating: IP22
Communication interface: VE.Bus
Battery connections: M8 bolts
AC connections: Screw terminals, up to 13mm²
Dimensions (H × W × D): 506 × 234 × 147mm
Weight: Approximately 15kg
Installation and Compatibility
The MultiPlus 12/2000/80-50 is designed for compatible 12V battery systems and 120V AC installations. Before installation, confirm that the battery chemistry, charging requirements, AC voltage and frequency, external supply and connected loads are suitable for this model.
The unit should be mounted in a dry, adequately ventilated location with sufficient space for cooling and servicing. Battery cables, fuses, AC circuit protection, earthing arrangements and cable sizes must comply with the manufacturer's instructions and applicable electrical regulations.
For marine and vehicle installations, particular attention should be given to vibration, ventilation, cable routing and protection against electrical faults. Installation and commissioning should be carried out by a suitably qualified professional.
Product Summary
The Victron Energy MultiPlus 12/2000/80-50 120V VE.Bus (PMP122200102) combines a 2000VA pure sine wave inverter, 80A adaptive battery charger and 50A transfer switch in one integrated unit. With PowerControl, PowerAssist, automatic AC changeover and VE.Bus communication, it provides flexible inverter and charging functionality for compatible 12V marine, mobile, recreational and off-grid power systems.
