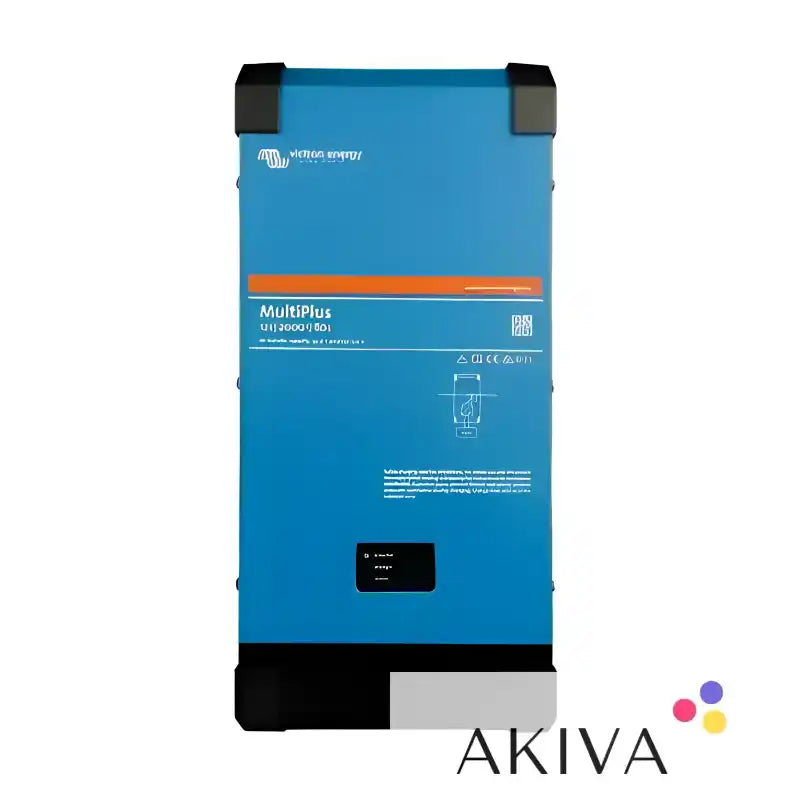

Victron Energy MultiPlus 12/2000/80-32 230V VE.Bus Inverter Charger – PMP122200000

Product Description

The Victron Energy MultiPlus 12/2000/80-32 230V VE.Bus Inverter Charger (PMP122200000) is an integrated power management solution combining a pure sine wave inverter, adaptive battery charger and automatic AC transfer switch in one unit. Designed for compatible 12V battery systems, it converts DC battery power into 230V AC electricity and charges the battery when a suitable mains or generator supply is available.

With a 2,000VA inverter capacity, up to 1,600W of continuous output power at 25°C and a maximum battery charging current of 80A, the MultiPlus is suitable for a wide range of marine, motorhome, mobile and off-grid power applications.

The integrated 32A transfer switch automatically transfers between incoming AC power and inverter power. If the external supply fails, the inverter takes over automatically. Victron specifies a transfer time of less than 20 milliseconds, helping compatible computers and electronic equipment continue operating with minimal disruption.

The MultiPlus includes PowerControl and PowerAssist technology. PowerControl helps manage battery-charging demand to avoid overloading a limited AC input supply. PowerAssist can supplement a limited shore-power or generator supply with energy from the battery when the system is configured appropriately.

The VE.Bus communication interface allows integration with compatible Victron monitoring, configuration and control equipment. By combining inverter, charger and transfer-switch functions in one enclosure, the MultiPlus helps simplify system design and installation.

Key Features and Benefits

• 2,000VA inverter capacity: Provides AC power for appropriately rated electrical equipment.

• 1,600W continuous output at 25°C: Suitable for compatible appliances within the inverter's operating limits.

• 3,500W peak power: Provides additional short-duration power for suitable start-up loads.

• Pure sine wave output: Delivers a smooth AC waveform for compatible electronics and appliances.

• 12V battery system: Designed for compatible 12V DC battery installations.

• 80A battery charger: Provides a maximum charging current of 80A under specified conditions.

• 230V AC output: Suitable for compatible UK and European electrical equipment.

• 32A automatic transfer switch: Switches between external AC power and inverter power.

• UPS functionality: Automatically activates inverter operation if the incoming AC supply fails.

• PowerControl: Helps manage AC input demand to reduce the risk of overloading a limited supply.

• PowerAssist: Can supplement a limited AC source using battery power when correctly configured.

• Adaptive battery charging: Supports intelligent battery charging management.

• VE.Bus communication: Enables integration with compatible Victron monitoring and control accessories.

• Integrated design: Combines inverter, charger and transfer-switch functionality in a single unit.

Technical Specifications

• Manufacturer: Victron Energy

• Product range: MultiPlus

• Model: MultiPlus 12/2000/80-32 230V VE.Bus

• Manufacturer part number: PMP122200000

• Product type: Inverter charger

• Nominal battery voltage: 12V DC

• DC input voltage range: 9.5–17V DC

• Continuous apparent power at 25°C: 2,000VA

• Continuous output power at 25°C: 1,600W

• Continuous output power at 40°C: 1,400W

• Continuous output power at 65°C: 1,000W

• Peak power: 3,500W

• AC output voltage: 230V AC ±2%

• Output frequency: 50Hz ±0.1%

• Output waveform: Pure sine wave

• Maximum efficiency: 93%

• Maximum battery charging current: 80A

• AC input voltage range: 187–265V AC

• AC input frequency range: 45–65Hz

• Absorption charge voltage: 14.4V

• Float charge voltage: 13.8V

• Storage charge voltage: 13.2V

• AC transfer switch rating: 32A

• PowerControl: Yes

• PowerAssist: Yes

• Communication interface: VE.Bus

• Battery connection: M8 bolt terminals

• AC connection: Screw terminals, up to 13mm² (6 AWG)

• Protection rating: IP21

• Cooling: Fan-assisted

• Operating temperature: -40°C to +65°C

• Maximum operating altitude: 2,000m

• Dimensions (H × W × D): 506 × 236 × 147mm

• Weight: Approximately 15.5kg

Electrical ratings depend on operating conditions. Continuous output decreases as ambient temperature rises. The maximum 80A charging current is specified for ambient temperatures up to 25°C; actual charging current also depends on battery voltage, configuration and system conditions.

Applications

The Victron Energy MultiPlus 12/2000/80-32 is suitable for appropriately designed 12V power systems, including:

• Campervan and motorhome electrical installations

• Marine and boat power systems

• Off-grid cabins and standalone battery installations

• Backup power systems

• Remote sites using a 12V battery bank

• Mobile workshops and specialist vehicles

• Shore-power systems requiring battery charging and inverter backup

• Generator-supported power installations

• Systems requiring automatic transfer between external AC and inverter power

Installation and Compatibility

The PMP122200000 is designed for compatible 12V DC battery systems and 230V AC installations. Before purchasing, confirm that the inverter's continuous output and peak power ratings meet the requirements of your intended appliances, including the start-up demands of motors, pumps, compressors and other inductive loads.

The 80A charging capacity must be compatible with the battery manufacturer's recommended charging current and the capacity of the battery bank. Correct battery cable sizing, DC protection, ventilation, earthing and AC circuit protection are essential for safe operation.

The 32A transfer-switch rating should be considered when designing the incoming AC supply and connected circuits. The transfer-switch rating does not mean the inverter itself can continuously supply 32A from battery power.

The VE.Bus communication interface supports integration with compatible Victron configuration, monitoring and control accessories. Confirm accessory compatibility and the manufacturer's installation requirements before ordering.

Installation and commissioning should be carried out by a suitably qualified person in accordance with Victron Energy's instructions and applicable electrical regulations.

Product Identification

• Brand: Victron Energy

• Product family: MultiPlus inverter chargers

• Model designation: 12/2000/80-32 230V VE.Bus

• Part number: PMP122200000

• Battery voltage: 12V DC

• Inverter capacity: 2,000VA

• Continuous output: 1,600W at 25°C

• Battery charger: 80A maximum

• AC transfer switch: 32A

• AC output: 230V

The Victron Energy MultiPlus PMP122200000 is an integrated 12V inverter charger combining pure sine wave AC power, high-current battery charging, automatic AC transfer and PowerAssist technology for compatible marine, mobile and off-grid power systems.
