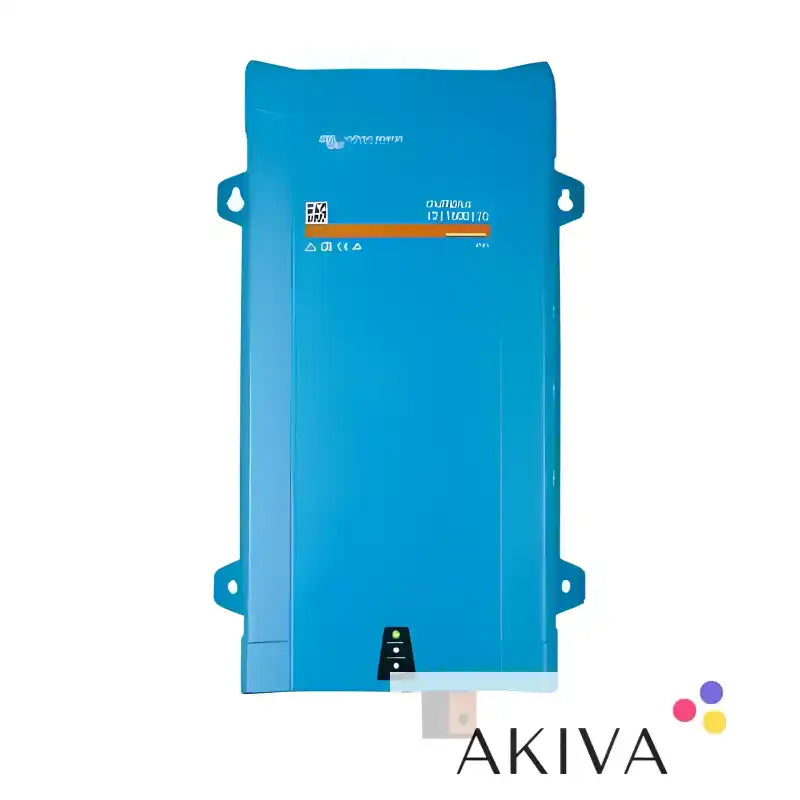

Victron Energy MultiPlus 12/1600/70-16 230V VE.Bus Inverter Charger – PMP122160000

Product Description

The Victron Energy MultiPlus 12/1600/70-16 230V VE.Bus Inverter Charger (PMP122160000) is a powerful, integrated power solution that combines a pure sine wave inverter, adaptive battery charger and automatic AC transfer switch in one unit. Designed for compatible 12V battery systems, it converts DC battery power into 230V AC electricity and recharges the battery when a suitable mains or generator supply is available.

With a 1,600VA inverter capacity, up to 1,300W of continuous output power at 25°C and a maximum battery charging current of 70A, the MultiPlus is suitable for a range of mobile, marine and off-grid installations requiring reliable AC power and efficient battery charging.

The integrated 16A AC transfer switch automatically changes between an available external AC supply and inverter power. If mains, shore or generator power is interrupted, the inverter takes over automatically. Victron specifies a transfer time of less than 20 milliseconds, helping compatible electronic equipment continue operating with minimal disruption.

The MultiPlus also features PowerControl and PowerAssist. PowerControl manages battery-charger demand to help prevent overloading a limited AC supply. PowerAssist can supplement a limited shore-power or generator supply with energy from the battery when the system is configured appropriately.

The VE.Bus communication interface enables integration with compatible Victron monitoring, configuration and control equipment. Combining three essential power functions in one enclosure helps simplify system design and installation.

Key Features and Benefits

• 1,600VA inverter capacity: Supplies AC power for appropriately rated electrical equipment.

• 1,300W continuous output at 25°C: Provides power for compatible appliances within the inverter's operating limits.

• 3,000W peak power: Offers additional short-duration power for suitable start-up loads.

• Pure sine wave output: Produces a smooth AC waveform for compatible electronics and appliances.

• 12V battery compatibility: Designed for compatible 12V DC battery systems.

• 70A battery charger: Provides a maximum charging current of 70A under specified conditions.

• 230V AC output: Suitable for compatible UK and European electrical equipment.

• 16A automatic transfer switch: Switches between external AC power and inverter power.

• UPS functionality: Automatically activates inverter operation if the incoming AC supply fails.

• PowerControl: Helps manage AC input demand to reduce the risk of overloading a limited supply.

• PowerAssist: Can supplement a limited AC source using battery power when correctly configured.

• Adaptive battery charging: Supports intelligent charging management.

• VE.Bus communication: Enables integration with compatible Victron monitoring and control accessories.

• Compact integrated design: Combines inverter, charger and transfer-switch functionality in one unit.

Technical Specifications

• Manufacturer: Victron Energy

• Product range: MultiPlus

• Model: MultiPlus 12/1600/70-16 230V VE.Bus

• Manufacturer part number: PMP122160000

• Product type: Inverter charger

• Nominal battery voltage: 12V DC

• Continuous apparent power at 25°C: 1,600VA

• Continuous output power at 25°C: 1,300W

• Peak power: 3,000W

• AC output voltage: 230V AC

• Output waveform: Pure sine wave

• Maximum battery charging current: 70A

• AC transfer switch rating: 16A

• PowerControl: Yes

• PowerAssist: Yes

• UPS function: Yes

• Communication interface: VE.Bus

• Battery connection: M8 bolt terminals

• AC connection: G-ST18i plug

• Dimensions (H × W × D): 465 × 270 × 120mm

• Weight: Approximately 10kg

Output power and charging performance depend on operating conditions, battery voltage and ambient temperature. Refer to the manufacturer's datasheet for complete electrical ratings, protection features and installation requirements.

Applications

The Victron Energy MultiPlus 12/1600/70-16 is suitable for appropriately designed 12V power installations, including:

• Campervan and motorhome electrical systems

• Marine and boat power installations

• Off-grid cabins and small standalone power systems

• Battery-backed AC power systems

• Remote installations using a 12V battery bank

• Mobile workshops and specialist vehicles

• Shore-power systems requiring battery charging and inverter backup

• Generator-supported installations

• Systems requiring automatic transfer between external AC and inverter power

Installation and Compatibility

The PMP122160000 is designed for compatible 12V DC battery systems and 230V AC installations. Before purchasing, check that the inverter's continuous output rating and peak capability are sufficient for the intended appliances, including any high start-up currents from motors, pumps or compressors.

The 70A maximum charging current must be compatible with the battery manufacturer's recommended charging limits and the capacity of the battery bank. Correct DC cable sizing, battery protection, ventilation, earthing and AC circuit protection are essential for safe operation.

The VE.Bus communication interface supports integration with compatible Victron configuration, monitoring and control equipment. Confirm accessory compatibility and the installation requirements for the intended system before ordering.

Installation and commissioning should be carried out by a suitably qualified person in accordance with Victron Energy's instructions and applicable electrical regulations.

Product Identification

• Brand: Victron Energy

• Product family: MultiPlus inverter chargers

• Model designation: 12/1600/70-16 230V VE.Bus

• Part number: PMP122160000

• Battery voltage: 12V DC

• Inverter capacity: 1,600VA

• Continuous output: 1,300W at 25°C

• Battery charger: 70A maximum

• AC transfer switch: 16A

• AC output: 230V

The Victron Energy MultiPlus PMP122160000 is an integrated 12V inverter charger combining pure sine wave AC power, high-current battery charging, automatic AC transfer and PowerAssist technology for compatible marine, mobile and off-grid power systems.
