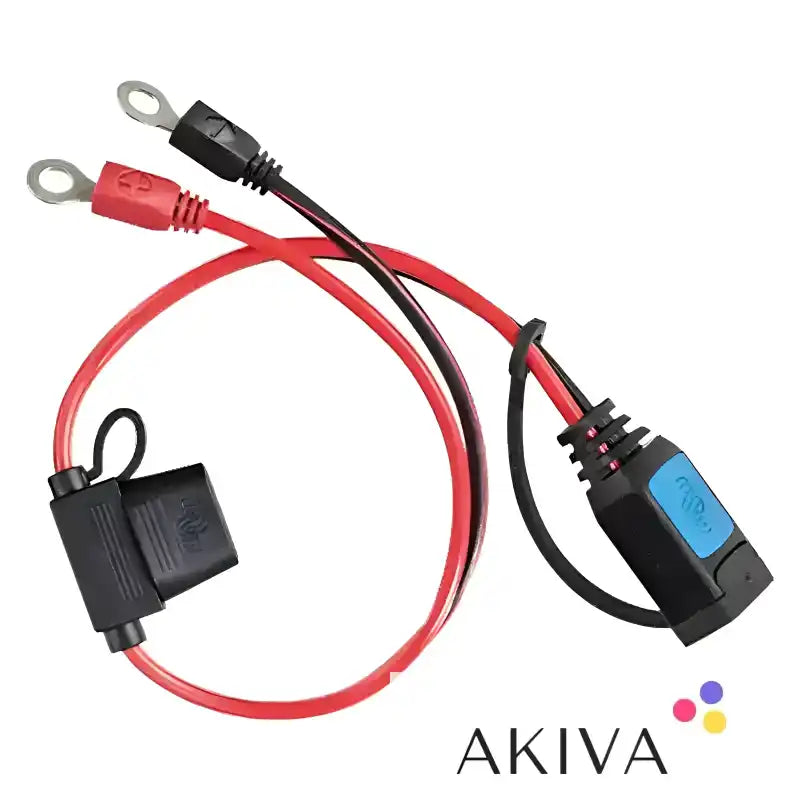

Victron Energy M6 Eyelet Connector with 30A ATO Fuse – BPC900100014

Product Overview

The Victron Energy M6 Eyelet Connector with 30A ATO Fuse (BPC900100014) is a battery connection accessory designed for use with compatible Victron Blue Smart IP65 and Blue Power IP65 battery chargers featuring a DC connector.

It provides a convenient and secure way to connect a battery charger to a battery using permanent M6 ring terminals. The eyelets can remain attached to the battery terminals, allowing the charger to be quickly connected or disconnected whenever required.

An integrated inline 30A ATO fuse provides additional circuit protection, making this accessory particularly useful for batteries installed in difficult-to-access locations.

M6 Battery Connection Design

The connector features M6 ring terminals designed to bolt directly onto compatible battery terminal connections. Once installed, the connection can remain in place, eliminating the need to repeatedly attach and remove battery clamps.

The charger-side connector allows quick connection to a compatible Victron charger, making routine battery charging and maintenance simpler and more convenient.

Integrated Fuse Protection

An inline 30A ATO blade fuse is incorporated into the positive cable to provide overcurrent protection. The fuse helps protect the connection and associated wiring against excessive current conditions.

Applications and Usage

The Victron M6 Eyelet Connector is suitable for automotive, marine, caravan, campervan, motorhome and leisure battery installations. It is particularly useful where batteries are mounted beneath seats, inside lockers, within engine compartments or in other confined spaces where conventional battery clamps are inconvenient.

It can be used as a replacement connection lead or as an additional charging connection for a compatible Victron Blue Smart IP65 battery charger.

Technical Specifications

The BPC900100014 features M6 ring terminals with an approximately 6.4mm eyelet opening. The cable is approximately 40cm long and has a cross-sectional area of 2mm², equivalent to 14 AWG.

The assembly includes an inline 30A ATO blade fuse and is designed for a maximum continuous current of approximately 20A. It connects to compatible Victron charger DC connectors.

Compatibility

Designed for compatible Victron Blue Smart IP65 and Blue Power IP65 battery chargers with interchangeable DC connection systems. This is the M6 eyelet version, rather than the M8 variant, so check the battery terminal bolt size before purchasing.

Product Summary

The Victron Energy BPC900100014 M6 Eyelet Connector provides a practical and reliable permanent battery connection for compatible Victron battery chargers. With M6 ring terminals, a quick-connect charger interface and an integrated 30A ATO fuse, it is an ideal accessory for convenient battery charging in vehicles, boats and leisure power installations.
