Product Overview

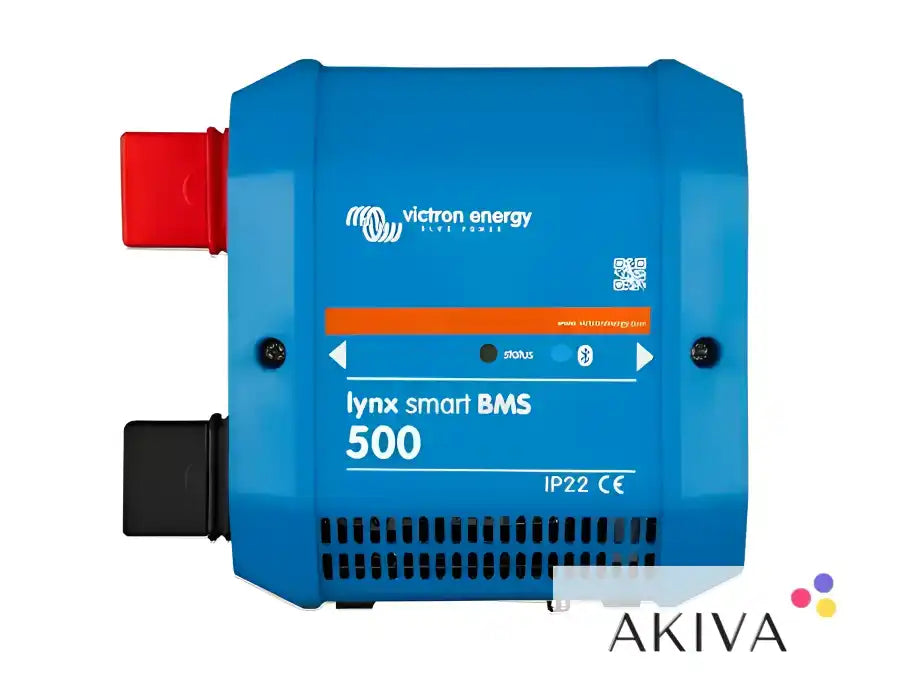

The Victron Energy Lynx Smart BMS NG 500A (M10) is an advanced battery management system designed specifically for Victron Lithium NG batteries. Combining intelligent battery monitoring, high-current protection, integrated switching and modular DC distribution, it provides comprehensive management for demanding lithium battery installations.
With a 500A continuous current rating and support for 12V, 24V and 48V battery systems, the Lynx Smart BMS NG is suitable for professional off-grid, marine, mobile and commercial energy storage applications.
The unit integrates a powerful safety contactor, battery monitoring, pre-charge circuitry and communication interfaces within Victron's modular Lynx distribution system. Bluetooth connectivity and VE.Can communication provide convenient access to battery information, configuration and system monitoring.
This version features M10 busbar connections and is designed to integrate with compatible M10 Lynx distribution components.
Designed for Victron Lithium NG Batteries
The Lynx Smart BMS NG is specifically developed for Victron Lithium NG batteries, which use lithium iron phosphate (LiFePO4) technology.
These batteries are available in nominal voltages of 12.8V, 25.6V and 51.2V and can be configured into compatible 12V, 24V and 48V battery systems.
The BMS monitors battery information, including individual cell voltages and temperatures, and manages charging and discharging permissions to help protect the battery bank. It supports systems containing up to 50 compatible Lithium NG batteries, subject to Victron's configuration requirements.
The system also supports parallel redundancy, allowing multiple Lynx Smart BMS units and their associated battery banks to operate together as a larger, redundant battery system.
Integrated 500A Safety Contactor
The integrated 500A safety contactor provides a high-current switching and protection mechanism for the battery system. It can disconnect the battery bank when required to protect against unsafe operating conditions and can also function as a remotely controlled main system switch.
The contactor is rated for 500A continuous current, with a peak rating of 600A for up to five minutes.
An integrated pre-charge circuit helps prevent high inrush currents when connecting capacitive loads, such as large inverters. This reduces the need for separate external pre-charging equipment and helps protect connected components.
Intelligent Battery Monitoring and Protection
The Lynx Smart BMS NG includes an integrated battery monitor providing real-time information about battery state of charge, voltage, current, historical data and operating status.
A pre-alarm function provides an early warning when battery conditions approach a protection threshold, giving the system an opportunity to respond before the BMS disconnects the battery bank.
Allow-to-charge and allow-to-discharge control connections communicate charging and discharging permissions to compatible equipment. When connected to a compatible Victron GX device, DVCC control can automatically manage compatible Victron inverter/chargers, solar charge controllers and DC-DC chargers.
The programmable relay can be configured for alarm functions or compatible alternator control. Its alternator ATC mode supports safe alternator disconnection before the battery is isolated.
Bluetooth, VE.Can and Remote Monitoring
Integrated Bluetooth allows configuration and monitoring through the VictronConnect app. Users can access important battery information and system settings directly from a compatible mobile device.
The VE.Can communication interface connects the BMS to compatible Victron GX devices, including the Cerbo GX and Ekrano GX. This enables local system monitoring and remote access through the Victron Remote Management (VRM) platform.
The system also supports NMEA 2000 integration for compatible marine installations using the appropriate VE.Can to NMEA 2000 interface cable.
The Lynx Smart BMS NG can monitor fuse status from up to four connected Lynx Distributor modules, helping identify blown fuses and providing additional visibility of the DC distribution system.
Modular Lynx DC Distribution
The Lynx Smart BMS NG is part of Victron's modular Lynx distribution family. It can be combined with compatible Lynx Power In and Lynx Distributor components to create an organised, high-current DC distribution system.
The integrated positive and negative busbars provide centralised connections for batteries, inverters, chargers and other DC equipment.
This version uses M10 busbar connections and is compatible with M10 Lynx distribution products. Its modular design makes it suitable for larger installations where reliable DC distribution, monitoring and battery protection are essential.
Technical Specifications
The Victron Energy Lynx Smart BMS NG 500A M10 has a nominal continuous current rating of 500A and a peak current rating of 600A for five minutes.
It supports 12V, 24V and 48V battery systems, with a battery voltage operating range of 9–60V DC and a maximum input voltage of 75V DC.
The integrated safety contactor provides 500A continuous switching capacity. The built-in pre-charge circuit supports a minimum load resistance of 10 ohms for 12V systems and 20 ohms for 24V and 48V systems.
Power consumption is approximately 0.3mA in off mode, 0.6W in standby mode and 2.6W in active mode, depending on relay status.
The auxiliary output is rated at 1.1A continuous and protected by a resettable fuse. The allow-to-charge and allow-to-discharge connections are each rated at 0.5A at 60V DC. The programmable SPDT alarm relay is rated at 2A at 60V DC.
Communication connections include Bluetooth, VE.Can using an RJ45 connector, removable multi-connector terminals for input and output signals, battery communication connections and an RJ10 connection for Lynx Distributor fuse monitoring.
The busbar connections are M10, with a recommended tightening torque of 33Nm. The busbars are manufactured from tinned copper and measure 8mm by 30mm.
The enclosure is manufactured from ABS plastic and has an IP22 protection rating. Dimensions are approximately 190mm high, 180mm wide and 80mm deep, with a weight of approximately 1.9kg.
The operating temperature range is -40°C to +60°C, with maximum non-condensing humidity of 95%.
Installation and Compatibility
The Lynx Smart BMS NG 500A M10 is designed specifically for Victron Lithium NG batteries. It should not be confused with the earlier Lynx Smart BMS, which is designed for Victron Lithium Battery Smart batteries.
It supports compatible 12V, 24V and 48V configurations, subject to the battery manufacturer's permitted series and parallel arrangements and Victron's system design requirements.
The M10 busbar connections must be used with compatible M10 Lynx distribution components. Correct cable sizing, system configuration and installation procedures are essential when working with high-current lithium battery systems.
For full system monitoring, the BMS can be connected to a compatible Victron GX device through VE.Can. Bluetooth configuration and monitoring are available through the VictronConnect app.
Installation should be carried out in accordance with Victron's instructions by a suitably qualified electrical installer.
Product Summary
The Victron Energy Lynx Smart BMS NG 500A M10 is a comprehensive battery management and protection solution for professional Victron Lithium NG installations. Combining a 500A safety contactor, integrated pre-charge circuit, intelligent battery monitoring, Bluetooth connectivity and VE.Can communication, it provides centralised control and protection for demanding 12V, 24V and 48V energy storage systems.
