Product Overview

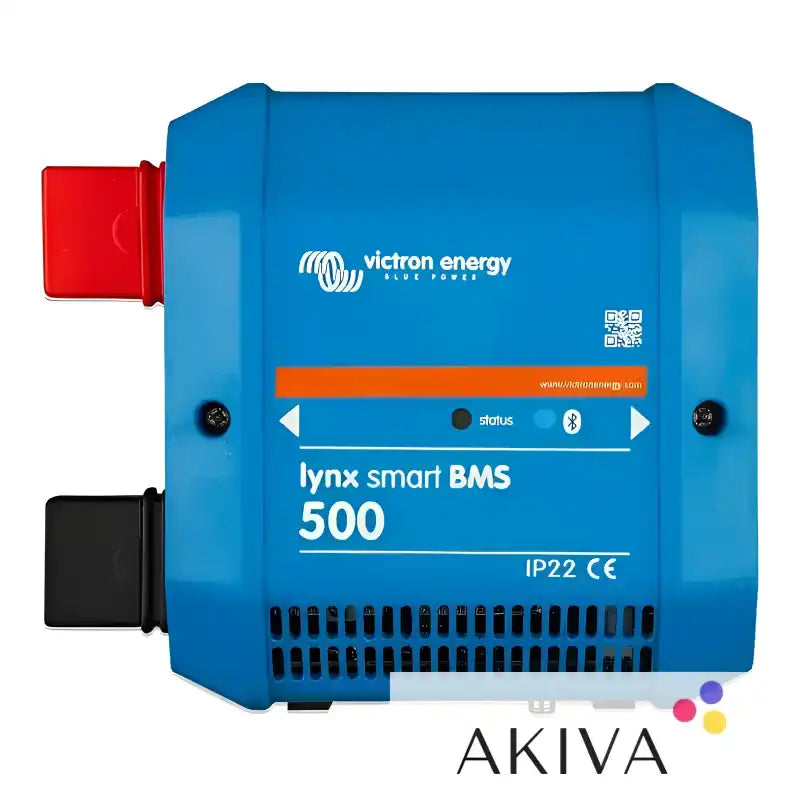

The Victron Energy Lynx Smart BMS 500 (M8) is an advanced battery management system designed specifically for Victron Lithium Smart batteries. Combining battery monitoring, protection, switching and DC busbar distribution in one modular unit, it provides centralised control for high-capacity lithium battery installations.
With a 500A continuous current rating and support for 12V, 24V and 48V battery systems, the Lynx Smart BMS is particularly suitable for demanding off-grid, marine, mobile and commercial energy storage applications.
The unit integrates a battery monitor, a high-current safety contactor and a negative busbar with an integrated shunt. It also provides Bluetooth connectivity for configuration and monitoring through the VictronConnect app, together with VE.Can communication for integration with compatible Victron GX monitoring devices.
This is the M8 connection version, designed for use with compatible M8 Lynx distribution components.
Intelligent Lithium Battery Management
The Lynx Smart BMS is designed to manage and protect Victron Lithium Smart battery banks. It monitors battery information and uses signals from the connected batteries to help protect the system against unsafe operating conditions.
The integrated battery monitor provides important information, including battery state of charge and system performance. This information can be viewed through VictronConnect or made available to a compatible GX device for local and remote monitoring.
A built-in pre-alarm function provides an early warning when a battery condition, such as a low cell voltage, may lead to the BMS disconnecting the system. This gives connected equipment or the system operator an opportunity to respond before a protective shutdown occurs.
Integrated 500A Safety Contactor
The Lynx Smart BMS incorporates a powerful 500A continuous-current safety contactor. This acts as a protective switching mechanism and can also be used as a remotely controlled main system switch.
If the battery management system detects a condition requiring the battery bank to be disconnected, the contactor can isolate the connected DC system. This provides an important layer of protection for lithium battery installations.
The contactor has a peak current rating of 600A for up to five minutes, making it suitable for demanding DC power systems when correctly designed and installed.
Bluetooth and GX Monitoring
Integrated Bluetooth connectivity allows the Lynx Smart BMS to be configured and monitored using the VictronConnect app. This provides convenient access to battery information and system settings without requiring a separate Bluetooth interface.
For more comprehensive energy system monitoring, the unit also includes a VE.Can communication connection. When connected to a compatible Victron GX device, such as a Cerbo GX, battery and system information can be monitored locally and remotely through the Victron Remote Management (VRM) platform.
The system also supports communication with compatible Lynx Distributor modules, allowing fuse status information to be monitored through the integrated distribution system.
Modular Lynx Distribution System
The Lynx Smart BMS forms part of Victron's modular Lynx DC distribution system. It can be combined with compatible Lynx Power In, Lynx Distributor and Lynx Shunt VE.Can modules to create a centralised high-current DC distribution arrangement.
The integrated positive and negative busbars help simplify the connection of batteries, inverters, chargers and other DC equipment. Its M8 connections allow it to be combined with compatible M8 Lynx components.
The modular design makes it easier to expand and organise larger battery installations while maintaining a clean, structured DC distribution layout.
Technical Specifications
The Victron Lynx Smart BMS 500 M8 has a nominal current rating of 500A continuous, with a peak current rating of 600A for five minutes.
It supports 12V, 24V and 48V battery systems, with a supply voltage range of 9–60V DC and a maximum input voltage of 75V DC.
The integrated main safety contactor provides high-current battery isolation. Power consumption is approximately 0.3mA in off mode, 0.6W in standby mode and 2.6W in active mode, depending on system voltage and relay status.
The pre-charge function supports a minimum load resistance of 10 ohms for 12V systems and 20 ohms for 24V and 48V systems.
The unit includes Bluetooth communication, a VE.Can connection using RJ45, battery communication connections, a removable multi-connector for input and output signals, and an RJ10 connection for Lynx Distributor fuse monitoring.
The integrated auxiliary output is rated at 1.1A continuous and is protected by a resettable fuse. The allow-to-charge and allow-to-discharge connections are rated at 0.5A at 60V DC and are also protected by resettable fuses.
The programmable alarm relay is an SPDT type rated at 2A at 60V DC. The busbar connections are M8, with a recommended tightening torque of 14Nm. The busbars are manufactured from tinned copper and measure 8mm by 30mm.
The enclosure is manufactured from ABS plastic and has an IP22 protection rating. Dimensions are approximately 190mm high, 180mm wide and 80mm deep, with a weight of approximately 1.9kg.
The operating temperature range is -40°C to +60°C, with maximum non-condensing humidity of 95%.
Installation and Compatibility
The Lynx Smart BMS 500 M8 is designed specifically for compatible Victron Lithium Smart batteries. It is not a general-purpose BMS for arbitrary lithium battery brands or standard lead-acid batteries.
It supports 12V, 24V and 48V configurations, subject to the battery manufacturer's permitted series and parallel arrangements and Victron's system design requirements.
The M8 busbar connections must be used with compatible M8 Lynx distribution components. Correct cable sizing, fuse selection, battery configuration and installation procedures are essential when working with high-current lithium battery systems.
For full system monitoring, the unit can be connected to a compatible Victron GX device through VE.Can. Bluetooth configuration and monitoring are available through the VictronConnect app.
The Lynx Smart BMS 500 M8 should not be confused with the newer Lynx Smart BMS NG, which is designed for Victron Lithium NG batteries. Battery compatibility must be checked before purchase and installation.
Product Summary
The Victron Energy Lynx Smart BMS 500 M8 is a sophisticated lithium battery management and DC distribution solution for professional energy storage systems. Combining a 500A safety contactor, integrated battery monitoring, Bluetooth connectivity, VE.Can communication and modular Lynx integration, it provides centralised protection and control for compatible Victron Lithium Smart battery installations.
