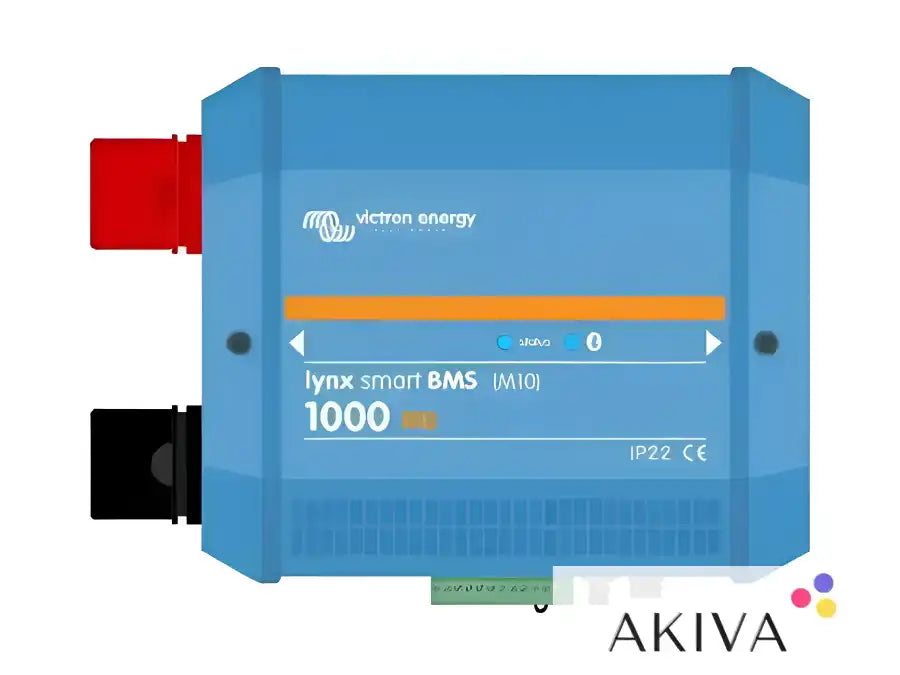

Victron Energy Lynx Smart BMS NG 1000A M10 – Lithium Battery Management System – LYN034170310

Victron Energy Lynx Smart BMS NG 1000A M10 – Lithium Battery Management System – LYN034170310

Regular price £663.00 GBP
Regular price £1,052.39 GBP Sale price £663.00 GBP
Sale Sold out
Taxes included. Shipping calculated at checkout.

Product Overview

The Victron Energy Lynx Smart BMS NG 1000A (M10) is a high-capacity battery management system specifically designed for Victron Lithium NG batteries. Combining intelligent battery monitoring, high-current protection, integrated switching and modular DC distribution, it provides comprehensive control for demanding lithium battery installations.

With a 1,000A continuous-current safety contactor and M10 busbar connections, this advanced BMS is designed for large 12V, 24V and 48V energy storage systems. It is particularly suitable for professional off-grid, marine, mobile and commercial power installations where reliable battery protection and high-current DC distribution are essential.

The Lynx Smart BMS NG integrates battery monitoring, a safety contactor, pre-charge circuitry and communication interfaces into Victron's modular Lynx distribution system. Bluetooth connectivity and VE.Can communication provide convenient configuration, monitoring and integration with compatible Victron equipment.

Designed for Victron Lithium NG Batteries

The Lynx Smart BMS NG is specifically developed for Victron Lithium NG batteries, which use lithium iron phosphate (LiFePO4) technology.

These batteries are available in nominal voltages of 12.8V, 25.6V and 51.2V and can be configured into compatible 12V, 24V and 48V battery systems.

The BMS monitors battery information, including individual cell voltages and temperatures, and manages charging and discharging permissions to help protect the battery bank.

A single system can support up to 50 compatible Lithium NG batteries, subject to Victron's configuration requirements. Multiple Lynx Smart BMS units can also be connected in parallel to create larger battery installations with redundancy, allowing separate battery banks to operate as a coordinated system.

Integrated 1,000A Safety Contactor

The integrated 1,000A safety contactor provides a powerful battery switching and protection mechanism. It acts as a secondary safety system, helping protect the battery installation if primary battery management controls fail.

The contactor is rated for 1,000A continuous current, with a peak current rating of 1,200A for up to five minutes.

It can also function as a remotely controlled main system switch, allowing the battery bank to be disconnected when required.

An integrated pre-charge circuit controls inrush current when connecting capacitive loads, such as large inverters. This helps protect connected equipment and removes the need for separate external pre-charging devices in suitable installations.

Intelligent Battery Monitoring and Protection

The Lynx Smart BMS NG includes an integrated battery monitor providing real-time information about battery state of charge, voltage, current, operating status and historical data.

Its pre-alarm function provides an early warning when battery conditions approach a protection threshold, such as a low cell voltage. This gives the system an opportunity to respond before the BMS disconnects the battery bank.

The Allow-to-Charge (ATC) and Allow-to-Discharge (ATD) connections communicate charging and discharging permissions to compatible equipment. When connected to a compatible Victron GX device, DVCC closed-loop control can automatically manage compatible Victron inverter/chargers, solar charge controllers and DC-DC chargers.

The programmable relay can be configured as an alarm relay or used for compatible alternator control. Its Alternator ATC mode helps ensure safe alternator disconnection before the battery system is isolated.

An auxiliary power output can also provide power to selected equipment, including a compatible GX device, following a BMS shutdown.

Bluetooth, VE.Can and Remote Monitoring

Integrated Bluetooth connectivity allows configuration and monitoring through the VictronConnect app. Users can access battery information, system settings and diagnostic information directly from a compatible mobile device.

The VE.Can communication interface connects the BMS to compatible Victron GX devices, including the Cerbo GX and Ekrano GX. This enables local system monitoring and remote access through the Victron Remote Management (VRM) platform.

For marine installations, the system also supports NMEA 2000 integration through a suitable VE.Can to NMEA 2000 interface cable.

The Lynx Smart BMS NG can monitor fuse status from up to four connected Lynx Distributor modules. This allows users to identify blown fuses through VictronConnect or a compatible GX monitoring device.

Modular Lynx DC Distribution

The Lynx Smart BMS NG forms part of Victron's modular Lynx distribution family. It can be combined with compatible Lynx Power In and Lynx Distributor components to create a structured, high-current DC distribution system.

Its integrated positive and negative busbars provide centralised connections for batteries, inverters, chargers and other DC equipment.

This 1000A version features M10 busbar connections and is compatible with Victron's M10 Lynx distribution products. The modular design makes it suitable for larger installations requiring organised DC connections, battery protection and system monitoring.

Technical Specifications

The Victron Energy Lynx Smart BMS NG 1000A M10 has a nominal continuous safety contactor rating of 1,000A and a peak current rating of 1,200A for five minutes.

It supports 12V, 24V and 48V battery systems, with a battery voltage operating range of 9–60V DC and a maximum input voltage of 75V DC.

The integrated pre-charge circuit supports a minimum load resistance of 10 ohms for 12V systems and 20 ohms for 24V and 48V systems.

Power consumption is approximately 0.3mA in off mode, 0.6W in standby mode and 4.2W in active mode, depending on the state of the relays.

The auxiliary output is rated at 1.1A continuous and protected by a resettable fuse. The Allow-to-Charge and Allow-to-Discharge connections are each rated at 0.5A at 60V DC. The programmable SPDT alarm relay is rated at 2A at 60V DC.

Communication connections include Bluetooth, VE.Can using RJ45, a removable 13-pin multi-connector with screw terminals, circular three-pole battery communication connections with M8 screw rings, and an RJ10 connection for Lynx Distributor fuse monitoring.

The positive and negative busbars use M10 connections, with a recommended tightening torque of 33Nm. The busbars are manufactured from tinned copper and measure 8mm by 30mm.

The enclosure is manufactured from ABS plastic and has an IP22 protection rating. Dimensions are approximately 230mm high, 180mm wide and 100mm deep, with a weight of approximately 2.7kg.

The operating temperature range is -40°C to +60°C, with maximum non-condensing humidity of 95%.

Installation and Compatibility

The Lynx Smart BMS NG 1000A M10 is designed specifically for Victron Lithium NG batteries. It is not intended for standard lead-acid batteries or the original Victron Lithium Smart battery range.

It supports compatible 12V, 24V and 48V configurations, subject to Victron's battery configuration and installation requirements.

The M10 busbar connections must be used with compatible M10 Lynx distribution components. Correct cable sizing, connection preparation, system configuration and installation procedures are essential when working with high-current lithium battery systems.

For full system monitoring, the BMS can be connected to a compatible Victron GX device through VE.Can. Bluetooth configuration and monitoring are available through the VictronConnect app.

Installation should be carried out in accordance with Victron's instructions by a suitably qualified installer experienced in high-current DC and lithium battery systems.

Product Summary

The Victron Energy Lynx Smart BMS NG 1000A M10 is a high-capacity battery management and protection solution for professional Victron Lithium NG installations. Combining a 1,000A safety contactor, integrated pre-charge circuit, intelligent battery monitoring, Bluetooth connectivity and VE.Can communication, it provides centralised control and protection for demanding 12V, 24V and 48V energy storage systems.

SKU:LYN034170310
