Victron

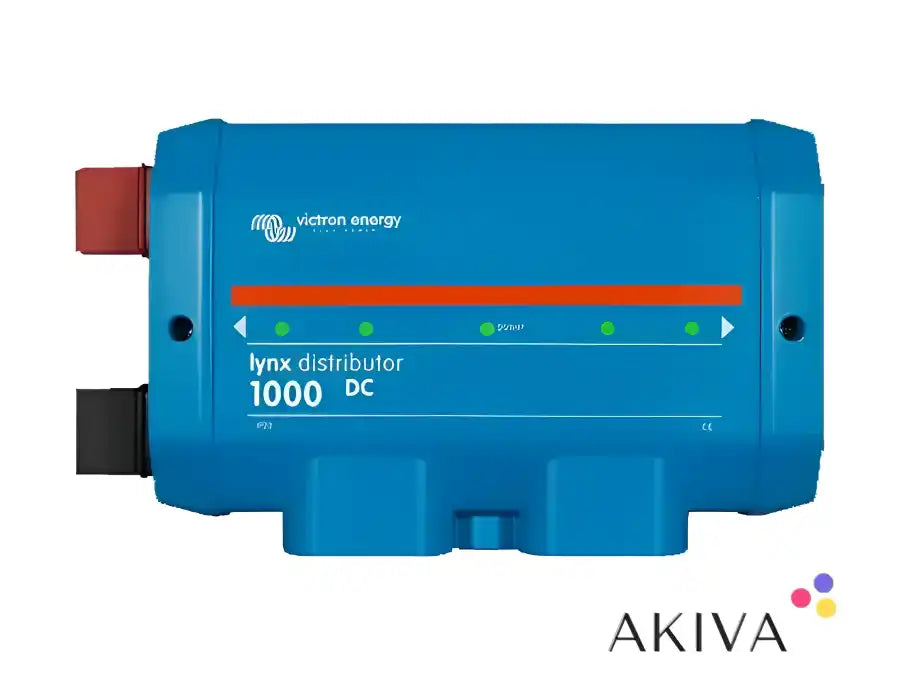

Victron Energy Lynx Distributor 1000A M10 – Modular DC Distribution System – LYN060102010

Victron Energy Lynx Distributor 1000A M10 – Modular DC Distribution System – LYN060102010

Regular price £146.66 GBP
Regular price £232.80 GBP Sale price £146.66 GBP
Sale Sold out
Taxes included. Shipping calculated at checkout.

Product Overview

The Victron Energy Lynx Distributor 1000A (M10) is a high-current DC distribution module designed to provide organised, protected power distribution within professional battery and energy storage systems.

Part of Victron's modular Lynx distribution system, it combines positive and negative busbars with four individual fused DC output connections. Each positive output is protected by a separate MEGA fuse, helping protect connected equipment and associated cabling against excessive current.

With a continuous current rating of 1,000A and compatibility with 12V, 24V and 48V DC installations, the Lynx Distributor is suitable for demanding off-grid, marine, campervan, motorhome and commercial electrical systems.

The M10 version features M10 main busbar connections and is designed to integrate with compatible M10 Lynx components.

Four-Way Fused DC Distribution

The Lynx Distributor provides four individual fused DC connections from a shared high-current busbar. This allows multiple electrical components to be connected to a centralised distribution point rather than requiring separate busbars and fuse holders.

Each positive connection has its own MEGA fuse position, allowing individual circuits to be protected according to the current requirements of the connected equipment and cable installation.

Typical applications include distributing DC power to inverters, DC-DC chargers, solar charge controllers, battery chargers and other high-current electrical equipment.

Important: The four MEGA fuses are not included and must be purchased separately. Fuse ratings should be selected to suit the connected equipment, cable capacity and system voltage.

Integrated Fuse Monitoring and LED Indicators

The Lynx Distributor includes individual LED indicators that provide visual information about the condition of the four fused circuits. When correctly powered, these indicators help identify a blown fuse quickly, making fault identification and maintenance easier.

The distributor can also communicate fuse-status information to a compatible Lynx Smart BMS, allowing fuse conditions to be monitored through VictronConnect or a compatible GX monitoring device.

The LED indicators receive their power through the connected Lynx Shunt VE.Can or Lynx Smart BMS. Full electronic fuse-status communication requires a compatible Lynx Smart BMS.

Modular Lynx Distribution System

The Lynx Distributor is designed to work alongside other components in Victron's modular Lynx range. It can be combined with Lynx Power In, Lynx Shunt VE.Can and Lynx Smart BMS modules to create a structured DC distribution and battery monitoring system.

The modular design allows multiple Lynx units to be connected together, making it easier to expand installations as additional batteries, inverters or DC equipment are introduced.

The integrated positive and negative busbars are manufactured from tinned copper, providing robust electrical connections for high-current applications.

Technical Specifications

The Victron Energy Lynx Distributor M10 has a continuous DC current rating of 1,000A and supports nominal 12V, 24V and 48V battery systems.

Its operating voltage range is 9–60V DC. The unit has four individual MEGA fuse positions, each using M8 fuse connections, while the main positive and negative busbar connections use M10 terminals.

The busbars are manufactured from tinned copper and measure 8mm × 30mm. The maximum electronic power consumption is approximately 100mA when all LED indicators are illuminated.

The unit includes a 40cm RJ10 communication cable for connection to compatible Lynx components. Power for the LED indicators is supplied through a compatible Lynx Shunt VE.Can or Lynx Smart BMS. Fuse-status data can be received by a Lynx Smart BMS.

The enclosure is manufactured from ABS plastic and has an IP22 protection rating. Dimensions are approximately 290mm high, 170mm wide and 80mm deep, with a weight of approximately 2.2kg.

The operating temperature range is -40°C to +60°C, with maximum non-condensing humidity of 95%.

Installation and Compatibility

The Lynx Distributor 1000A M10 is designed for use within compatible Victron Lynx DC distribution systems. It can be installed alongside Lynx Power In, Lynx Shunt VE.Can and Lynx Smart BMS components.

The M10 designation refers to the main busbar connection size. The four individual fuse connections use M8 fixings.

The supplied RJ10 cable is used for communication and power connections with compatible Lynx components. The RJ10 connection is not protected against reverse polarity, so correct cable orientation and connection are important.

MEGA fuses must be selected separately to suit the connected equipment, battery voltage and cable specifications. Appropriate battery protection and system isolation must also be incorporated into the installation.

The Lynx Distributor should be installed in accordance with Victron's instructions by a suitably qualified electrical installer experienced in high-current DC systems.

Product Summary

The Victron Energy Lynx Distributor 1000A M10 is a professional modular DC distribution solution designed for high-current battery and energy storage installations. Combining four individually fused DC circuits, integrated LED fuse indicators, tinned-copper busbars and compatibility with Victron's Lynx distribution range, it provides a neat and expandable approach to managing DC power.

SKU:LYN060102010
