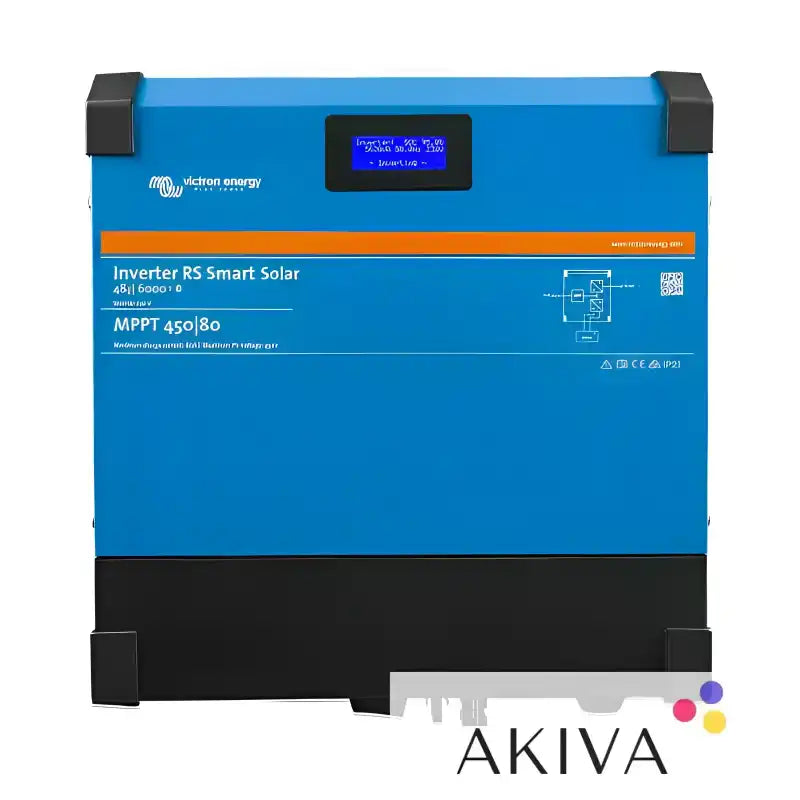

Inverter RS 48/6000 230V Smart Solar

Victron Energy Inverter RS 48/6000 230V Smart Solar – PIN482601000

The Victron Energy Inverter RS 48/6000 230V Smart Solar PIN482601000 is a next-generation high-efficiency pure sine wave inverter combined with a powerful integrated MPPT solar charger, designed for advanced off-grid, hybrid, marine, and industrial energy systems. Manufactured by Victron Energy, this all-in-one solution delivers exceptional performance, intelligent energy management, and lightweight high-frequency design for demanding modern installations where power density and system integration are critical.

This Inverter RS Smart Solar combines a 48V DC to 230V AC pure sine wave inverter with a high-voltage MPPT solar charger capable of handling a wide PV input range of approximately 80–450V DC. This allows long string solar array configurations, reducing cable losses and improving system efficiency. The integrated design eliminates the need for a separate MPPT controller, simplifying installation and reducing system complexity.

The PIN482601000 delivers up to 6000VA continuous output power (approximately 4500–5300W depending on conditions) with high peak surge capability, making it suitable for demanding loads such as refrigeration systems, pumps, compressors, power tools, HVAC systems, and full off-grid household electrical systems. The pure sine wave output ensures stable and safe operation for sensitive electronics and prevents issues associated with modified sine wave power.

Unlike traditional transformer-based inverters, this model uses advanced high-frequency technology, resulting in a significantly lighter and more compact unit while maintaining high efficiency and low standby consumption. This makes it particularly well suited to space- and weight-sensitive installations such as mobile systems, yachts, and modern off-grid solar builds.

This inverter includes built-in Bluetooth connectivity for configuration and monitoring via the VictronConnect app, allowing real-time access to system data such as battery status, solar input, load consumption, and inverter performance. It also includes advanced communication ports including VE.Can and VE.Direct for integration into Victron GX monitoring systems and full remote energy management setups.

Key Features

• Genuine Victron Energy all-in-one inverter and solar charger
• Part Number: PIN482601000
• 48V DC input with 230V AC pure sine wave output
• 6000VA continuous inverter output
• Integrated high-voltage MPPT solar charger (80–450V DC PV input)
• Up to 4kW solar charging capability
• High peak surge power for demanding loads
• Advanced high-frequency inverter design (lightweight and compact)
• Bluetooth Smart monitoring via VictronConnect
• VE.Can and VE.Direct communication ports
• Built-in display for system status monitoring
• Low standby power consumption
• High efficiency bidirectional energy conversion
• Remote on/off functionality
• Programmable relay output
• Battery temperature and voltage sensing support
• Suitable for professional off-grid and hybrid systems

The Inverter RS Smart Solar is engineered for maximum efficiency and system integration. Its bidirectional energy architecture allows it to intelligently manage energy flow between solar panels and the battery system, charging when excess solar power is available and supplying loads directly when required.

The high PV voltage input range allows longer solar string configurations, reducing installation complexity and improving system performance in larger solar arrays. The high-frequency design also ensures quiet operation and excellent energy conversion efficiency.

Technical Highlights

• 48V DC battery system voltage
• 230V AC output voltage
• 6000VA continuous output power
• 80–450V DC MPPT solar input range
• Up to 4000W solar charge capability
• Peak power approximately 9kW for short duration
• Pure sine wave output waveform
• Lightweight (approx. 11kg) high-frequency design
• VE.Can and VE.Direct communication interfaces
• Bluetooth Smart configuration and monitoring
• IP-rated industrial enclosure
• Advanced protection systems (overload, short circuit, thermal)

Victron Energy products are widely trusted across marine, automotive, renewable energy, and off-grid sectors due to their reliability, engineering quality, and long operational lifespan. The Inverter RS Smart Solar range is especially valued for combining high-power inverter capability with integrated solar charging and advanced digital system control in a single compact unit.

Ideal Applications

• Large off-grid solar power systems
• Hybrid residential energy systems
• Marine and yacht electrical installations
• Industrial remote power systems
• Mobile and expedition power setups
• High-demand appliance systems
• Backup and emergency power systems
• Telecommunications infrastructure
• Workshops and commercial off-grid sites
• Energy-efficient modern solar installations

The Victron Energy Inverter RS 48/6000 230V Smart Solar PIN482601000 delivers a powerful, efficient, and highly integrated energy solution for advanced 48V off-grid and hybrid systems. Combining high-output pure sine wave inversion, built-in MPPT solar charging, lightweight design, and intelligent system connectivity, it represents a premium solution for modern high-performance energy generation.
