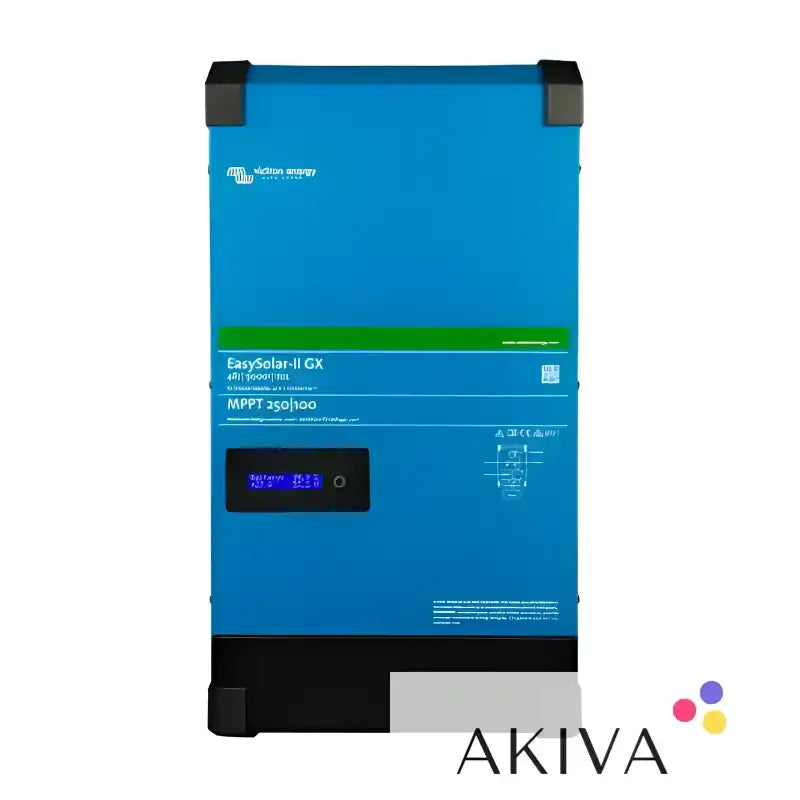

Victron Energy EasySolar-II 48/5000/70-50 MPPT 250/100 GX – PMP482507010

Product Overview

The Victron Energy EasySolar-II 48/5000/70-50 MPPT 250/100 GX is an integrated inverter, battery charger, solar charge controller and energy management system designed for advanced 48V power installations. Combining several essential components in a single enclosure, it simplifies system design, reduces installation wiring and provides centralised monitoring and control.

Featuring a 5000VA pure sine wave inverter, a 70A battery charger and a high-performance SmartSolar MPPT 250/100 solar charge controller, the EasySolar-II GX is suited to off-grid properties, residential solar energy systems, marine installations and other applications requiring reliable power conversion and efficient solar charging.

The integrated GX device connects the main components and provides system monitoring, configuration and communication capabilities, helping users manage energy production, battery charging and AC power consumption from one central platform.

Applications and Usage

The Victron Energy EasySolar-II is designed for 48V battery-based energy systems where solar generation, AC power conversion and battery charging need to work together. It can provide mains-quality AC power from a compatible battery bank while converting solar energy into usable battery charging current.

Typical applications include off-grid homes, cabins, workshops, remote buildings, solar-powered installations, marine electrical systems and backup power arrangements. It can also be incorporated into appropriately designed energy storage systems where compatibility with the wider installation has been confirmed.

The integrated MPPT controller continuously tracks the solar array's maximum power point to help maximise the energy harvested from available sunlight. The inverter converts DC battery power into 230V AC electricity for compatible household and commercial equipment, while the charger can recharge the battery bank from an external AC supply.

Inverter and Battery Charging

The integrated inverter provides a nominal output rating of 5000VA, equivalent to 4000W of continuous output power at 25°C, with peak power capability of up to 9000W. Its pure sine wave output is suitable for a wide range of electrical appliances and equipment, subject to their individual power requirements and the inverter's operating limits.

The built-in 70A battery charger supports controlled charging from an AC source. Together with the integrated inverter and transfer switch, it enables the system to manage the transition between available AC input power and inverter-supplied electricity.

The unit includes a 50A transfer switch and supports AC input currents of up to 50A. Correct circuit protection, cable sizing and installation design are essential to ensure safe operation within the ratings of the equipment and connected electrical system.

Integrated SmartSolar MPPT Charge Controller

The EasySolar-II GX incorporates a SmartSolar MPPT 250/100 solar charge controller. It accepts a solar array with a maximum PV open-circuit voltage of 250V and can provide solar battery charging current of up to 100A, subject to operating conditions and system limits.

Maximum power point tracking helps the controller adjust its operating point to extract available energy efficiently as sunlight and panel conditions change. The solar array must be designed so that its open-circuit voltage remains within the controller's permitted limits, including under low-temperature conditions.

GX Monitoring and Connectivity

The integrated GX device acts as the central communication and monitoring hub for the inverter, charger and solar controller. It supports system configuration and monitoring through compatible Victron interfaces and services.

Connectivity includes Ethernet, USB, VE.Direct and VE.Bus interfaces, along with a VE.Can interface for compatible equipment. Depending on the wider installation and network configuration, users can monitor system performance, review operating information and manage compatible devices through Victron's monitoring ecosystem.

Technical Specifications

Manufacturer: Victron Energy

Product model: EasySolar-II 48/5000/70-50 MPPT 250/100 GX

Manufacturer part number: PMP482507010

Battery system voltage: 48V DC

Inverter rating: 5000VA

Continuous active output power at 25°C: 4000W

Peak power: 9000W

AC output voltage: 230V AC

Battery charger current: 70A maximum

Integrated solar charge controller: SmartSolar MPPT 250/100

Maximum solar PV open-circuit voltage: 250V

Maximum solar charging current: 100A

AC transfer switch: 50A

Maximum AC input current: 50A

Maximum stated inverter efficiency: approximately 96%

Protection rating: IP21

Battery connections: M8 bolts

AC connections: Screw terminals, up to 16mm² (6 AWG)

Dimensions (H × W × D): 604 × 323 × 253mm

Weight: approximately 38.6kg

Installation and Compatibility

The EasySolar-II 48/5000/70-50 MPPT 250/100 GX is intended for correctly designed 48V battery systems. Before installation, confirm compatibility with the battery chemistry, battery management system, solar panel configuration, AC supply, earthing arrangements and the electrical loads being powered.

The solar array must be designed to remain within the MPPT controller's voltage and current limits. Battery and AC wiring must be correctly sized and protected, and the installation should provide adequate ventilation and suitable mounting support for the unit's weight.

Installation and commissioning should be carried out by a suitably qualified professional in accordance with the manufacturer's instructions and applicable electrical regulations.

Product Summary

The Victron Energy EasySolar-II 48/5000/70-50 MPPT 250/100 GX (PMP482507010) provides an integrated solution for 48V solar and battery power systems. By combining a 5000VA inverter, 70A battery charger, 100A MPPT solar controller and GX monitoring platform, it helps simplify installation while delivering flexible power conversion, solar charging and system management for demanding off-grid and energy storage applications.
