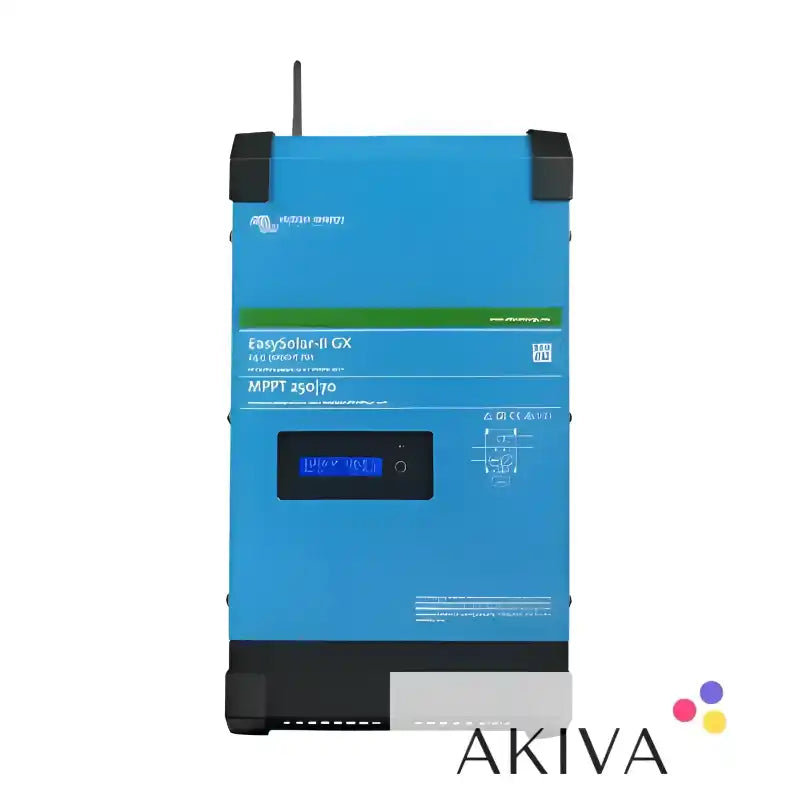

Victron Energy EasySolar-II 24/3000/70-32 MPPT 250/70 GX

Product Overview

The Victron Energy EasySolar-II 24/3000/70-32 MPPT 250/70 GX (PMP242307010) is an integrated solar power system that combines an inverter/charger, a high-performance solar charge controller and a GX monitoring device in a single enclosure. Designed for 24V battery systems, it provides a convenient all-in-one solution for off-grid solar installations, backup power, marine applications and mobile energy systems.

The EasySolar-II GX integrates a MultiPlus-II inverter/charger with a SmartSolar MPPT 250/70-Tr solar charge controller and a built-in GX device. By bringing these essential components together in one pre-wired unit, it simplifies system installation, reduces interconnecting cabling and helps streamline configuration and monitoring.

With a 3,000VA inverter, 70A battery charger and 70A solar charge controller, the EasySolar-II GX provides coordinated management of solar generation, battery storage and AC power. Its integrated monitoring capabilities allow users to check system performance locally and remotely using compatible devices and services.

Integrated Solar Power System

The EasySolar-II GX combines three essential functions within one compact enclosure.

The inverter/charger converts 24V DC battery power into 230V AC electricity and charges the battery bank when a suitable AC supply is available. The SmartSolar MPPT controller manages energy harvested from compatible solar panels, adjusting the operating point of the panels to maximise solar charging performance. The integrated GX device provides system monitoring, communication and control.

This integrated design reduces the need to install separate inverter, solar controller and monitoring units. It is particularly useful where installation space is limited or a coordinated Victron Energy system is preferred.

Pure Sine Wave Inverter and Battery Charger

The integrated MultiPlus-II inverter/charger delivers 3,000VA of continuous apparent power, equivalent to 2,400W at 25°C, with a peak power capability of 5,500W. Its pure sine wave 230V AC output is suitable for a wide range of compatible household appliances, electronics and electrical equipment.

When connected to an appropriate mains or generator supply, the integrated 70A battery charger recharges the connected 24V battery bank. PowerControl and PowerAssist help manage limited AC input capacity by controlling charging demand and supplementing the available supply with inverter power when required.

The built-in 32A transfer switch automatically transfers between inverter operation and an available AC input supply, helping maintain power to connected loads.

SmartSolar MPPT 250/70 Solar Charge Controller

The integrated SmartSolar MPPT 250/70-Tr solar charge controller manages the electricity generated by a compatible photovoltaic array and converts it into suitable charging power for the connected battery bank.

Maximum Power Point Tracking continually adjusts the solar operating point to help extract available energy from the panels as sunlight and operating conditions change.

The controller supports a maximum PV open-circuit voltage of 250V and a maximum charging current of 70A. The recommended maximum PV power for this 24V system is approximately 2,000W, subject to the manufacturer's requirements and the complete system design.

Correct solar-array configuration is essential. The combined open-circuit voltage of the panels, including the increase that occurs at low temperatures, must remain within the controller's permitted voltage limit.

Integrated GX Monitoring and Connectivity

The built-in GX device brings system information and communication functions together in the EasySolar-II GX. Its local display provides a convenient way to view important operating information, including battery, inverter and solar charging data.

Integrated Wi-Fi and network connectivity support system configuration and monitoring through compatible interfaces. The system can also connect with compatible Victron monitoring services for remote access to operating information, historical performance and alerts.

The integrated communication interfaces include VE.Bus, VE.Direct, Ethernet, USB and a BMS-Can connection for compatible managed battery systems. Equipment compatibility and the required communication configuration should be confirmed before installation.

PowerControl and PowerAssist

PowerControl allows the AC input current limit to be configured to suit the available mains or generator supply. This helps prevent a limited supply from being overloaded when battery charging and connected appliances are operating simultaneously.

PowerAssist provides additional flexibility by supplementing a restricted AC supply with power from the battery when demand temporarily exceeds the configured input limit. The system can also reduce battery charging demand to make more of the available AC power available to connected loads.

These functions make the EasySolar-II GX particularly useful for off-grid and backup systems operating from generators or restricted electrical supplies.

Applications and Usage

The Victron Energy EasySolar-II 24/3000/70-32 MPPT 250/70 GX is suitable for a range of renewable energy and backup power applications.

In off-grid properties, it can combine solar generation, battery storage and inverter power to provide 230V AC electricity without relying continuously on the grid. In residential and small commercial installations, it can support self-consumption and backup arrangements when integrated with a suitably designed battery and solar array.

For motorhomes, campervans and marine applications, the integrated design can reduce installation complexity where a compatible 24V electrical system is used. It can also support remote buildings and specialist installations requiring solar charging, battery storage and AC power in one coordinated unit.

The final application must account for the required AC load, solar-array output, battery chemistry, battery capacity and installation environment.

Technical Specifications

General Product Information

Brand: Victron Energy

Product range: EasySolar-II GX

Manufacturer part number: PMP242307010

Model designation: EasySolar-II 24/3000/70-32 MPPT 250/70 GX

System type: Integrated inverter/charger, MPPT solar charge controller and GX monitoring device

Nominal battery voltage: 24V DC

AC output voltage: 230V AC

Protection rating: IP21

Enclosure material: Aluminium

Enclosure colour: Blue

Inverter Specifications

Integrated inverter/charger: MultiPlus-II

Continuous apparent output power at 25°C: 3,000VA

Continuous active output power at 25°C: 2,400W

Continuous active output power at 40°C: 2,200W

Continuous active output power at 55°C: 1,700W

Peak power: 5,500W

Output waveform: Pure sine wave

AC output voltage: 230V AC ±2%

Output frequency: 50Hz ±0.1%, adjustable to 60Hz

Maximum inverter efficiency: 94%

DC input voltage range: 19–33V

Zero-load power: Approximately 13W

Zero-load power in AES mode: Approximately 9W

Zero-load power in Search mode: Approximately 3W

Battery Charger Specifications

Maximum battery charging current: 70A

AC input voltage range: 187–265V AC

AC input frequency range: 45–65Hz

Transfer switch rating: 32A

Maximum AC input current: 32A

Typical absorption voltage for a compatible 24V lead-acid battery: 28.8V

Typical float voltage: 27.6V

Typical storage voltage: 26.4V

Charging settings: Adjustable to suit compatible battery requirements

Battery temperature sensing: Supported with compatible equipment

Solar Charge Controller Specifications

Integrated controller: SmartSolar MPPT 250/70-Tr

Maximum PV open-circuit voltage: 250V

Maximum solar charging current: 70A

Recommended maximum PV power for a 24V battery system: Approximately 2,000W

Maximum controller efficiency: Up to 99%

Solar tracking technology: Maximum Power Point Tracking

PV voltage and array configuration: Must comply with the manufacturer's limits, including cold-weather open-circuit voltage

Connectivity and Monitoring

Integrated GX monitoring device: Yes

Local display: 2 × 16-character display

Wi-Fi: Integrated

Ethernet: Yes

USB interface: Yes

VE.Bus communication: Yes

VE.Direct communication: Yes

BMS-Can connection: Yes, for compatible managed battery systems

Remote monitoring: Supported through compatible Victron monitoring services

Remote on/off: Supported

Programmable relay: Yes

Physical Specifications

Dimensions (H × W × D): Approximately 499 × 268 × 237mm

Weight: Approximately 26kg

Cooling: Fan-assisted

Protection category: IP21

Operating environment: Install in a suitable, ventilated location and observe the manufacturer's specified temperature and humidity limits.

Specifications are provided as a guide and should be checked against the manufacturer's documentation for the exact model and hardware revision.

Installation and Compatibility

The EasySolar-II GX is designed for a compatible 24V battery system. Battery capacity, maximum charging current, discharge capability and battery-management requirements must be considered when designing the installation.

The solar array must be configured to remain within the controller's maximum PV voltage and power requirements. Appropriate DC and AC protection, isolation, cable sizing, earthing and ventilation are also essential.

The integrated GX device supports communication with compatible Victron equipment and managed battery systems. Confirm the specific battery communication protocol and required configuration before connecting a lithium battery or other externally managed battery system.

Installation and commissioning should be completed by a suitably qualified professional in accordance with the manufacturer's instructions and applicable electrical regulations.

Why Choose Victron Energy EasySolar-II GX?

Victron Energy is recognised for its inverter/chargers, solar charge controllers and integrated energy-management equipment. The EasySolar-II GX combines these functions in one enclosure, helping reduce wiring complexity while providing coordinated control of solar generation, battery charging and AC power.

Its 3,000VA inverter, 70A battery charger, 70A MPPT controller and integrated GX monitoring make it a practical option for compatible 24V solar installations where straightforward integration and system visibility are important.

Product Summary

The Victron Energy EasySolar-II 24/3000/70-32 MPPT 250/70 GX (PMP242307010) is an all-in-one solar inverter and battery-management system designed for 24V installations. Combining a 3,000VA pure sine wave inverter, 70A battery charger, SmartSolar MPPT 250/70 controller and integrated GX monitoring, it provides a coordinated solution for solar charging, battery storage and 230V AC power.

Suitable for appropriately designed off-grid, residential backup, marine and mobile energy systems, the EasySolar-II GX helps simplify installation while offering advanced power management and monitoring.
