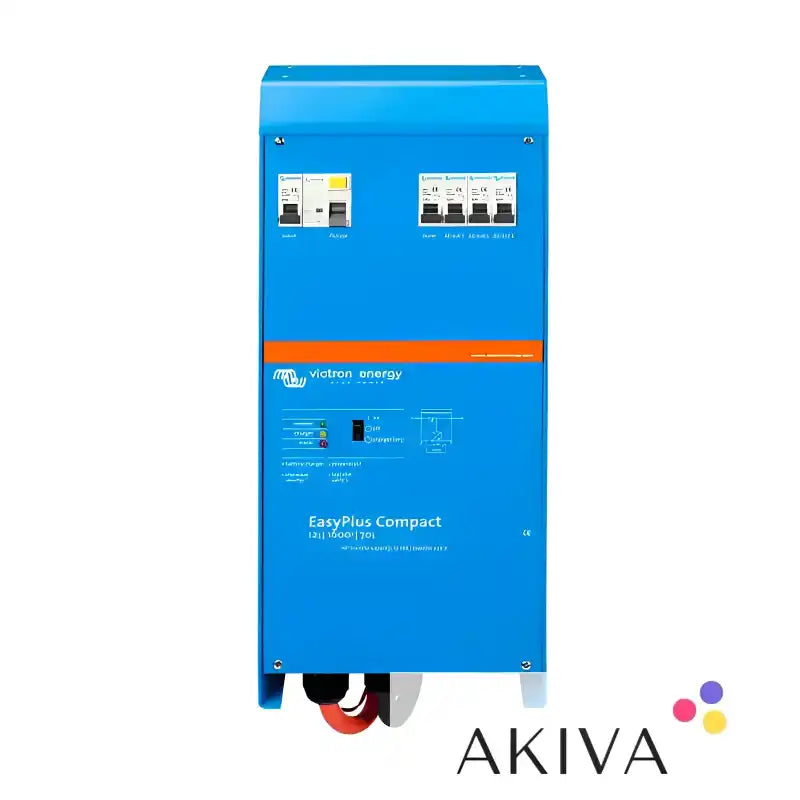

Victron Energy EasyPlus Compact 12/1600/70-16 230V VE.Bus Inverter Charger – CEP122160000
Product Description
The Victron Energy EasyPlus Compact 12/1600/70-16 230V VE.Bus (CEP122160000) is an integrated power management system designed to simplify 12V battery installations. It combines a pure sine wave inverter, sophisticated battery charger, high-speed AC transfer switch and AC distribution in one compact enclosure.
With a 1,600VA inverter capacity, up to 1,300W of continuous output power at 25°C and a maximum battery charging current of 70A, the EasyPlus Compact provides reliable AC power and battery charging for compatible marine, mobile and off-grid applications.
The integrated inverter converts 12V DC battery power into 230V AC electricity for compatible appliances and electrical equipment. When a suitable external AC supply is available, the built-in charger can recharge the battery, while the automatic transfer switch manages the changeover between incoming AC power and inverter output.
Unlike a standalone inverter charger, the EasyPlus also incorporates AC distribution, bringing several essential power-system components together in one enclosure. This helps reduce installation complexity, wiring requirements and the need for separate components.
The VE.Bus communication interface supports connection to compatible Victron monitoring, configuration and control accessories. Its integrated design makes the EasyPlus Compact a practical option for installations where space, straightforward installation and dependable power management are important.
Key Features and Benefits
-
Integrated power system: Combines an inverter, battery charger, AC transfer switch and AC distribution in one enclosure.
-
1,600VA inverter capacity: Supplies AC power for suitably rated electrical equipment.
-
1,300W continuous output at 25°C: Supports compatible appliances within the inverter's operating limits.
-
3,000W peak power: Provides additional short-duration power for suitable start-up loads.
-
Pure sine wave output: Produces a smooth AC waveform for compatible electronics and appliances.
-
12V battery system: Designed for compatible 12V DC battery installations.
-
70A battery charger: Provides a maximum battery charging current of 70A under specified operating conditions.
-
230V AC output: Suitable for compatible UK and European electrical equipment.
-
16A AC transfer switch: Automatically transfers between incoming AC power and inverter power.
-
Integrated AC distribution: Helps simplify installation by incorporating AC distribution into the unit.
-
VE.Bus communication: Supports integration with compatible Victron system-control and monitoring equipment.
-
Compact installation: Reduces the need to install multiple separate power-system components.
Technical Specifications
-
Manufacturer: Victron Energy
-
Product range: EasyPlus Compact
-
Model: EasyPlus Compact 12/1600/70-16 230V VE.Bus
-
Manufacturer part number: CEP122160000
-
Product type: Integrated inverter charger and AC distribution system
-
Nominal battery voltage: 12V DC
-
Continuous apparent power at 25°C: 1,600VA
-
Continuous output power at 25°C: 1,300W
-
Peak power: 3,000W
-
AC output voltage: 230V AC
-
Output waveform: Pure sine wave
-
Maximum battery charging current: 70A
-
AC transfer switch rating: 16A
-
AC distribution: Integrated
-
Communication interface: VE.Bus
-
VE.Bus connections: Two RJ45 terminals
-
Battery connection: Red and black battery cables, approximately 1.5m
-
AC connection: G-ST18i plug
-
Dimensions (H × W × D): 510 × 214 × 110mm
-
Weight: Approximately 11.7kg
The inverter's available continuous output power depends on operating conditions, including ambient temperature. Maximum charger current is subject to configuration, battery requirements and operating conditions. Refer to the manufacturer's documentation for full specifications and installation details.
Applications
The Victron Energy EasyPlus Compact is suitable for appropriately designed 12V electrical systems, including:
-
Campervan and motorhome power installations
-
Marine and boat electrical systems
-
Off-grid cabins and standalone battery systems
-
Backup power installations
-
Mobile and specialist vehicle applications
-
Installations requiring integrated AC distribution
-
Systems using an external AC supply to charge batteries
-
Applications where a combined inverter, charger and transfer switch can simplify installation
Installation and Compatibility
The CEP122160000 is designed for compatible 12V battery systems and 230V AC installations. Before purchasing, confirm that the inverter's continuous output and peak power ratings meet the requirements of the intended appliances, including equipment with high start-up currents.
The maximum 70A charging current must be compatible with the battery manufacturer's recommended charging limits and the capacity of the battery bank. Correct battery protection, cable sizing, ventilation, earthing and AC circuit protection are essential.
Because the EasyPlus includes AC distribution, installers should review the manufacturer's wiring diagrams and connection requirements when designing the system. Confirm the suitability of the incoming AC supply and connected circuits before installation.
The VE.Bus interface allows integration with compatible Victron configuration and monitoring accessories. Check the relevant documentation to establish compatibility with any additional equipment.
Installation and commissioning should be completed by a suitably qualified person in accordance with Victron Energy's instructions and applicable electrical regulations.
Product Identification
-
Brand: Victron Energy
-
Product family: EasyPlus Compact
-
Model designation: 12/1600/70-16 230V VE.Bus
-
Part number: CEP122160000
-
Battery voltage: 12V DC
-
Inverter capacity: 1,600VA
-
Continuous output: 1,300W at 25°C
-
Battery charger: 70A maximum
-
AC transfer switch: 16A
-
AC distribution: Integrated
-
AC output: 230V
The Victron Energy EasyPlus Compact CEP122160000 is an integrated 12V power solution combining pure sine wave AC conversion, battery charging, automatic AC transfer and AC distribution in one enclosure for compatible marine, mobile and off-grid installations.
